84.イメージセンサカメラ(1024用)(4400 10MHz)No.1(ｵﾌﾟｼｮﾝ)(QCA)
84.Image sensor camera (For 1024)(4400 10MHz)No.1(Option)(QCA)

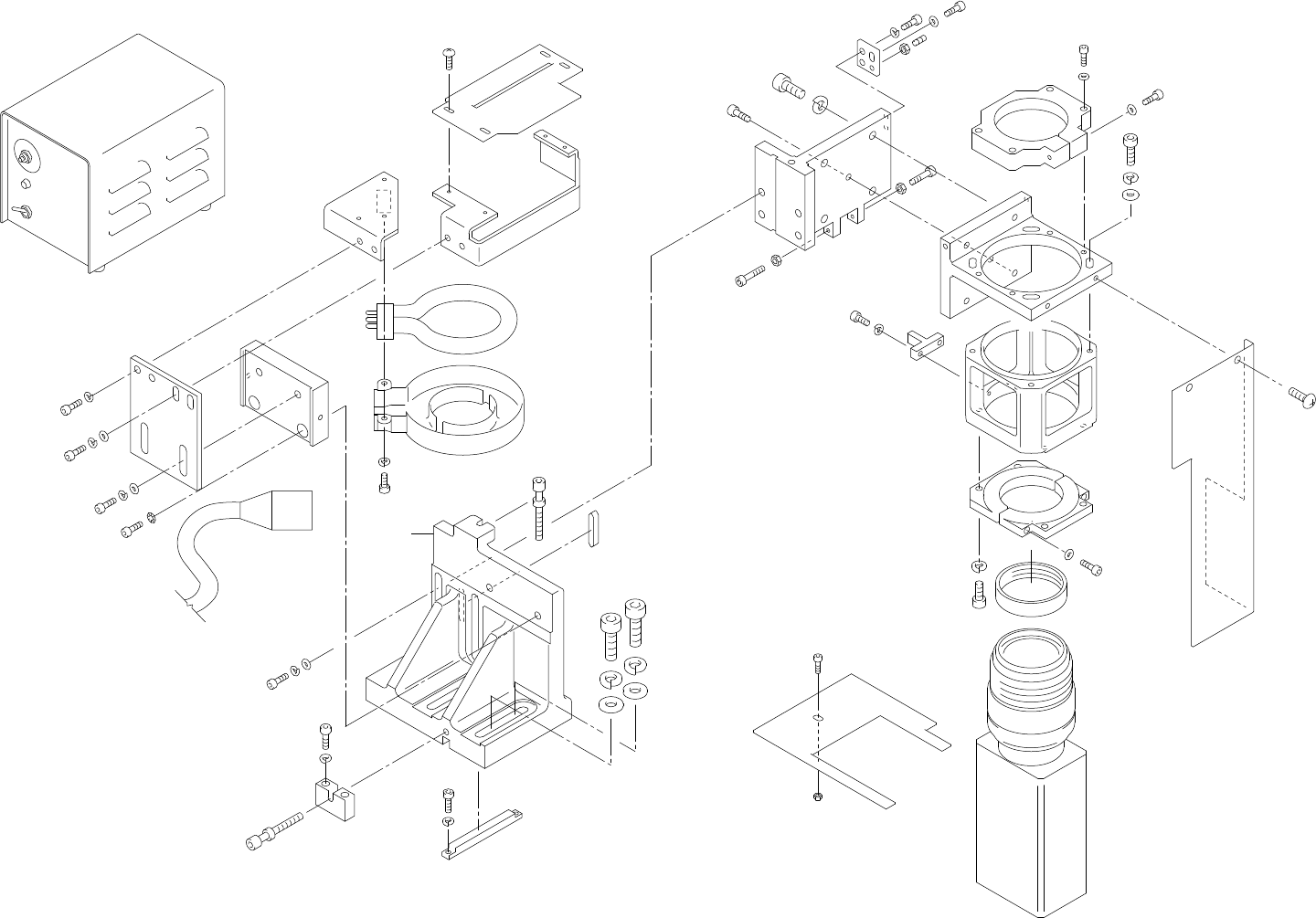

84 - 1
84.イメージセンサカメラ(1024用)(4400 10MHz)No.1(ｵﾌﾟｼｮﾝ)(QCA)
84.Image sensor camera(For 1024)(4400 10MHz)No.1(Option)(QCA)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x3.8
46
64
64
64
6
63
47
36
33
3
35
44
2
8
36
49
30
54
48
65
55
50
55
50
11
29
4
7
37
51
5
50
36
48
23
22
21
10
28
14
13
17
26
25
16
37
53
9
15
35
45
32
35
45
31
34
40
38
41
27
1
18
20
57
34
24
24
34
39
56
35
12
18
52
37
19
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
43
34
62
84.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(1024用)(4400 10MHz)(ｵﾌﾟｼｮﾝ)(QCA)
84.Image sensor camera No.1(For 1024)(4400 10MHz)(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QCA1013 1 BKT BKT
2 QCA1031 1 BKT BKT
3 QCA1051 1 BKT BKT
4 QCA1071 1 BKT BKT
5 QCA1550 1 RING ﾘﾝｸﾞ
6 QCA1090 1 RING ﾘﾝｸﾞ
7 QCA1100 1 BLOCK ﾌﾞﾛｯｸ
8 QCA1110 1 PLATE ﾌﾟﾚｰﾄ
9 QCA1121 1 PLATE ﾌﾟﾚｰﾄ
10 QCA1311 1 COVER ｶﾊﾞｰ
11 PCA0291 1 COVER ｶﾊﾞｰ
12 PCA0480 1 BLOCK ﾌﾞﾛｯｸ
13 PCA1121 1 BKT BKT
14 PCA1131 1 PLATE ﾌﾟﾚｰﾄ
15 PCA1202 1 PLATE ﾌﾟﾚｰﾄ
16 PCA1210 1 COVER ｶﾊﾞｰ
17 APCA1251 1 BKT, SUPPORT BKT 支え
18 ICA0082 2 BOLT ﾎﾞﾙﾄ
19 KCA0110 1 KEY ｷｰ
20 JRG0391 1 KEY ｷｰ
21 K11275 1 CAMERA, IMAGE SENSOR ｶﾒﾗ ｲﾒｰｼﾞｾﾝｻ Y1024BT
22 R4013C 1 LENS ﾚﾝｽﾞ FD35,F2.0
23 R2035H 1 RING ﾘﾝｸﾞ 52-58
24 EM42301 WASHER, FLAT ﾜｯｼｬ 平
25 R10203 1 LAMP ﾗﾝﾌﾟ 80-B(N-EX)
26 T4146H 1 POWER SUPPLY 電源 EF8024-NC
27 K40174 1 CABLE ｹｰﾌﾞﾙ HF8013MFU
28 K5201E SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M2.6X6L
29 K5208A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
30 N4031A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X10L
31 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
32 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
33 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
34 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
35 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
36 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
37 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
38 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
39 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L
IP-ⅢE PARTS LIST ver11 84 - 2
84.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(1024用)(4400 10MHz)(ｵﾌﾟｼｮﾝ)(QCA)
84.Image sensor camera No.1(For 1024)(4400 10MHz)(Option)(QCA)
84.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(1024用)(4400 10MHz)(ｵﾌﾟｼｮﾝ)(QCA)
84.Image sensor camera No.1(For 1024)(4400 10MHz)(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
40 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
41 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
42 H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X30L
43 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L
44 H5301A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X18L
45 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
46 H5292A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X20L
47 H5291A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X18L
48 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
49 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
50 H5279A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L
51 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
52 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
53 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
54 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
55 N1076A NUT, HEX ﾅｯﾄ 六角 M3 P=0.5
56 ICA0110 1 BOLT ﾎﾞﾙﾄ ･
57 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
58 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
59 H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X25L
60 W1041A WASHER, FLAT ﾜｯｼｬ 平 1W-4
61 H3018H FILTER ﾌｨﾙﾀ UVﾌｨﾙﾀ φ52
IP-ⅢE PARTS LIST ver11 84 - 3
84.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(1024用)(4400 10MHz)(ｵﾌﾟｼｮﾝ)(QCA)
84.Image sensor camera No.1(For 1024)(4400 10MHz)(Option)(QCA)
