IP- III E P ARTS LIST ver1 1 1 2 . ピン基準ユニット( オプション) ( Q P Q ) 1 2 . R e f e r e n c e p i n u n i t ( O p t i o n ) ( Q P Q ) 1 2 - 1 1 2 . ピン基準ユニット( オプション) ( Q P Q ) 1 2 . R e f e r e n c e p i n u n i t ( O p t i o n )…
11.Y軸ﾃｰﾌﾞﾙ 3(QPT)
11.Y axis table 3(QPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
41 PPT1652 1 PLATE ﾌﾟﾚｰﾄ
42 PPT1681 2 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ
43 QPT1790 1 BKT BKT
44 QPT1800 1 BKT BKT
45 IPB0640 2 PIN ﾋﾟﾝ
46 MQC1290 2 PULLEY ﾌﾟｰﾘ
47 NPT0540 2 COLLAR ｶﾗｰ
48 H4007H 2 HEAD, GEAR ﾍｯﾄﾞ ｷﾞﾔ 2GN-36K
49 M5017H 2 MOTOR, INDUCTION ﾓｰﾀ ｲﾝﾀﾞｸｼｮﾝ 2IK6RGN-A-KI
50 H4112A 6 BEARING ﾍﾞｱﾘﾝｸﾞ LF-1260ZZ
51 S3020T 4 SPRING ｽﾌﾟﾘﾝｸﾞ WF5-30
53 K5260A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M5X8L
54 N4029A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X8L
55 N4015A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X4L
56 K5357M
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M3X6L
57 . SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X5L
58 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
59 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
60 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
61 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
62 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
63 H5305A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X30L
64 H5302A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L
65 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12LHRC34-44
67 H5296C BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X45L
68 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
69 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
70 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
71 H5278A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X15L
72 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L
73 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
74 H5273A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X5L
75 N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
76 Y30828 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H06-M6
77 N2034A 1 NIPPLE, GREASE ﾆｯﾌﾟﾙ ｸﾞﾘｽ GP-AM6(P=1.0) For pressure control
78 QPT1890 1 PLATE, FIXED ﾌﾟﾚｰﾄ 固定
79 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
80 QPT3171 2 NUT ﾅｯﾄ ･
81 N4028A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X6L
IP-ⅢE PARTS LIST ver11 11 - 3
11.Y軸ﾃｰﾌﾞﾙ 3(QPT)
11.Y axis table 3(QPT)
IP-
III
E PARTS LIST ver11

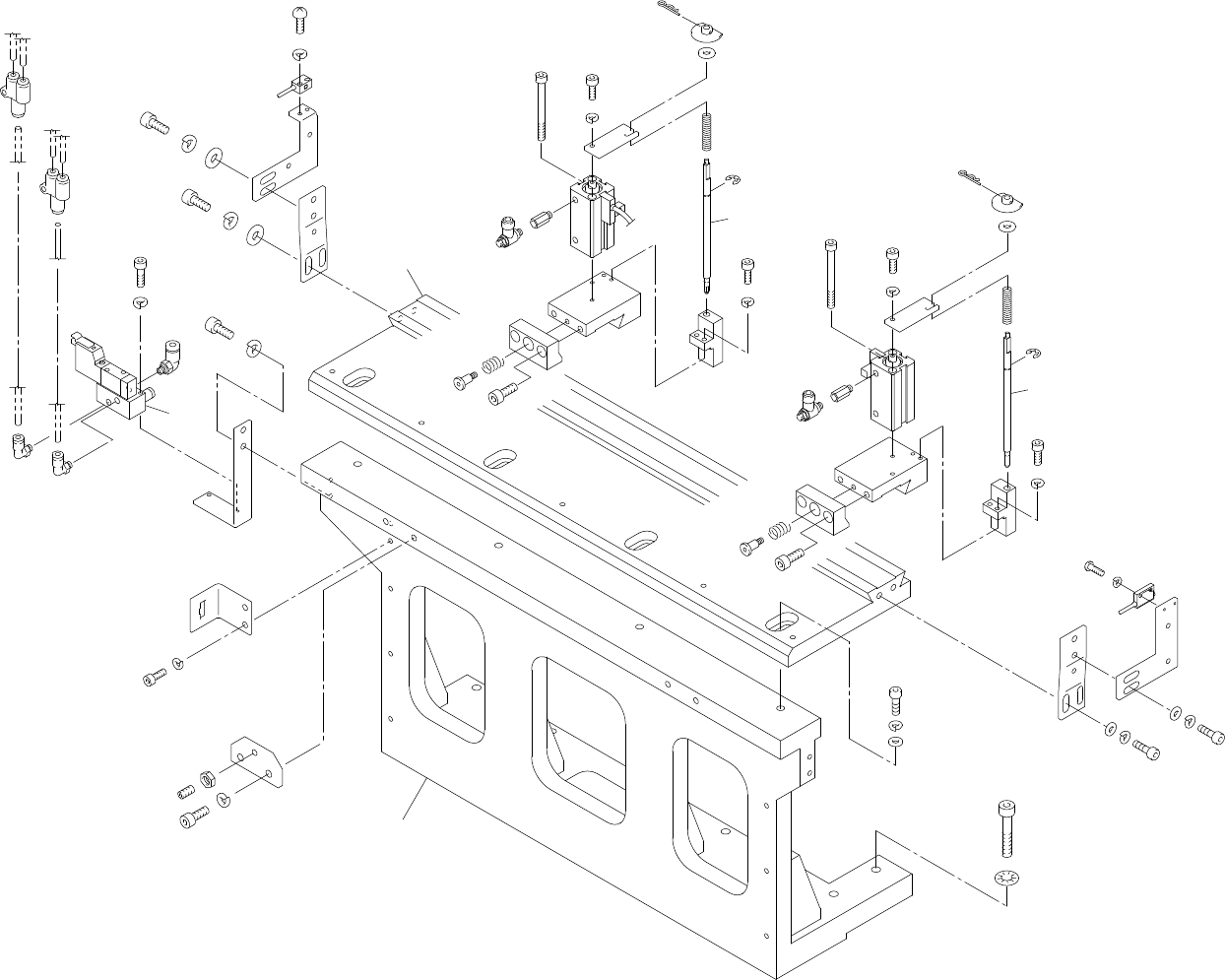

12.ピン基準ユニット(オプション)(QPQ)
12.Reference pin unit(Option)(QPQ)
12 - 1
12.ピン基準ユニット(オプション)(QPQ)
12.Reference pin unit(Option)(QPQ)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x4.2
50
40
45
49
48
14
46
41
51
46
41
52
15
34
44
39
17
33
9,11,21
56
43
7
32
13
47
57
43
8
54
30
31
59
4
18
24
23
51
32
47
13
17
33
10,12,20
56
43
6
59
8
43
57
54
30
31
18
3
24
23
51
2
38
43
35
16
14
46
41
52
46
41
52
29
29
55
43
53
42
28
19
27
27
5
46
51
37
36
1
25
22
42
58
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
12.ﾋﾟﾝ基準ﾕﾆｯﾄ(ｵﾌﾟｼｮﾝ)(QPQ)
12.Reference pin unit(Option)(QPQ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PPQ0014 1 BKT, BASE BKT ﾍﾞｰｽ
2 PPQ0022 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準
3 PPQ0031 1 SLIDER ｽﾗｲﾀﾞ
4 PPQ0041 1 SLIDER ｽﾗｲﾀﾞ
5 PPQ0050 2 PLATE, ADJUSTING ﾌﾟﾚｰﾄ 調整
6 PPQ0061 1 GUIDE ｶﾞｲﾄﾞ
7 PPQ0071 1 GUIDE ｶﾞｲﾄﾞ
8 PPQ0081 2 PLATE, GUIDE ﾌﾟﾚｰﾄ ｶﾞｲﾄﾞ
9 PPQ0091 1 PIN, DIAMOND-SHAPED ﾋﾟﾝﾀﾞｲﾔ(選択部品) (φ4) (Specified parts selection)
10 PPQ0100 1 PIN, REFERENCE ﾋﾟﾝ基準(選択部品) (φ4) (Specified parts selection)
11 PPQ0111 1 PIN, DIAMOND-SHAPED ﾋﾟﾝﾀﾞｲﾔ(選択部品) (φ3) (Specified parts selection)
12 PPQ0120 1 PIN, REFERENCE ﾋﾟﾝ基準(選択部品) (φ3) (Specified parts selection)
13 PPQ0230 2 COLLAR ｶﾗｰ
14 PPQ0142 2 PLATE ﾌﾟﾚｰﾄ
15 PPQ0150 1 PLATE, SW ﾌﾟﾚｰﾄ SW
16 PPQ0160 1 BKT, SW BKT SW
17 PPQ0190 2 SPRING ｽﾌﾟﾘﾝｸﾞ
18 PPQ0200 2 CLAMPER ｸﾗﾝﾊﾟ
19 PPQ0210 1 BKT BKT
20 PPQ2010 1 PIN ,REFERENCE ﾋﾟﾝ 基準(選択部品) (φ2.4) Note.1Specified parts selection
21 PPQ2101 1 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ(選択部品) (φ2.4) Note.2Specified parts selection
22 QPT1780 1 BKT BKT
23 NPB0130 2 PIN ﾋﾟﾝ
24 NPB0250 2 SPRING ｽﾌﾟﾘﾝｸﾞ
25 H1066H 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL A040-4E1-25-75-PSL-DC24V
27 Y3049G 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL04-M5(ｼﾛ)
28 Y3079N 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5
29 Y30742 4 UNION ﾕﾆｵﾝ KQ2U04-00
30 K5077A 4 CONNECTOR ｺﾈｸﾀ M-5J
31 K5325A 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ M4R-M5-O
32 H2025A 2 PIN, SNAP ﾋﾟﾝ ｽﾅｯﾌﾟ SSP-5
33 S1022A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
34 S4032G 1 SENSOR ｾﾝｻ UM-TL50S
35 S4032M 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ UM-TR50TV1
36 N4041A 2 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X15L
37 N1082A 2 NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
38 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L
39 K5175X SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2X8L
40 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
IP-ⅢE PARTS LIST ver11 12 - 2
12.ﾋﾟﾝ基準ﾕﾆｯﾄ(ｵﾌﾟｼｮﾝ)(QPQ)
12.Reference pin unit(Option)(QPQ)
