IP-
III
E PARTS LIST ver11

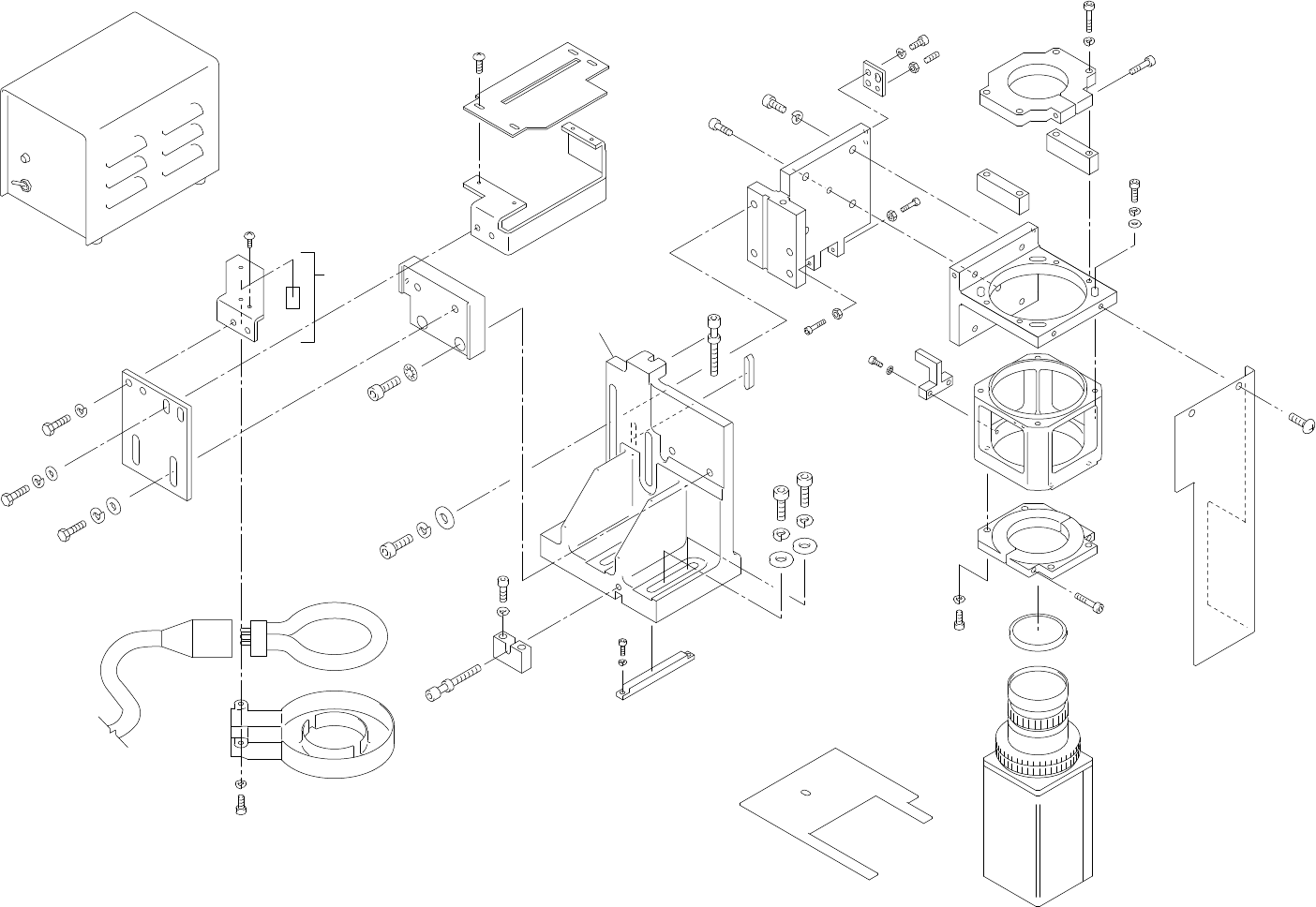

16.イメージセンサカメラ(小視野用)(4800 20MHz)(オプション)No.1(QCA)
16.Image sensor camera(For narrow view)(4800 20MHz)(Option)No.1(QCA)
16 - 1
16.イメージセンサカメラ(小視野用)(4800 20MHz)(オプション)No.1(QCA)
16.Image sensor camera(For narrow view)(4800 20MHz)(Option)No.1(QCA)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x4
53
37
51
14
16
52
38
42
2
4
38
55
37
48
13
33
56
33
56
8
11
57
44
15
3
17
50
38
54
20
19
59
7
5
45
36
12
57
39
10
1
8
12
36
45
6
43
47
28
23
29
21
30
32
22
37
63
41
37
49
40
36
46
26
27
24
39
58
25
34
33
61
60
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
9
37
62
64
16.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(小視野用)(4800 20Mz)(ｵﾌﾟｼｮﾝ)(QCA)
16.Image sensor camera No.1(For narrow view)(4800 20Mz)(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PCA0480 1 BLOCK ﾌﾞﾛｯｸ
2 QCA1051 1 BKT BKT
3 QCA1071 1 BKT BKT
4 QCA1110 1 PLATE ﾌﾟﾚｰﾄ
5 QCA1261 1 BKT BKT
6 QCA1281 1 PLATE ﾌﾟﾚｰﾄ
7 QCA1331 1 COVER ｶﾊﾞｰ
8 ICA0082 2 BOLT ﾎﾞﾙﾄ
9 ICA0110 1 BOLT ﾎﾞﾙﾄ
10 KCA0110 1 KEY ｷｰ
11 JRG0391 1 KEY ｷｰ
12 EM42301 8 WASHER, FLAT ﾜｯｼｬ 平
13 QCA1400 1 BKT BKT
14 QCA1420 1 RING, TIGHTENING ﾘﾝｸﾞ 締付け
15 QCA1430 1 BLOCK, LOCATING ﾌﾞﾛｯｸ 位置決め
16 QCA1440 2 PLATE ﾌﾟﾚｰﾄ
17 QCA1550 1 RING, TIGHTENING ﾘﾝｸﾞ 締付け
19 R4033A 1 LENS ﾚﾝｽﾞ #1178
20 H3025Z 1 FILTER ﾌｨﾙﾀ MC-43
21 PCA1121 1 BKT BKT
22 PCA1202 1 PLATE ﾌﾟﾚｰﾄ
23 PCA1230 1 SPACER ｽﾍﾟｰｻ
24 K40174 1 CABLE ｹｰﾌﾞﾙ HF8013MFU
25 T4146M 1 POWER SUPPLY 電源 EF-8424-NC
26 R1020H 1 LAMP ﾗﾝﾌﾟ 84B-NE-XT
27 K10594 1 COVER ｶﾊﾞｰ 84B45T
28 AQCA1490 1 BKT, SUPPORT BKT 支え
29 QCA1520 1 BKT, SUPPORT BKT 支え
30 QCA1560 1 PLATE, DISPERSION ﾌﾟﾚｰﾄ 拡散
32 K5201E
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ       
M2.6X6L
33 N4031A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M4X10L
34 N1079A
NUT, HEX
ﾅｯﾄ 六角         
M4 P=0.7
36 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     
6M/M
37 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     
5M/M
38 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     
4M/M
39 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     
3M/M
40 W1045A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-6
41 W1044A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-5
42 W1043A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-4
IP-ⅢE PARTS LIST ver11 16 - 2
16.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(小視野用)(4800 20Mz)(ｵﾌﾟｼｮﾝ)(QCA)
16.Image sensor camera No.1(For narrow view)(4800 20Mz)(Option)(QCA)
16.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(小視野用)(4800 20Mz)(ｵﾌﾟｼｮﾝ)(QCA)
16.Image sensor camera No.1(For narrow view)(4800 20Mz)(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
43 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
44 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
45 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X20L
46 H5182A BOLT, HEX ﾎﾞﾙﾄ 六角 M6X15L
47 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L
48 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X18L
49 H5176A BOLT, HEX ﾎﾞﾙﾄ 六角 M5X12L
50 H5294A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X30L
51 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X20L
52 H5291A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X18L
53 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
54 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
55 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
56 H5279A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X20L
57 H5275A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
58 H5274A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
59 K1128T 1 CAMERA, IMAGE SENSOR ｶﾒﾗ ｲﾒｰｼﾞｾﾝｻ FH2048BN
60 K5208A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ       
M4X6L
61 PAC0291 1 COVER ｶﾊﾞｰ ･
62 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X25L
63 H5175A BOLT, HEX ﾎﾞﾙﾄ 六角 M5X10L
64 H5204A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ       
M3X8L
