23.ﾊﾟｰﾂ排出装置(QPG)
23.Parts ejector(QPG)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 IPG0070 2 COLLAR ｶﾗｰ
2 IPG0101 1 DOG ﾄﾞｯｸﾞ
3 KPG0070 2 COLLAR ｶﾗｰ
4 KPG0110 2 PLATE ﾌﾟﾚｰﾄ
5 KPG0120 2 FLANGE ﾌﾗﾝｼﾞ
6 KPG0160 4 COLLAR ｶﾗｰ
7 KPG0180 2 BOLT ﾎﾞﾙﾄ
8 KPG0201 2 GUIDE ｶﾞｲﾄﾞ
9 KPG0210 1 PLATE ﾌﾟﾚｰﾄ
10 PPG0107 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
11 PPG0116 1 PLATE SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
12 PPG0120 1 PLATE, CONNECTING ﾌﾟﾚｰﾄ ﾂﾅｷﾞ
13 PPG0130 1 ROLLER ﾛｰﾗ
14 PPG0140 3 ROLLER ﾛｰﾗ
15 PPG0150 1 SHAFT ｼｬﾌﾄ
16 PPG0160 2 SHAFT ｼｬﾌﾄ
17 PPG0173 1 BELT ﾍﾞﾙﾄ
18 PPG0180 1 STOPPER ｽﾄｯﾊﾟ
19 PPG0190 1 BOX BOX
20 PPG0202 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
21 PPG0211 2 BKT, SW BKT SW
22 PPG0251 1 BKT, SENSOR BKT ｾﾝｻ
24 QPG0280 2 BKT BKT
25 QPG0290 1 PLATE, SW ﾌﾟﾚｰﾄ SW
26 H4007M 1 HEAD, GEAR ﾍｯﾄﾞ ｷﾞﾔ 2GN-60K
27 H4131A 8 BEARING ﾍﾞｱﾘﾝｸﾞ 698ZZ
28 S4040X 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A
29 M5056H 1 MOTOR ﾓｰﾀ PB206-401-E1
30 S3135H 2 SW, PHOTOELECTRIC SW 光電 PQ-01
31 H1040C 1 AMPLIFIER ｱﾝﾌﾟ PS2-61
32 S3135A 2 SW, PHOTOELECTRIC SW 光電 PS52
33 S3035A 2 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-14T 1 Type
34 T2003A 1 CHAIN ﾁｪｰﾝ RS25NP34 link
35 K5173A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X10L
36 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L
37 K5255A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X4L
38 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
39 N4015A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X4L
40 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
IP-ⅢE PARTS LIST ver11 23 - 2
23.ﾊﾟｰﾂ排出装置(QPG)
23.Parts ejector(QPG)
23.ﾊﾟｰﾂ排出装置(QPG)
23.Parts ejector(QPG)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
41 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
42 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
43 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
44 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
45 W1040A WASHER, FLAT ﾜｯｼｬ 平 3M/MX0.5X7
46 H5173A BOLT, HEX ﾎﾞﾙﾄ 六角 M4X35L (all-thread)
47 H5170A BOLT, HEX ﾎﾞﾙﾄ 六角 M4X12L
48 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
49 H5296H BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X55L
50 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
51 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
52 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
53 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
54 H5273A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X5L
55 QPG0340 1 PLATE, SENSOR ﾌﾟﾚｰﾄ ｾﾝｻ
56 QPG0350 2 SLIT ｽﾘｯﾄ ･
IP-ⅢE PARTS LIST ver11 23 - 3
23.ﾊﾟｰﾂ排出装置(QPG)
23.Parts ejector(QPG)
IP-
III
E PARTS LIST ver11

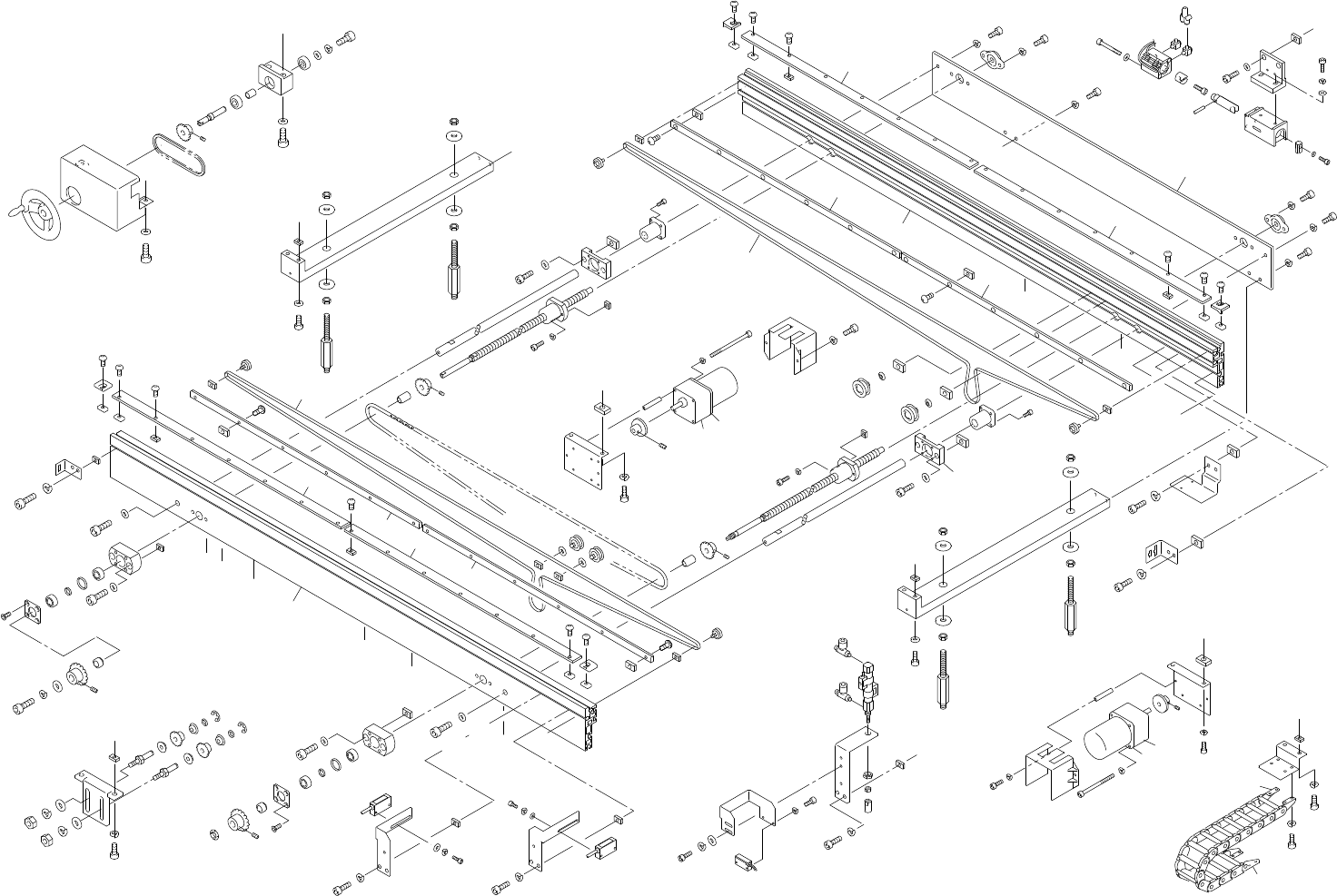

24.インコンベア(QQC)
