2 6 . 2 . カムボックス 3 C a m b o x 3 ( W P A ) CP-642E P ARTS LIST ver07 2 6 - 4 2 6 . 2 . カムボックス 3 ( W P A ) 2 6 . 2 . C a m b o x 3 ( W P A ) 2 6 2 5 3 1 2 3 6 2 2 2 0 5 1 8 2 7 1 1 1 1 2 7 8 2 1 1 9 4 2 7 1 1 1 2 2 2 7 1 …
26.1.カムボックス 3 Cam box 3(WPA)
CP-642E PARTS LIST ver07
26-3
26.1.カムボックス 3(WPA)
26.1.Cam box 3(WPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
87S2010H 1 LAMP (Select Parts) ﾗﾝﾌﾟ(選択部品) FT-11001(50HZ) 注1. Note.1
88MPA3540 1 BKT BKT 注1. Note.1
89H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L 注1. Note.1
90H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L 注1. Note.1
91W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M 注1. Note.1
92W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M 注1. Note.1
93K5209A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X8L 注1. Note.1
94MPA3531 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ 注1. Note.1
95S2010M 1 LAMP (Select Parts) ﾗﾝﾌﾟ(選択部品) ET-11001(60HZ) 注1. Note.1
96S2010H 1 LAMP (Select Parts) ﾗﾝﾌﾟ(選択部品) ET-11001(50HZ) 注1. Note.1
注１.防音ｶﾊﾞｰ取付時2個使用
Note.1 : These a Parts are required only when the noise reduction cover is attached.
26.2.カムボックス 3 Cam box 3(WPA)
CP-642E PARTS LIST ver07
26-4

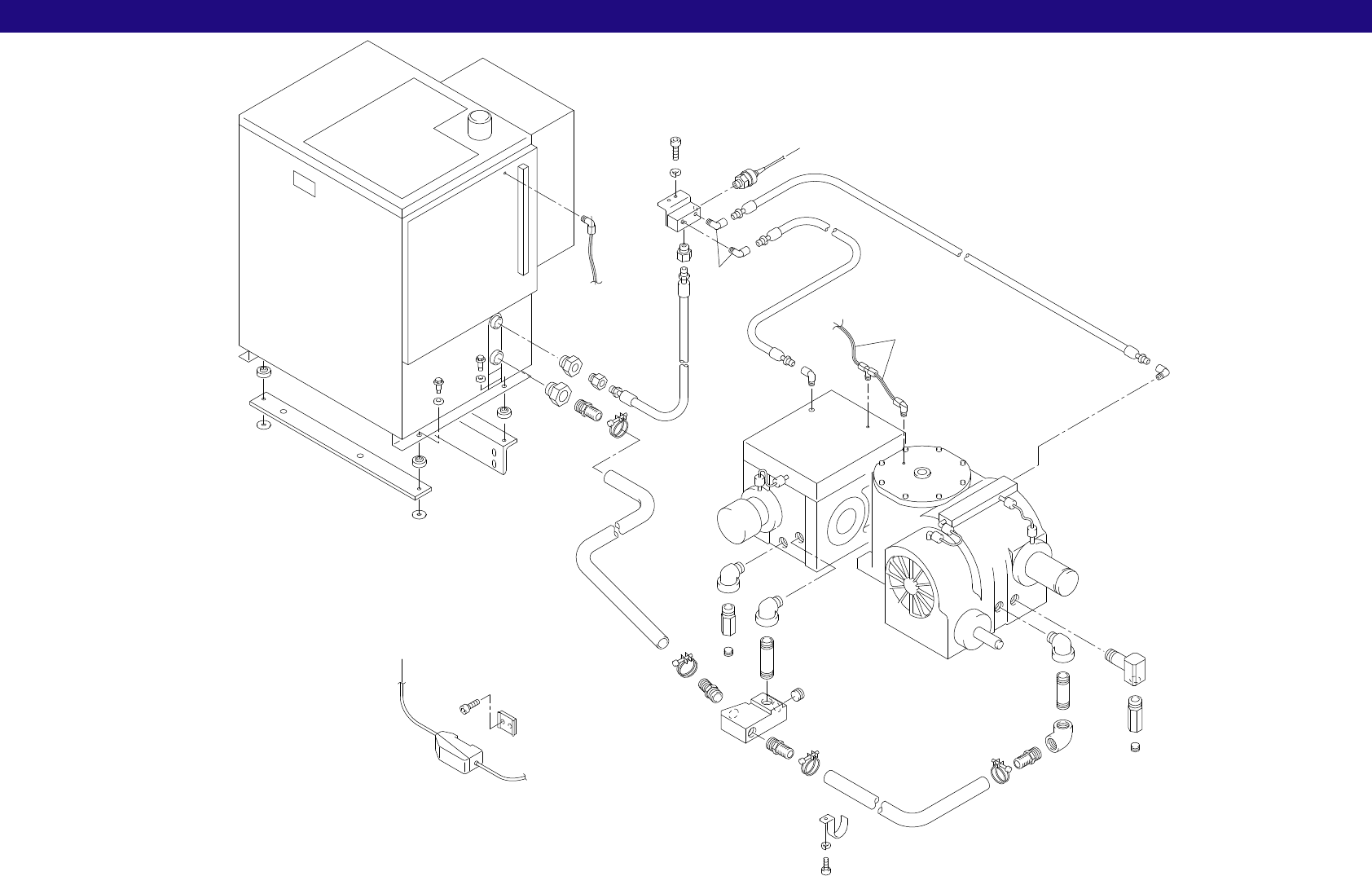

26.2.カムボックス 3(WPA)
26.2.Cam box 3(WPA)
2
62
53
12
3
6
22
20
5
18
27
11
11
27
8
21
19
4
27
11
12
22
7
19
49
17
71
73
71
73
72
71
70
69
69
70
23
27
11
9
24
83
82
15
24
26
1
63
59
16
10
10
13
84
83
82
14
10
86
88
87
88
87
88
87
88
87
x10
A
A
26.2.カムボックス 3 Cam box 3(WPA)
CP-642E PARTS LIST ver07
26-5
26.2.カムボックス 3(WPA)
26.2.Cam box 3(WPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WPA0911 1 DISTRIBUTOR 分配器
2WPA0930 2 HOLDER 受け
3WPA1451 1 ELBOW ｴﾙﾎﾞ
4WPA1460 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口
5WPA1470 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口
6WPA1481 1 PIPE ﾊﾟｲﾌﾟ
7WPA1491 1 PIPE ﾊﾟｲﾌﾟ
8WPA1581 1 DISTRIBUTOR 分配器
9H3057T 1 BUSHING ﾌﾞｯｼｭ SBU06-02J
10A4085E 4 ELBOW, MALE AND FEMALE ｴﾙﾎﾞ ｵｽﾒｽ 516-018KN3
11H1150N 4 BAND, HOSE ﾊﾞﾝﾄﾞ ﾎｰｽ HS16
12H5004T 1 HOSE ﾎｰｽ Mﾟ25Xﾟ30
13H5038T 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 716-M200
14H5041A 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 716-M700
15H5044R 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 718-720MK
16S4033T 1 SENSOR, PRESSURE ｾﾝｻ 圧力 AP-13
17A1038T 1 AMPLIFIER ｱﾝﾌﾟ AP-70
18A4024A 1 ELBOW ｴﾙﾎﾞ SLA06-000J
19A4084A 2 ELBOW, MALE AND FEMALE ｴﾙﾎﾞ ｵｽﾒｽ SLC06-000J
20A4085N 1 ELBOW ｴﾙﾎﾞ 3/4.
21A3035A 1 PLUG 埋栓 PS3/4
22A3032A 2 PLUG 埋栓 PT1/2
23H3060T 1 BUSHING ﾌﾞｯｼｭ SBU08-060J
24S2164T 2 JOINT, MALE AND FEMALE ｼﾞｮｲﾝﾄ ｵｽﾒｽ 408054KN
26A50032 1 OIL, COOLANT ｵｲﾙ ｸｰﾗﾝﾄ SCFB-01
27WPA0942 4 NIPPLE ﾆｯﾌﾟﾙ
49H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
53H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
59H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
62W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
63W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
69WAC0151 4 BOLT ﾎﾞﾙﾄ
70WAC0210 4 SHEET, RUBBER ｼｰﾄ ｺﾞﾑ
71WAC0200 4 BUSHING ﾌﾞｯｼｭ
72WAC0120 1 PLATE ﾌﾟﾚｰﾄ
73WAC0190 2 COLLAR ｶﾗｰ
82WPA1810 1 HOSE ﾎｰｽ
83A4044A 2 ELBOW ｴﾙﾎﾞ PL6-01M
84T4022A 1 TEE ﾃｨｰ TT6-01
86WAC0111 3 BKT BKT
87N1011A 4 NUT ﾅｯﾄ 406-002
88S3083A 4 SLEEVE ｽﾘｰﾌﾞ 406-001 ･
