4 4 . 英国向けフェンス U K f e n c e ( W A F ) CP-642E P ARTS LIST ver07 4 4 - 1 4 4 . 英国向けフェンス( オプション) ( W A F ) 4 4 . U K f e n c e ( O p t i o n ) ( W A F ) x 2 7 C J A B D E J E E E H E G G G H K N M P K N M P L Q Q O L O 1 …

100%1 / 161
43.フェンス Fence(WAF)
CP-642E PARTS LIST ver07
43-4
43.フェンス(オプション)(WAF)
43.Fence(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
125WAF0700 2 COVER, RETAINER ｶﾊﾞｰ 押え
(Option)
For GL-541E
126WAF0620 2 JOINT ｼﾞｮｲﾝﾄ
127GXZ3020 2 COVER, RETAINER ｶﾊﾞｰ 押え
128H5145H 1 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ TM-257-No.3
注1.ｺﾝﾍﾞｱ手動幅替え用
Note.1 : For manual change of the conveyor width.
注2.ｺﾝﾍﾞｱ自動幅替え用
Note.2 : For automatic change of the conveyor width. ･
 

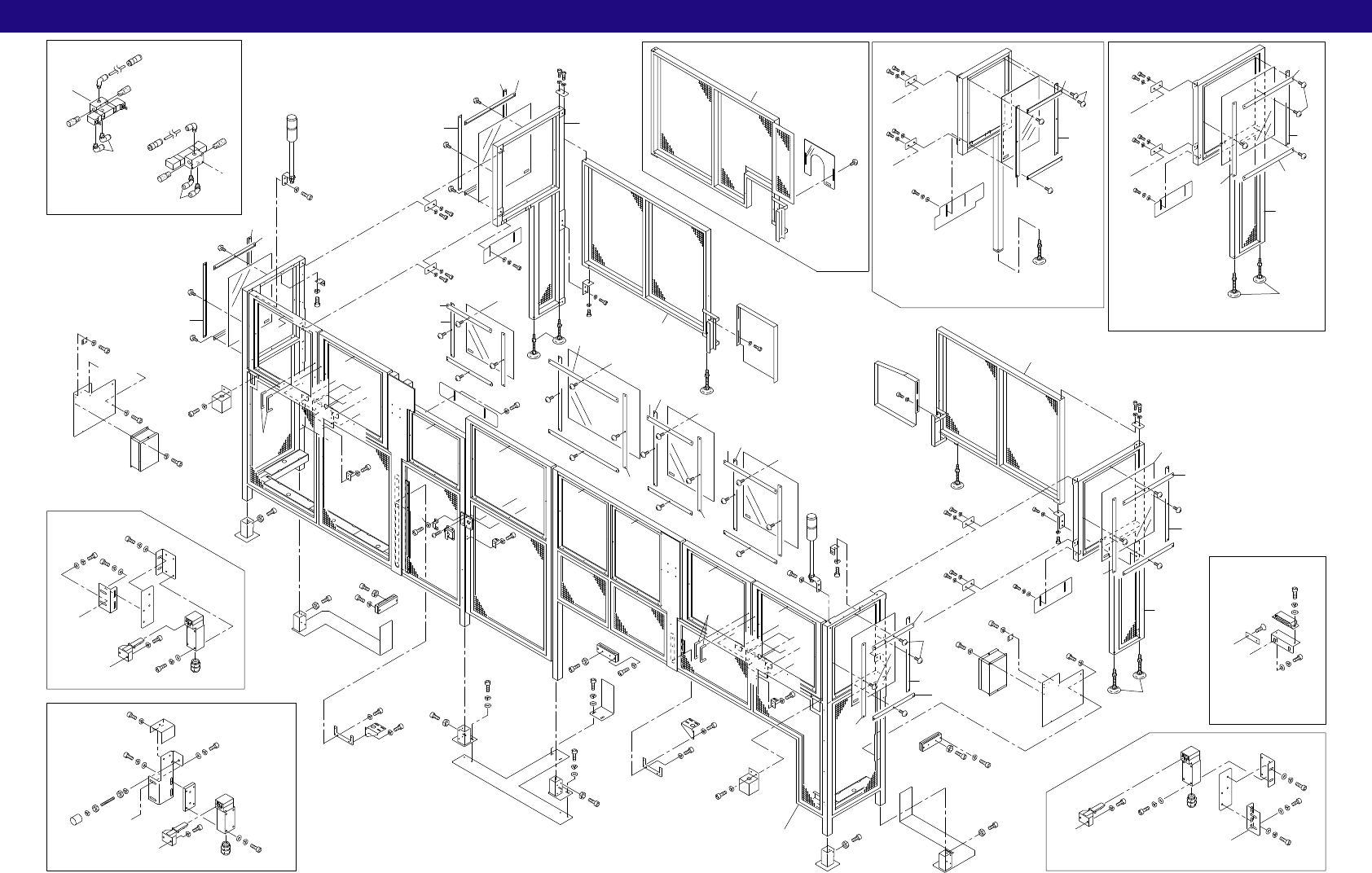

44.英国向けフェンス UK fence(WAF)
CP-642E PARTS LIST ver07
44-1
44.英国向けフェンス(オプション)(WAF)
44.UK fence(Option)(WAF)
x27
C
J
A
B
D
E
J
E
E
E
H
E
G
G
G
H
K
N
M
P
K
N
M
P
L
Q
Q
O
L
O
102
45
105
104
43
36
29
44
53
102
45
105
43
36
103
36
43
94
12
50
40
4
50
40
45
38
11
31
44
37
95
43
36
5
6
13
42
42
6
13
1
92
44
37
60
58
64
55
42
42
64
55
59
13
56
42
42
13
56
70
13
69
42
13
42
69
62
57
61
42
42
57
61
43
36
97
94
43
36
36
43
92
60
93
43
36
33
113
53
44
114
50
40
12
29
44
53
95
43
36
11
45
38
31
44
37
5
6
42
42
13
42
13
6
HELPS
オプション(GL-II 用継ぎフェンス)
Option(Connecting fence for GL-II )
オプション(GL-541E用継ぎフェンス)
Option(Connecting fence for GL-541E)
80
46
41
42
42
76
46
41
76
46
41
100
48
44
53
78
42
77
111
111
78
74
71
46
41
46
41
79
82
71
43
36
98
99
43
36
71
81
80
46
41
76
46
41
76
46
41
48
44
53
100
46
41
46
41
79
71
75
42
78
111
42
78
111
77
90
83
84
122
124
127
125
42
42
125
127
128
48
44
53
123
126
46
41
126
46
41
117
46
41
117
46
41
116
48
44
53
121
115
42
42
118
120
120
118
119
D
P
C
O
K
L
N
M
A
B
86
88
89
72
65
47
43
87
72
91
23
24
43
54
47
43
52
68
67
48
44
53
47
43
87
48
44
53
66
67
48
44
53
23
73
47
43
52
54
43
68
24
48
44
53
87
43
47
66
21
43
36
48
44
53
20
22
23
73
48
44
37
45
47
43
52
50
25
50
45
26
101
19
18
18
17
19
101
19
18
18
19
17
27
46
41
27
46
41
46
51
50
40
16
16
50
40
46
51
50
40
3
40
50
16
46
51
38
45
49
15
9
49
45
38
50
40
2
38
45
49
10
50
40
24
43
54
73
44.英国向けフェンス UK fence(WAF)
CP-642E PARTS LIST ver07
44-2
44.英国向けフェンス(オプション)(WAF)
44.UK fence(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WAF0404 1 FENCE, SAFETY ﾌｪﾝｽ 安全
2WAF1564 1 PLATE ﾌﾟﾚｰﾄ
3WAF2320 1 STAND ｽﾀﾝﾄﾞ
4WAF2330 1 STAND ｽﾀﾝﾄﾞ
5AWAF8540 2 COVER ｶﾊﾞｰ
6WAF1080 4 RETAINER, COVER 押え ｶﾊﾞｰ
9WAF1630 1 STAND ｽﾀﾝﾄﾞ
10WAF1620 1 STAND ｽﾀﾝﾄﾞ
11WAF0991 2 PLATE ﾌﾟﾚｰﾄ
12BPZ3023 2 STAND ｽﾀﾝﾄﾞ
13GXZ2240 18 RETAINER, COVER 押え ｶﾊﾞｰ
15GPZ2460 1 BKT BKT
16WAF2160 3 BKT, RETAINER BKT 押え
17H1073F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCD345-01D-D24SP
18S1056A 4 SILENCER ｻｲﾚﾝｻ AN101-01
19S2171A 6 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01
20GPZ4221 1 BKT BKT
21GPZ4290 1 COVER ｶﾊﾞｰ
22GPZ4242 1 SPACER ｽﾍﾟｰｻ
23S3197A 5 SW, LIMIT SW ﾘﾐｯﾄ XCK-J5970
24S3199A 5 SW, LIMIT SW ﾘﾐｯﾄ ZCK-Y09
25. 1 BOLT ﾎﾞﾙﾄ SZ42002
26M1003A 1 MAGNET ﾏｸﾞﾈｯﾄ KM025C
27H2003T 2 SIGNAL, TOWER ｼｸﾞﾅﾙﾀﾜｰ SEF102AF-Y
29. 1 BOX, SW BOX, SW AWEM-7301
31. 1 BOX TERMINAL BOX ﾀｰﾐﾅﾙ AWEE-7701
33H1018D 1 HANDLE ﾊﾝﾄﾞﾙ THA-299-2
36H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
37H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X16L
38H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X16L
40H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
41H5340A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X16L
42K5215A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X10L
43W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
44W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
45W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
46W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
47W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
48W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
49W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
50N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
51H5344A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X35L
52H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X40L
53H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
