R V -2- 3D H PRODUCT SPEC I FI CA TIONS 9 7. Option 7- 1. Optiona l Softw are Item Speci fi cation Mai n system • Character - recogni ti on (OCR /OCV ) • Code reader (1D, 2D) • Comm unicati on lic ense * Requir ed when c…

RV-2-3DH PRODUCT SPECIFICATIONS

6. Hardware Specification

Item Specification

Image processing system

Color image processing

1200-million-pixel CMOS color camera, high-brightness white LEDs,

coaxial illumination

Resolution Standard: 12.0 μm/pixel, Optional: 5.0 μm/pixel

Image range Standard: 48.0 x 36.0 mm, Optional: 20.0 x 15.0 mm

Transfer conveyor type Single track

Transfer conveyor width

adjustment

Automatic adjustment

Height of transfer

conveyor

900 mm -20 mm to +70 mm Adjustable using the adjuster feet

Processing time 0.20 second/1 screen

Positioning Reference on end face of board

Electric power

3-phase 200 to 230 V ±10%, 2.0 kVA or less (effectively 0.8 kVA)

(Power supply cable: 2.0 mm2 x 4-core cable, less than 3 m)

Air supply pressure 0.49 MPa

Control computer OS Windows 7, 64-bit

Optional Marking unit (Air type)

RV-2-3DH PRODUCT SPECIFICATIONS

7. Option

7-1. Optional Software

Item

Specification

Main system

• Character-recognition (OCR/OCV)

• Code reader (1D, 2D)

• Communication license

* Required when connecting to a data server

Peripherals

* It is your responsibility to

prepare a PC.

• Remote judgment (CCC mode)

• Remote judgment (OLR mode)

• Repair station

• SPC

• Offline editor

• Quality Traceability

Server system

* It is your responsibility to

prepare a PC.

• Data server

* Required when connecting an optional peripheral software.

• Data share

7-1-1. Optional Main System Software

 Character-recognition (OCR/OCV)

This OCR (Optical Character Recognition) is a support tool that recognizes an alphanumeric character

string written on the board or part and converts it into the character data that can be handled on the

computer so as to make the judgment.

Resistance constants, IC characters, etc., can be recognized.

This OCV (Optical Character Verification) is a support tool that recognizes characters using the pattern

matching.

 Code reader (1D, 2D)

The cameras on the inspection machine can recognize 1D (barcodes) and 2D (2D codes).

◆ Recognizable size

• 1D (barcode) ：Maximum 50 mm

• 2D (2-dimensional code) ：Maximum 25 mm x 25 mm * Minimum cell size: 0.1 mm square

◆ Recognizable code list

• 1D (barcode)

2/5 Industrial, 2/5 Interleaved, Codabar (NW-7), Code 128, Code 39, Code 93,

EAN-13 (JAN-13), EAN-8 (JAN-8), MSI, Pharma Code, GS1 Databar (RSS), UPC-A, UPC-E

• 2D (2-dimensional code)

Data Matrix ECC 200, QR Code, Micro QR Code, PDF417, Aztec

 SPI feedback

I add up a solder test result in SPI (examination of solder printing machine) and collect the statistics and

can notify you of movement instructions and print position revision quantity for a press based on the result.

RV-2-3DH PRODUCT SPECIFICATIONS

7-1-2. Optional Peripheral Software

This is a suite of software applications that provide various functions to support the operation of the

RV-2-3DH.

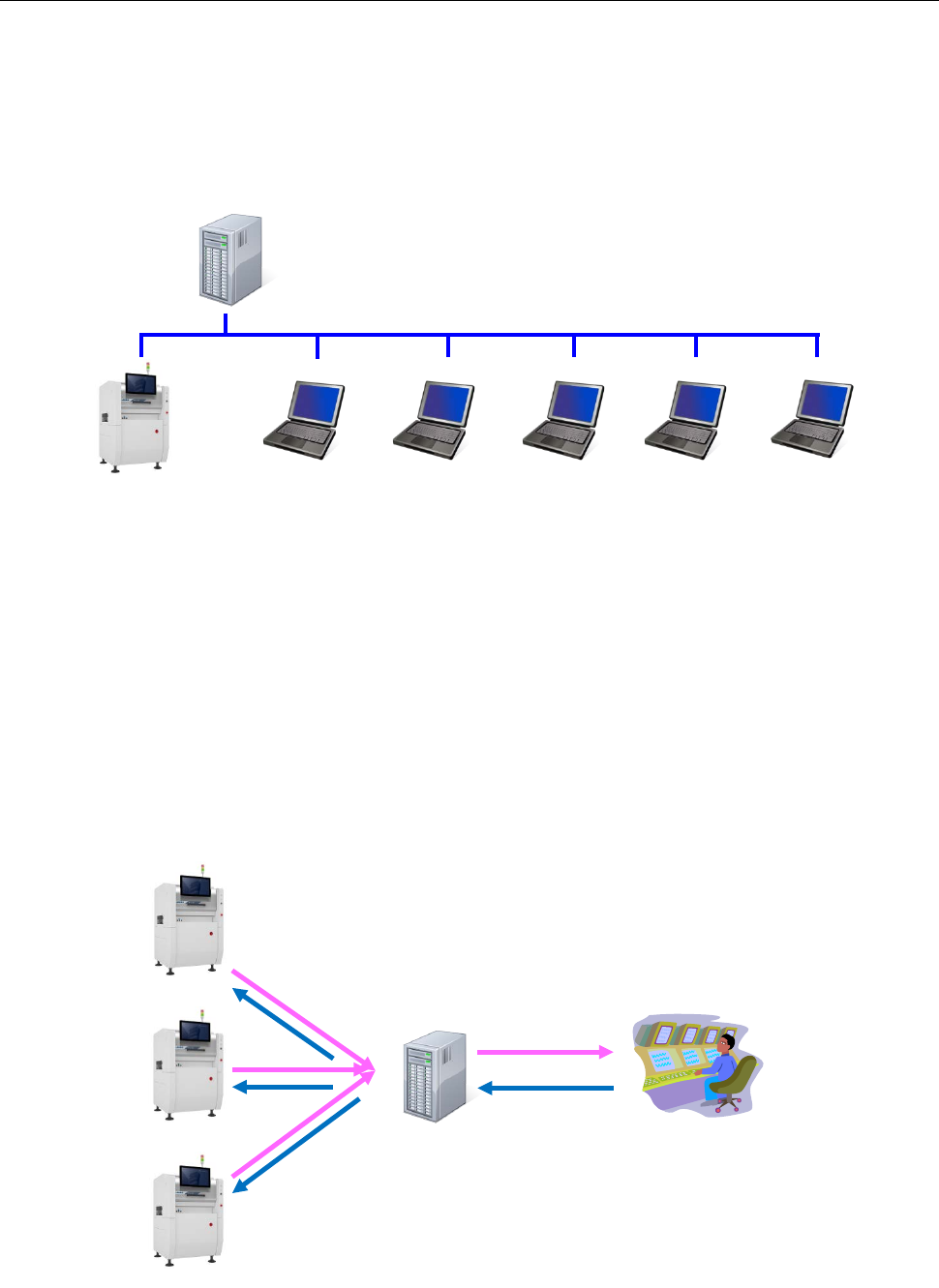

By connecting the TOPSS server with the devices and the terminal with the applicable function via a network,

the entire

RV-2-3DH operations within the factory can be managed together.

 Remote judgment

This function enables the operator to identify the parts that are judged by RV-2-3DH and determined as

NG on any terminal other than the machine.

Remove judgment can be performed in the following two modes that share the same judgment screen and

operability.

• CCC mode

Multiple RV-2-3DH units can be connected to a single terminal to perform judgment.

RV-2-3DH

TOPSS server

NG information

Judgment

result

TOPSS server

SPC

Offline editor

Remote

judgment

Repair station

Quality

Traceability

RV-2-3DH
