P-311-003 - 第102页

Fig. C1-4 スキージ Y 軸駆動部 Squeegee Y Axis Driving Section 304 309 303 302 308 312 31 1 310 301 See Fig.A1-2 Key No.170 0912-002 Fig. C1 スクリーンホルダ部 STENCIL HOLDER SECTION UNIT -2 Fig. C1 STENCIL

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

0912-002

201 09003008 ASSY_MOTOR 1 2090003005-001

202 221AA018 ROHS_HEX-SCT 4 2090003005-002

203 221HA004 WASHER 4 2090003005-003

204 221HA104 WASHER 4 2090003005-004

205 211FD421 BRACKET 1 2090003005-005

206 223C0260 COUPLING 1 2090003005-006

207 222F0026 BEARING_UNIT 1 2090003005-007

208 221AA018 ROHS_HEX-SCT 4 2090003005-008

209 223B0440 BALL_SCREW 1 2090003005-009

210 221AA030 ROHS_HEX-SCT 4 2090003005-010

211 211DE874 PLATE 1 2090003005-011

212 211G6272 BLOCK 1 2090003005-012

213 221AA016 ROHS_HEX-SCT 2 2090003005-013

214 221HA004 WASHER 2 2090003005-014

215 221HA104 WASHER 2 2090003005-015

217 211FE179 BRACKET 1 2090003005-017

218 221AA016 ROHS_HEX-SCT 4 2090003005-018

219 221HA004 WASHER 4 2090003005-019

220 221HA104 WASHER 4 2090003005-020

222 213D1327 DISK 1 2090003005-022

223 221CA027 SET_SCREW 2 2090003005-023

224 211G5771 BLOCK 1 2090003005-024

225 23G10056 SENSOR_PHOTO 1 2090003005-025

226 211FE521 BRACKET 1 2090003005-026

227 221AA005 ROHS_HEX-SCT 2 2090003005-027

228 221HA003 WASHER 2 2090003005-028

229 221HA103 WASHER 2 2090003005-029

230 221DA010 MACHINE_SCREW 2 2090003005-030

231 221HA203 WASHER 2 2090003005-031

232 221HA003 WASHER 2 2090003005-032

Fig. C1

Fig. C1-3

UNIT-2

Fig. C1

STENCIL

SIGMA-P4

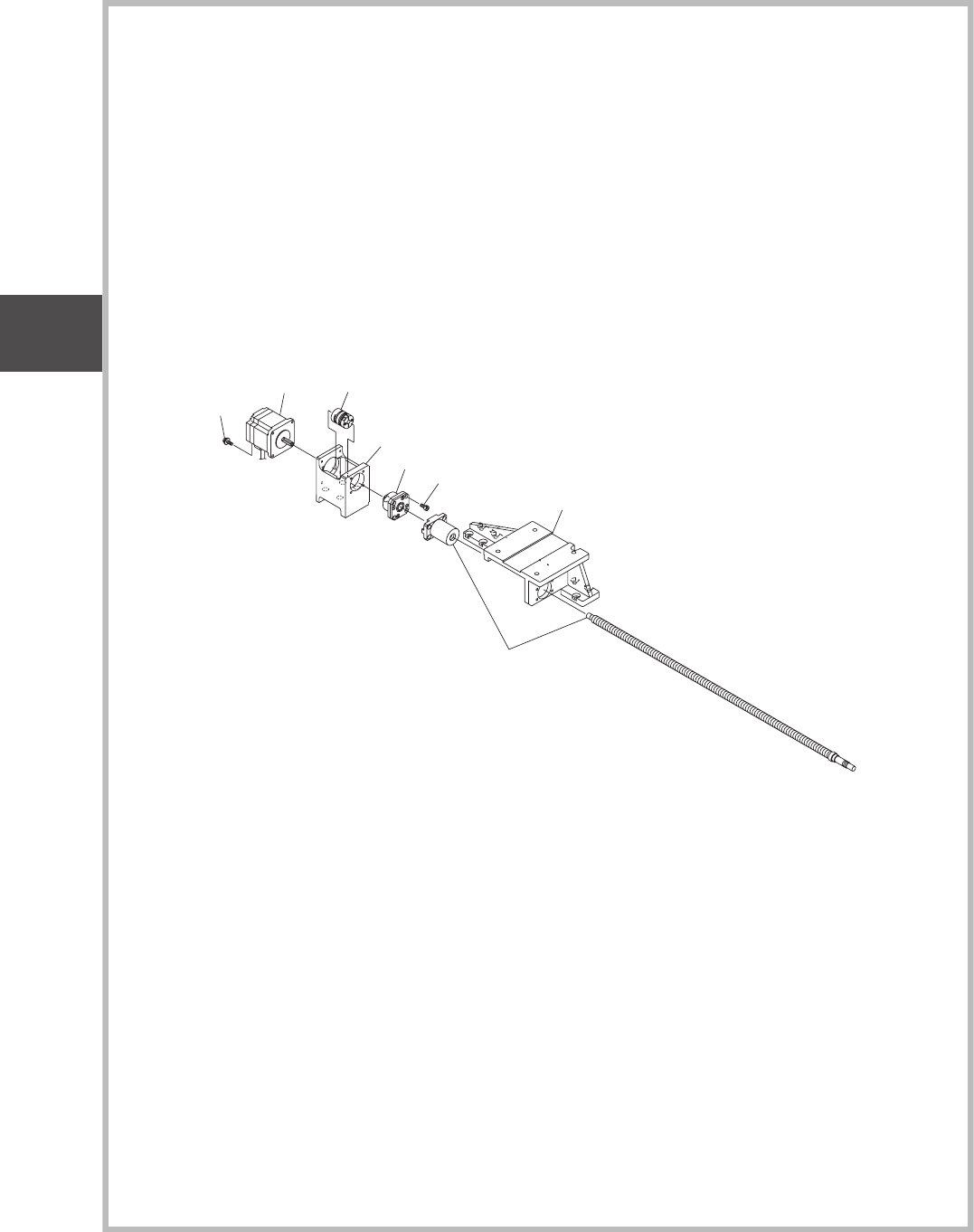

Fig. C1-4

スキージ

軸駆動部

Squeegee Y Axis Driving Section

304

309

303

302

308

312

311

310

301

See Fig.A1-2

Key No.170

0912-002

Fig. C1

スクリーンホルダ部

STENCIL HOLDER SECTION

UNIT-2

Fig. C1

STENCIL

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

0912-002

301 223B0441 BALL_SCREW 1 2090003100-001

302 222F0026 BEARING_UNIT 1 2090003100-002

303 211FD419 BRACKET 1 2090003100-003

304 09003107 ASSY_MOTOR 1 2090003100-004

308 221AA018 ROHS_HEX-SCT 4 2090003100-008

309 223C0260 COUPLING 1 2090003100-009

310 221AA018 ROHS_HEX-SCT 4 2090003100-010

311 221HA004 WASHER 4 2090003100-011

312 221HA104 WASHER 4 2090003100-012

Fig. C1

Fig. C1-4

UNIT-2

Fig. C1

STENCIL

SIGMA-P4
