P-311-003 - 第140页

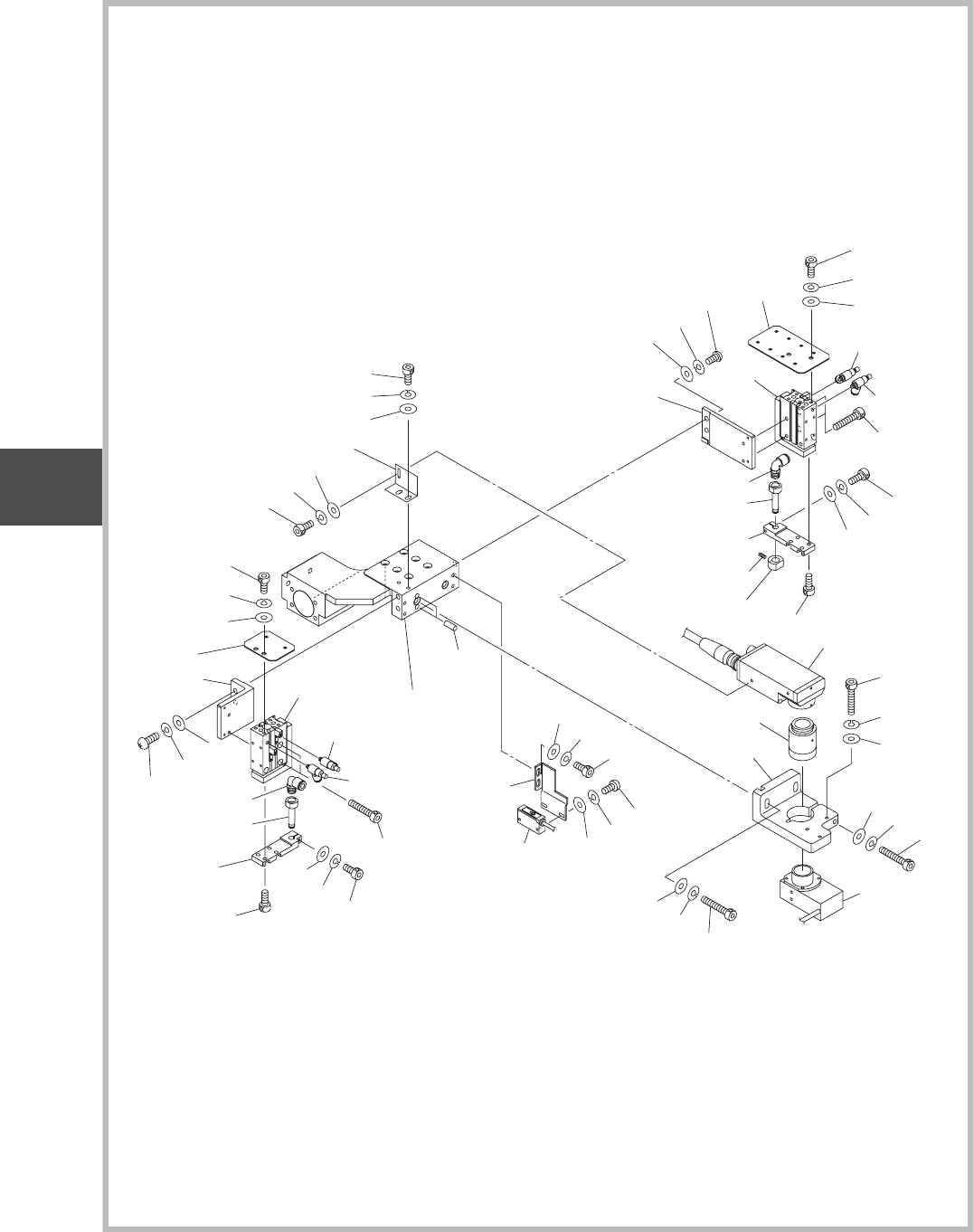

Fig. D1-2L 基板認識カメラ、バックアップピン自動段取り ( L 流れ ) PEC Recognition Camera, Back-Up Pin Auto Set Up(Left Flow) 120 139 1B3 1D3 1B2 1D2 107 138 193 192 197 198 199 1A0 196 195 194 1B5 1D5 1D5 1B6 1B1 1D6 1D1 1B5 1B4 1D4 151 150 153…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1 223B0448 BALL_SCREW 1 1090006133-001
2 222L0920 GUIDE_LINER 1 1090006133-002
3 0900610Y ASSY_MOTOR 1 1090006133-003
4 222F0026 BEARING_UNIT 1 1090006133-004
5 223C0259 COUPLING 1 1090006133-005
8 23G10056 SENSOR_PHOTO 2 1090006133-008
9 226J2574 CABLE_VEYOR 1 1090006133-009
12 0900G12Z BASE 1 1090006133-012
13 211FD630 BRACKET 1 1090006133-013
14 211G5892 BLOCK 1 1090006133-014
16 211FE598 BRACKET 1 1090006133-016
17 213D1309 DISK 1 1090006133-017
18 211FA443 BRACKET 1 1090006133-018
19 211AC860 COVER 1 1090006133-019
21 211DA955 PLATE 1 1090006133-021
41 221AA020 ROHS_HEX-SCT 11 1090006133-041
44 221AA044 ROHS_HEX-SCT 4 1090006133-044
45 221CA027 SET_SCREW 2 1090006133-045
46 221DA011 MACHINE_SCREW 4 1090006133-046
47 221HA003 WASHER 8 1090006133-047
48 221HA103 WASHER 8 1090006133-048
49 221AA042 ROHS_HEX-SCT 2 1090006133-049
50 221HA006 WASHER 2 1090006133-050
51 221HA106 WASHER 2 1090006133-051
52 221AA030 ROHS_HEX-SCT 6 1090006133-052
63 221DA213 MACHINE_SCREW 4 1090006133-063
64 221DA130 MACHINE_SCREW 2 1090006133-064
70 221DA207 MACHINE_SCREW 3 1090006133-070
71 221AA018 ROHS_HEX-SCT 3 1090006133-071
73 221AA031 ROHS_HEX-SCT 4 1090006133-073
82 221DA138 MACHINE_SCREW 2 1090006133-082
83 0900G12U BLOCK 1 1090006133-083
84 0900101E ASSY_SENSOR 1 1090006133-084
85 221DA010 MACHINE_SCREW 2 1090006133-085
86 221AA006 ROHS_HEX-SCT 2 1090006133-086
SIGMA-P4
Fig. D1
1102-003
Fig. D1-1
UNIT-3
Fig. D1
PEC RECG
Fig. D1-2L
基板認識カメラ、バックアップピン自動段取り (
L
流れ )
PEC Recognition Camera, Back-Up Pin Auto Set Up(Left Flow)
120
139
1B3
1D3
1B2
1D2
107
138
193
192
197
198
199
1A0
196
195
194
1B5
1D5
1D5
1B6
1B1
1D6
1D1
1B5
1B4
1D4
151
150
153
191
151
150
149
142
154
143
154
142
143
158
157
156
151
150
149
1B7
1B7
1B8
1C0
1E0
1B9
1D7
1D8
1D9
142
154
143
1D7
172
129
See Fig.D1-1
Key No.14
143
142
154
148
155
115
106
147
1102-003
Fig. D1
基板認識部
PEC RECOGNITION SECTION
UNIT-3
Fig. D1
PEC RECG
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
106 0900610W ASSY_SENSOR 1 1090006133-006
107 216E0438 PIN_LOCATE 2 1090006133-007
115 0900G11A BRACKET 1 1090006133-015
120 211FA010 BRACKET 1 1090006133-020
129 0900G12P BLOCK 1 1090006133-029
138 0900G118 COVER 1 1090006133-038
139 0900G119 COVER 1 1090006133-039
142 221HA004 WASHER 6 1090006133-042
143 221HA104 WASHER 6 1090006133-043
147 221HA003 WASHER 2 1090006133-047
148 221HA103 WASHER 2 1090006133-048
149 221AA042 ROHS_HEX-SCT 4 1090006133-049
150 221HA006 WASHER 6 1090006133-050
151 221HA106 WASHER 6 1090006133-051
153 221AA045 ROHS_HEX-SCT 2 1090006133-053
154 221AA017 ROHS_HEX-SCT 6 1090006133-054
155 221DA011 MACHINE_SCREW 2 1090006133-055
156 221AA001 ROHS_HEX-SCT 1 1090006133-056
157 221HA001 WASHER 1 1090006133-057
158 221HA101 WASHER 1 1090006133-058
172 221CA026 SET_SCREW 1 1090006133-072
191 211FA313 BRACKET 1 309000610L-001
192 4U220095 UNIT CAMERA 1 309000610L-002
193 4Z100143 SCOPE_UNIT 1 309000610L-003
194 4Z110174 LIGHTING_UNIT 1 309000610L-004
195 221AA036 ROHS_HEX-SCT 1 309000610L-005
196 221HA005 WASHER 1 309000610L-006
197 221HA105 WASHER 1 309000610L-007
198 221AA010 ROHS_HEX-SCT 3 309000610L-008
199 221HA003 WASHER 3 309000610L-009
1A0 221HA103 WASHER 3 309000610L-010
1B1 0900G10J NOZZLE 1 309000610M-001
1B2 0900G10A BRACKET 1 309000610M-002
1B3 0900G12K BRACKET 1 309000610M-003
1B4 0900611K ASSY_CYLINDER_2 1 309000610M-004
1B5 0900G110 AIR_LINE_EQPT 2 309000610M-005
1B6 225F0307 PIPE_FITTINGS 1 309000610M-006
1B7 221AA017 ROHS_HEX-SCT 5 309000610M-007
1B8 221HA004 WASHER 1 309000610M-008
1B9 221HA104 WASHER 1 309000610M-009
1C0 221AA021 ROHS_HEX-SCT 2 309000610M-010
1D1 0900G10J NOZZLE 1 309000610N-001
1D2 0900G10A BRACKET 1 309000610N-002
1D3 0900G12H BRACKET 1 309000610N-003
1D4 0900610V ASSY_CYLINDER_1 1 309000610N-004
Fig. D1
1102-003
Fig. D1-2L
UNIT-3
Fig. D1
PEC RECG
SIGMA-P4
