Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 401 223B0437 BALL_SCREW 1 209000610P-001 402 222F0026 BEARING_UNIT 1 209000610P-002 403 223C0260 COUPLING 1 209000610P-003 404 0900G12C BRACKET 1 209000610P-004 405 21 1DE…

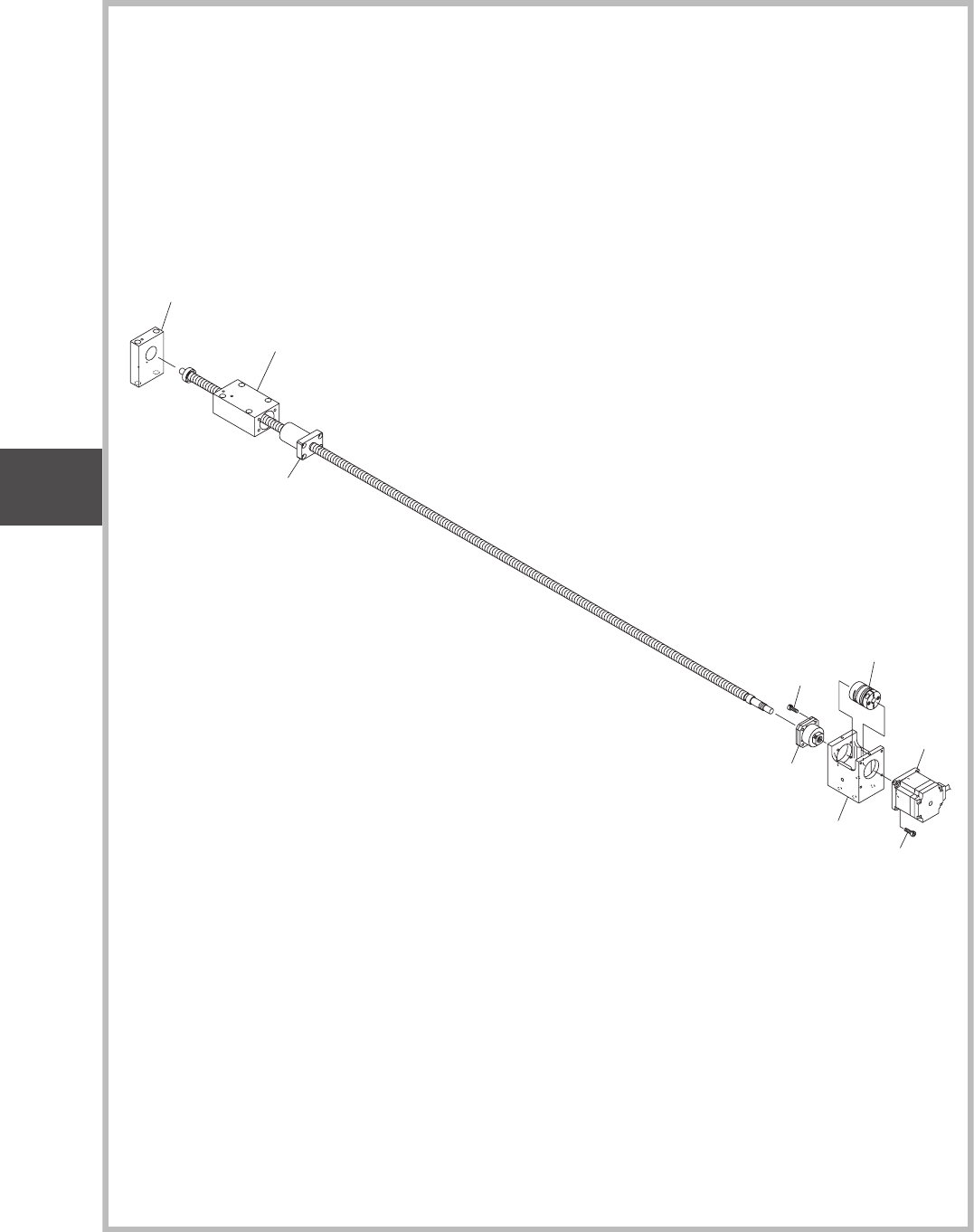

Fig. D1-5
Y
軸駆動部
Y Axis Driving Section
405
401
404
408
407
402
403
406
See Fig. A-1
Key No. 34
0912-002
Fig. D1
基板認識部
PEC RECOGNITION SECTION
UNIT-3
Fig. D1
PEC RECG
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 223B0437 BALL_SCREW 1 209000610P-001
402 222F0026 BEARING_UNIT 1 209000610P-002
403 223C0260 COUPLING 1 209000610P-003
404 0900G12C BRACKET 1 209000610P-004
405 211DE050 PLATE 1 209000610P-005
406 0900610X ASSY_MOTOR 1 209000610P-006
407 221AA020 ROHS_HEX-SCT 4 209000610P-007
408 221AA018 ROHS_HEX-SCT 4 209000610P-008
Fig. D1
0912-002
Fig. D1-5
UNIT-3
Fig. D1
PEC RECG
SIGMA-P4

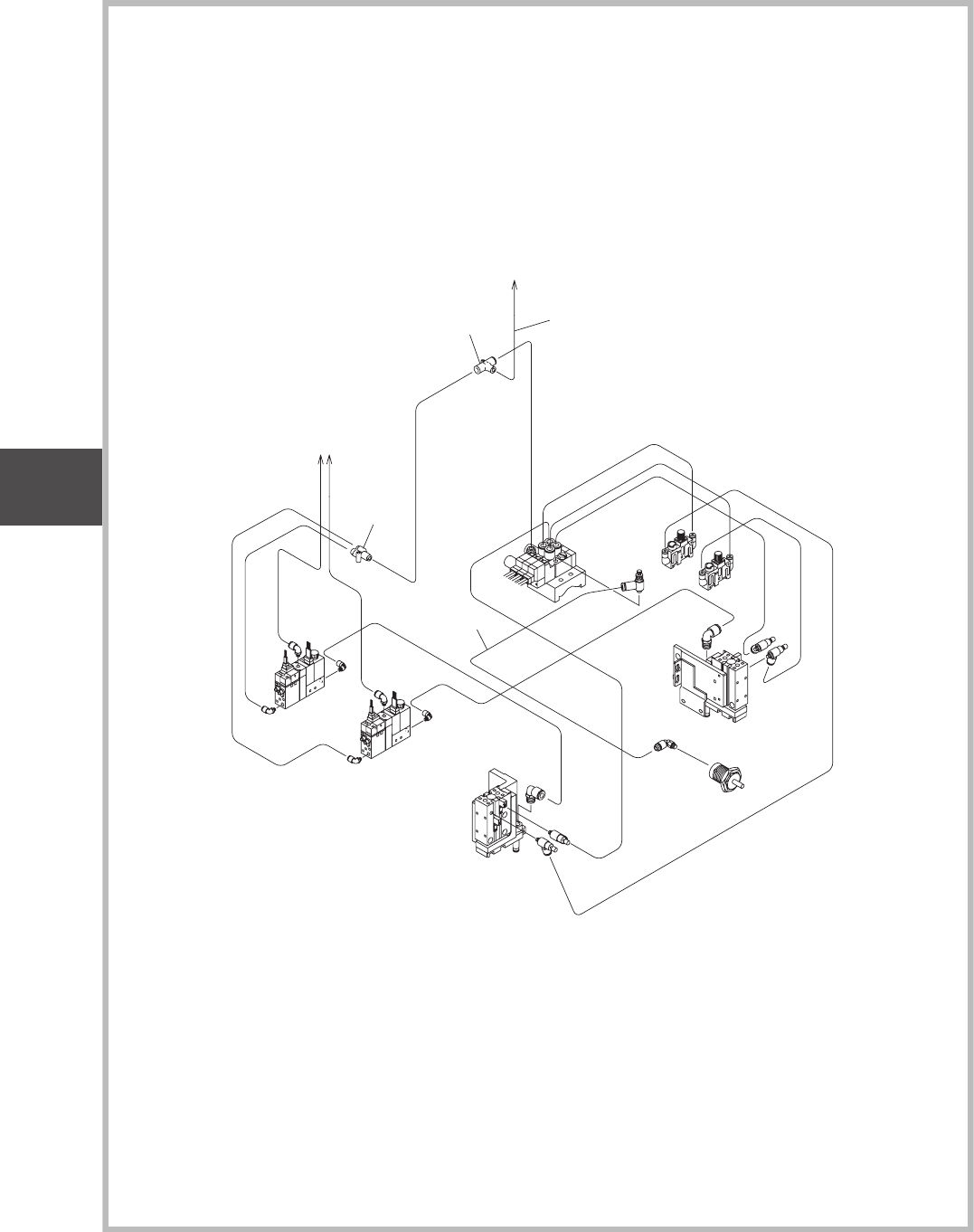

Fig. D1-6
エア配管
Air Piping
501
503
502
504
From Main Body
To Main Body
0912-002
Fig. D1
基板認識部
PEC RECOGNITION SECTION
UNIT-3
Fig. D1
PEC RECG
