P-311-003 - 第172页

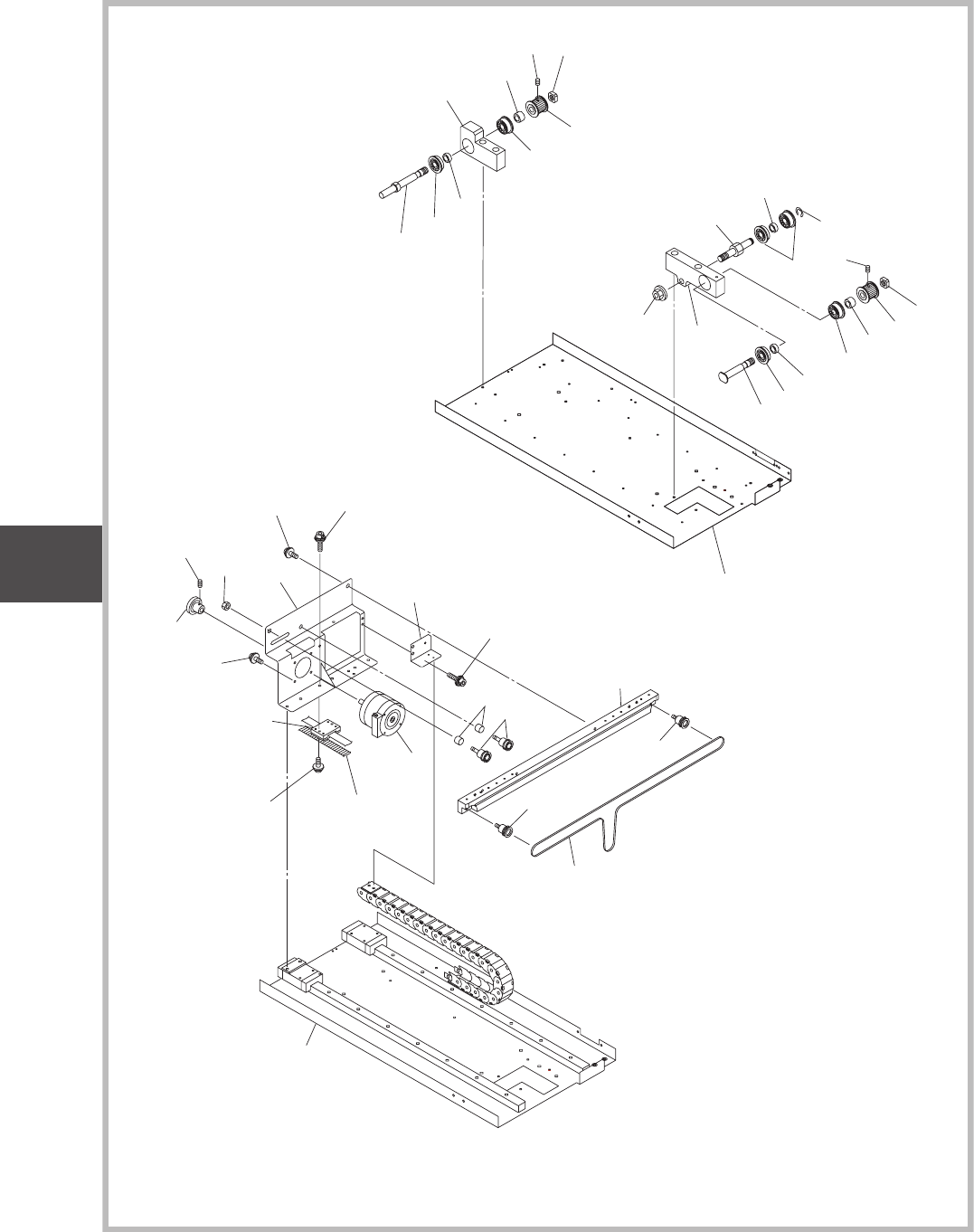

Fig. E1-3 可動シュート L Movable Chute L Key No.16 See Fig. E1-1 Key No.6 See Fig. E1-1 Key No.6 See Fig. E1-1 235 233 242 241 240 237 238 255 239 256 243 258 233 254 251 253 234 236 236 236 257 257 232 252 231 222 221 220 1 1…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
101 0900C01F BLOCK 1 209000200A-001
102 0900C01K BRACKET 1 209000200A-002
103 0900C011 COLLAR 2 209000200A-003
104 0900C00W NUT_PLATE 1 209000200A-004
105 0900200R ASSY_MOTOR 1 209000200A-005
106 223Q0749 PULLEY_TIMING 1 209000200A-006
107 223Q0663 PULLEY_TIMING 2 209000200A-007
108 223M0059 PULLEY_FLAT 2 209000200A-008
109 223L0398 BELT_TIMING 1 209000200A-009
110 221AA030 ROHS_HEX-SCT 2 209000200A-010
111 221HA005 WASHER 2 209000200A-011
112 221HA105 WASHER 2 209000200A-012
113 221AA006 ROHS_HEX-SCT 4 209000200A-013
114 221HA003 WASHER 4 209000200A-014
115 221HA103 WASHER 4 209000200A-015
116 221CA027 SET_SCREW 2 209000200A-016
121 0900C002 BRACKET 1 309000200E-001
122 211DE380 PLATE 1 309000200E-002
123 216B1850 HOLDER 1 309000200E-003
124 222B0106 ROD_END 1 309000200E-004
125 0900200P ASSY_CYLINDER_1 1 309000200E-005
126 225B0001 AIR_LINE_EQPT 1 309000200E-006
127 225B0049 AIR_LINE_EQPT 1 309000200E-007
128 225F0612 PIPE_FITTINGS 1 309000200E-008
129 222J0232 BUSH_BALL 1 309000200E-009
130 222K0237 SHAFT_LINEAR 1 309000200E-010
131 221AA018 ROHS_HEX-SCT 1 309000200E-011
132 221HA004 WASHER 1 309000200E-012
133 221HA104 WASHER 1 309000200E-013
134 221AA007 ROHS_HEX-SCT 2 309000200E-014
135 221HA003 WASHER 2 309000200E-015
136 221HA103 WASHER 2 309000200E-016
137 221DA220 RO_MACHIN_SCREW 2 309000200E-017
141 0900C017 TUBE_D4 1 4090002015-001
1102-003
Fig. E1-2
Fig. E1
UNIT-4
Fig. E1
CONVEYOR1
SIGMA-P4
Fig. E1-3
可動シュート
L
Movable Chute L
Key No.16
See Fig. E1-1
Key No.6
See Fig. E1-1
Key No.6
See Fig. E1-1
235
233
242
241
240
237
238
255
239
256
243
258
233
254
251
253
234
236
236
236
257
257
232
252
231
222
221
220
112
205
208
203
207
207
201
214
213
219
222
221
220
210
204
214
213
212
202
217
216
215
218
209
206
1102-003
Fig. E1
コンベア部 ( 手前基準Ｌ流れ )
CONVEYOR SECTION(FRONT REFERENCE LEFT FLOW)
UNIT-4
Fig. E1
CONVEYOR1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 0900C01F BLOCK 1 209000200B-001
202 0900C01L BRACKET 1 209000200B-002
203 0900C011 COLLAR 2 209000200B-003
204 0900C00W NUT_PLATE 1 209000200B-004
205 0900200S ASSY_MOTOR 1 209000200B-005
206 223Q0749 PULLEY_TIMING 1 209000200B-006
207 223Q0663 PULLEY_TIMING 2 209000200B-007
208 223M0059 PULLEY_FLAT 2 209000200B-008
209 223L0398 BELT_TIMING 1 209000200B-009
210 211DE704 PLATE 1 209000200B-010
211 211DE055 PLATE 1 209000200B-011
212 221AA030 ROHS_HEX-SCT 2 209000200B-012
213 221HA005 WASHER 4 209000200B-013
214 221HA105 WASHER 4 209000200B-014
215 221AA006 ROHS_HEX-SCT 4 209000200B-015
216 221HA003 WASHER 4 209000200B-016
217 221HA103 WASHER 4 209000200B-017
218 221CA027 SET_SCREW 2 209000200B-018
219 221AA029 ROHS_HEX-SCT 2 209000200B-019
220 221AA016 ROHS_HEX-SCT 2 209000200B-020
221 221HA004 WASHER 2 209000200B-021
222 221HA104 WASHER 2 209000200B-022
231 211G6064 BLOCK 1 3090002008-001
232 213A1487 SHAFT 1 3090002008-002
233 216A1618 COLLAR 2 3090002008-003
234 213A1146 SHAFT 1 3090002008-004
235 216A1619 COLLAR 1 3090002008-005
236 222D0020 BEARING_RADIAL 4 3090002008-006
237 221K0099 RING 1 3090002008-007
238 223Q0548 PULLEY_TIMING 1 3090002008-008
239 221G0220 NUT 1 3090002008-009
240 221FA013 NUT_HEX 1 3090002008-010
241 221HA007 WASHER 1 3090002008-011
242 221HA107 WASHER 1 3090002008-012
243 221CA027 SET_SCREW 2 3090002008-013
251 211G6066 BLOCK 1 309000200C-001
252 213A1611 SHAFT 1 309000200C-002
253 216A1618 COLLAR 1 309000200C-003
254 216A1619 COLLAR 1 309000200C-004
255 223Q0548 PULLEY_TIMING 1 309000200C-005
256 221G0220 NUT 1 309000200C-006
257 222D0020 BEARING_RADIAL 2 309000200C-007
258 221CA027 SET_SCREW 2 309000200C-008
1102-003
Fig. E1-3
Fig. E1
UNIT-4
Fig. E1
CONVEYOR1
SIGMA-P4
