P-311-003 - 第177页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 352 221DA059 MACHINE_SCREW 2 109000201R-052 353 221DA001 MACHINE_SCREW 2 109000201R-053 354 221CA027 SET_SCREW 2 109000201R-054 361 0900C018 TUBE_D4 1 4090002016-001 1 102…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. E1-4
306 0900C004 PLATE 1 109000201R-006
307 211DE056 PLATE 2 109000201R-007
308 0900C005 ROD 1 109000201R-008
309 211DE521 PLATE 1 109000201R-009
310 211FD648 BRACKET 1 109000201R-010
311 211FE893 BRACKET 2 109000201R-011
312 211FE540 BRACKET 1 109000201R-012
313 0900C01P BRACKET 1 109000201R-013
314 211FA032 BRACKET 1 109000201R-014
315 211FD657 BRACKET 1 109000201R-015
316 223L0396 BELT_TIMING 1 109000201R-016
317 23G10056 SENSOR_PHOTO 1 109000201R-017
318 223Q0762 PULLEY_TIMING 1 109000201R-018
319 0900200Q ASSY_MOTOR 1 109000201R-019
320 226J2575 MECH PARTS 1 109000201R-020
321 222L0957 GUIDE_INER 2 109000201R-021
322 226J2593 SHAFT 2 109000201R-022
323 0900200M ASSY_SENSOR 1 109000201R-023
324 0900200N ASSY_SENSOR 1 109000201R-024
325 0900200T ASSY_VALVE 1 109000201R-025
326 225B0059 AIR LINE EQPT 2 109000201R-026
327 225F0656 PIPE_FITTINGS 1 109000201R-027
328 224C0410 CYLINDER 1 109000201R-028
329 225B0001 AIR_LINE_EQPT 2 109000201R-029
331 221AA029 ROHS_HEX-SCT 4 109000201R-031
332 221AA030 ROHS_HEX-SCT 8 109000201R-032
333 221AA031 ROHS_HEX-SCT 2 109000201R-033
334 221AA033 ROHS_HEX-SCT 4 109000201R-034
335 221HA005 WASHER 14 109000201R-035
336 221HA105 WASHER 10 109000201R-036
337 221HA303 ROHS_WASHER 4 109000201R-037
338 221AA016 ROHS_HEX-SCT 2 109000201R-038
339 221AA017 ROHS_HEX-SCT 3 109000201R-039
340 221AA020 ROHS_HEX-SCT 7 109000201R-040
341 221HA004 WASHER 12 109000201R-041
342 221HA104 WASHER 12 109000201R-042
343 221AA006 ROHS_HEX-SCT 4 109000201R-043
344 221AA008 ROHS_HEX-SCT 4 109000201R-044
345 221AA010 ROHS_HEX-SCT 12 109000201R-045
346 221HA003 WASHER 4 109000201R-046
347 221HA103 WASHER 4 109000201R-047
348 221FA007 NUT_HEX 2 109000201R-048
349 221DA202 MACHINE_SCREW 2 109000201R-049
350 221DA203 MACHINE_SCREW 1 109000201R-050
351 221DA056 MACHINE_SCREW 2 109000201R-051
1102-003
Fig. E1
UNIT-4
Fig. E1
CONVEYOR1
SIGMA-P4
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
352 221DA059 MACHINE_SCREW 2 109000201R-052
353 221DA001 MACHINE_SCREW 2 109000201R-053
354 221CA027 SET_SCREW 2 109000201R-054
361 0900C018 TUBE_D4 1 4090002016-001
1102-003
Fig. E1-4
Fig. E1
UNIT-4
Fig. E1
CONVEYOR1
SIGMA-P4

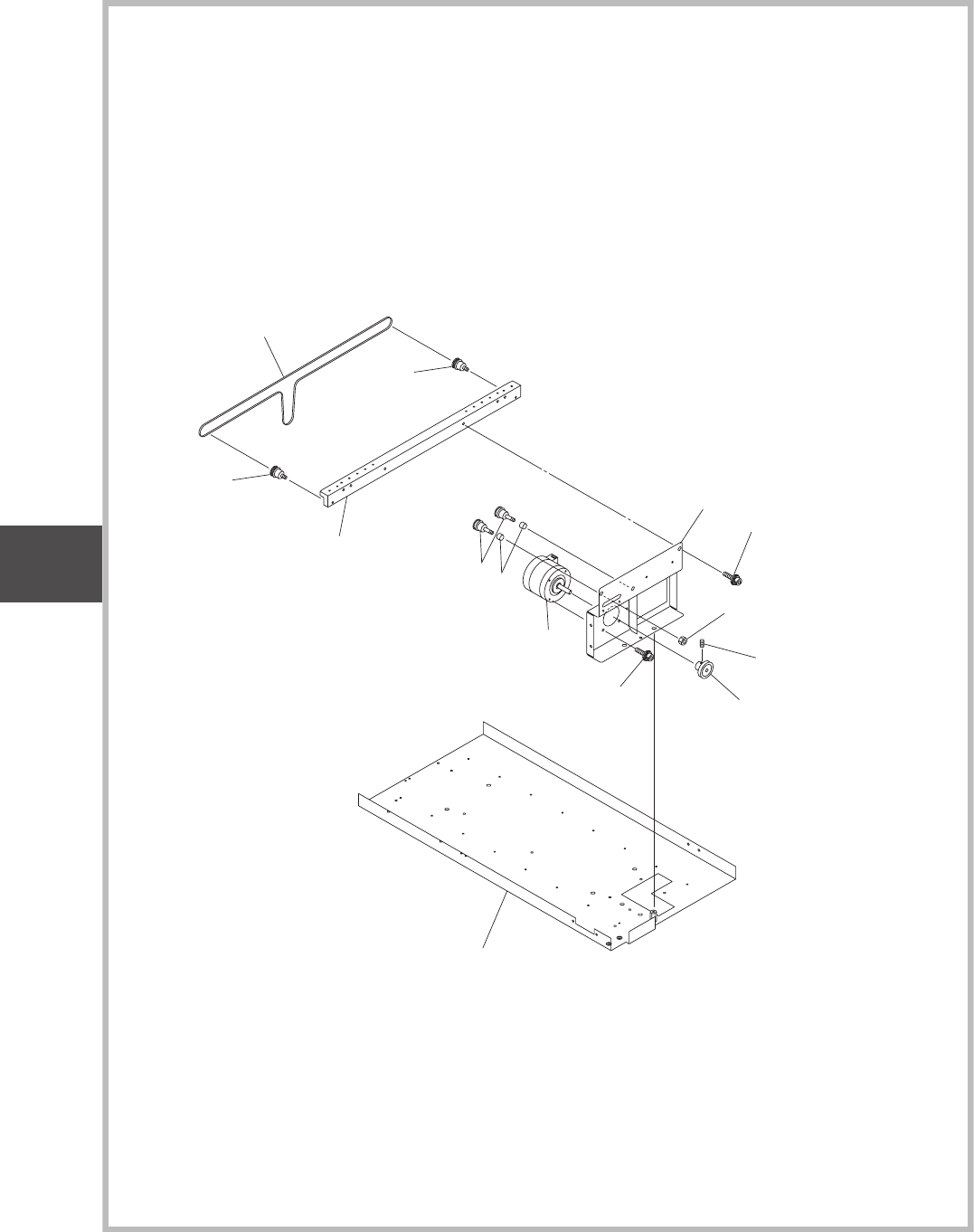

Fig. E1-5
固定シュート
R
Fixed Chute R
Key No.306
See Fig. E1-4
404
416
415
414
413
412
114
410
403
408
409
407
407
402
401
406
405
1102-003
Fig. E1
コンベア部 ( 手前基準Ｌ流れ )
CONVEYOR SECTION(FRONT REFERENCE LEFT FLOW)
UNIT-4
Fig. E1
CONVEYOR1
