P-311-003 - 第230页

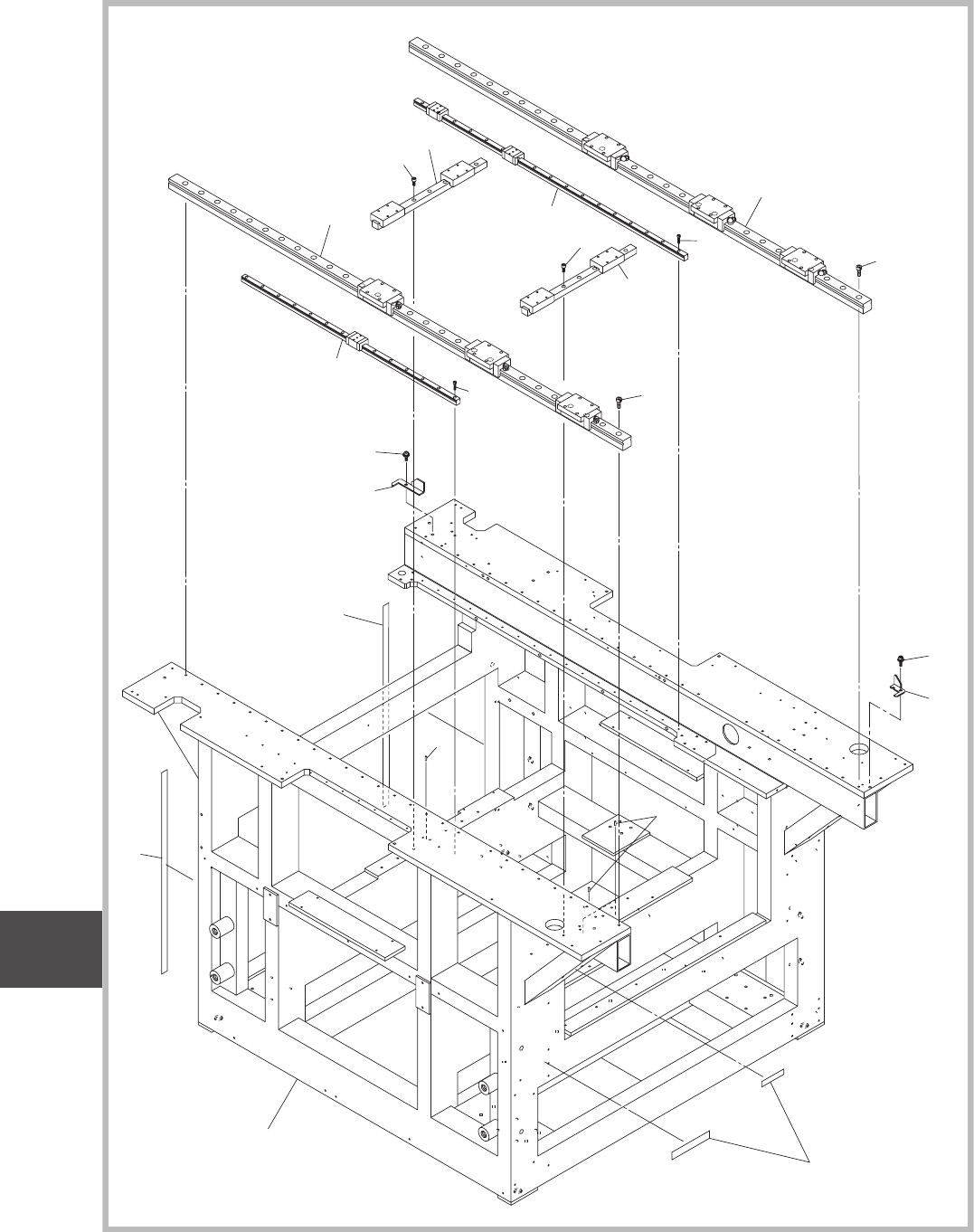

Fig. F2-1 リニアガイド Linear Guide Key No.3 See Fig. G1-1 21 21 10 10 13 13 8 9 21 5 13 4 13 16 15 16 15 12 1 1 7 14 6 14 1 102-003 Fig. F2 ブロアユニット BLOWER UNIT UNIT -5 Fig. F2 BLOWER
1102-003
Fig. F2
0900100Z
DOUHAKU TAPE
09007105
BLOWER UNIT
09007106
BLOWER ASSY
0900100H
FRAME UNIT
09007104
FILTER ASSY
09007102
SHUTTER ASSY
PARTS
(Fig. F2-3 Key No.201-215)
PARTS
(Fig. F2-3 Key No.221-224)
PARTS
(Fig. F2-2 Key No.161-168)
PARTS
(Fig. F2-2 Key No.131-157)
PARTS
(Fig. F2-1 Key No.21)
PARTS
(Fig. F2-1 Key No.4-16
Fig. F2-2 Key No.1
19-121)
Fig. F2-A2
UNIT-5
Fig. F2
BLOWER
Fig. F2-1
リニアガイド
Linear Guide
Key No.3
See Fig. G1-1
21
21
10
10
13
13
8
9
21
5
13
4
13
16
15
16
15
12
11
7
14
6
14
1102-003
Fig. F2
ブロアユニット
BLOWER UNIT
UNIT-5
Fig. F2
BLOWER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
0912-002
4 222L0984 GUIDE,LINEAR 1 109000100H-004
5 222L0983 GUIDE,LINEAR 1 109000100H-005
6 222L0982 GUIDE,LINEAR 1 109000100H-006
7 222L0919 GUIDE,LINEAR 1 109000100H-007
8 222L0986 GUIDE,LINEAR 1 109000100H-008
9 222L0914 GUIDE,LINEAR 1 109000100H-009
10 226J2593 MECH PARTS 9 109000100H-010
11 211J1655 STAY 1 109000100H-011
12 211J1656 STAY 1 109000100H-012
13 221AA044 ROHS_HEX-SCT 70 109000100H-013
14 221AA021 ROHS_HEX-SCT 31 109000100H-014
15 221AA053 ROHS_HEX-SCT 2 109000100H-015
16 221HA007 WASHER 2 109000100H-016
21 226A0177 SHIELD_TAPE 1 209000100Z-001
Fig. F2-1
Fig. F2
UNIT-5
Fig. F2
BLOWER
SIGMA-P4
