Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 1 102-003 309 225B0373 AIR_LINE_EQPT 1 109000101R-009 310 225F0064 PIPE_FITTINGS 1 109000101R-010 31 1 225F0064 PIPE_FITTINGS 4 109000101R-01 1 312 21 1AE198 COVER 1 10900…

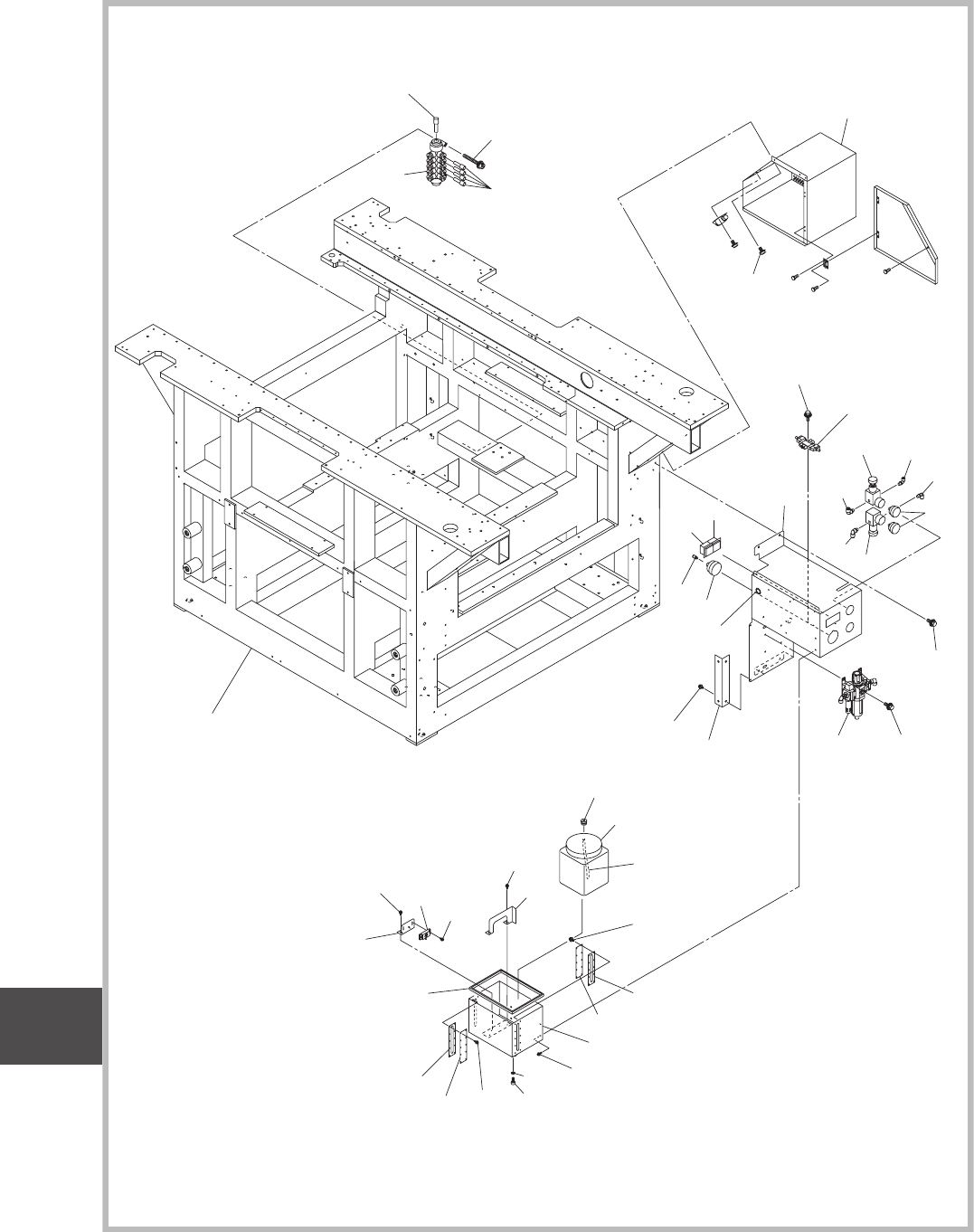

Fig. G1-4
エアコンビネーション、溶剤タンク
Air Combination, Solvent Tank
3D8
3D7
Key No.3
See Fig. G1-1
385
373
384
386
381
387
391
391
383
391
393
390
389
388
392
3B5
3B4
3B3
3B2
3B1
337
336
346
336
337
346
397
396
395
353
382
342
341
340
399
398
341
340
343
312
309
310
113
3C9
3C8
3C3
3C7
3C6
3C5
3C4
3C1
3C2
3D6
3D5
3D4
3D3
3D1
3D2
341
340
354
3D2
3D1
3D0
3D2
3D1
3D0
3C6
3D9
3C5
3D3
3D1
3D2
3A0
1102-003
Fig. G1
メカ廻り
MECHANICAL DISTRIBUTION
UNIT-6
Fig. G1
MECHA
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1102-003
309 225B0373 AIR_LINE_EQPT 1 109000101R-009
310 225F0064 PIPE_FITTINGS 1 109000101R-010
311 225F0064 PIPE_FITTINGS 4 109000101R-011
312 211AE198 COVER 1 109000101R-012
336 221AA030 ROHS_HEX-SCT 4 109000101R-036
337 221HA005 WASHER 4 109000101R-037
340 221HA004 WASHER 4 109000101R-040
341 221HA104 WASHER 4 109000101R-041
342 221AA023 ROHS_HEX-SCT 2 109000101R-042
343 221AA018 ROHS_HEX-SCT 2 109000101R-043
346 221HA303 ROHS_WASHER 4 109000101R-046
353 211J1658 STAY 1 109000101R-053
354 221AA016 ROHS_HEX-SCT 4 109000101R-054
373 0900H010 GROMMETS 1 109000101R-073
381 09001007 ASSY_SENSOR 1 109000101K-001
382 0900B01J BRACKET 1 109000101K-002
383 225B0618 AIR_LINE_EQPT 2 109000101K-003
384 225B0501 AIR_LINE_EQPT 1 109000101K-004
385 225F0566 PIPE_FITTINGS 1 109000101K-005
386 09001008 ASSY_SWITCH 1 109000101K-006
387 225B0423 AIR_LINE_EQPT 1 109000101K-007
388 0900100C ASSY_VALVE 1 109000101K-008
389 225B0059 AIR_LINE_EQPT 2 109000101K-009
390 225F0577 PIPE_FITTINGS 1 109000101K-010
391 225F0407 PIPE_FITTINGS 3 109000101K-011
392 225B0354 AIR_LINE_EQPT 1 109000101K-012
393 225F0307 PIPE_FITTINGS 1 109000101K-013
395 221AA042 ROHS_HEX-SCT 4 109000101K-015
396 221HA006 WASHER 4 109000101K-016
397 221HA106 WASHER 4 109000101K-017
398 221AA005 ROHS_HEX-SCT 2 109000101K-018
399 221HA003 WASHER 2 109000101K-019
3A0 221HA103 WASHER 2 109000101K-020
3B1 225B0617 AIR_LINE_EQPT 1 3090001005-001
3B2 225F0073 PIPE_FITTINGS 1 3090001005-002
3B3 225F0087 PIPE_FITTINGS 1 3090001005-003
3B4 225F0407 PIPE_FITTINGS 1 3090001005-004
3B5 225F0163 PIPE_FITTINGS 1 3090001005-005
3C1 211FE559 BRACKET 1 309000700N-001
3C2 211FE186 BRACKET 1 309000700N-002
3C3 216P0008 TANK 1 309000700N-003
3C4 0900H103 BRACKET 1 309000700N-004
3C5 211H0471 SHEET 2 309000700N-005
3C6 211DF017 PLATE 2 309000700N-006
3C7 09007004 ASSY_SENSOR 1 309000700N-007
Fig. G1-4
Fig. G1
UNIT-6
Fig. G1
MECHA
SIGMA-P4
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
3C8 226J2638 MECH_PARTS 1 309000700N-008
3C9 225G0361 TUBE 1 309000700N-009
3D0 221AA015 ROHS_HEX-SCT 4 309000700N-010
3D1 221HA004 WASHER 24 309000700N-011
3D2 221HA104 WASHER 24 309000700N-012
3D3 221AA016 ROHS_HEX-SCT 20 309000700N-013
3D4 221AA007 ROHS_HEX-SCT 2 309000700N-014
3D5 221HA003 WASHER 2 309000700N-015
3D6 221HA103 WASHER 2 309000700N-016
3D7 221AA028 ROHS_HEX-SCT 1 309000700N-017
3D8 0900H014 WASHER 1 309000700N-018
3D9 23N30585 ACCESSORY_WIRING 4 309000700N-019
Fig. G1-4
1102-003
Fig. G1
UNIT-6
Fig. G1
MECHA
SIGMA-P4
