Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 1 102-003 404 0900F1 1F GUL_COVER_BRACK 1 10900051 13-004 405 0900F1 1G GUL_COVER_BRACK 1 10900051 13-005 406 0913F21C ROCK_KEY_BRA_A 1 10900051 13-006 407 0913F21D ROCK_K…

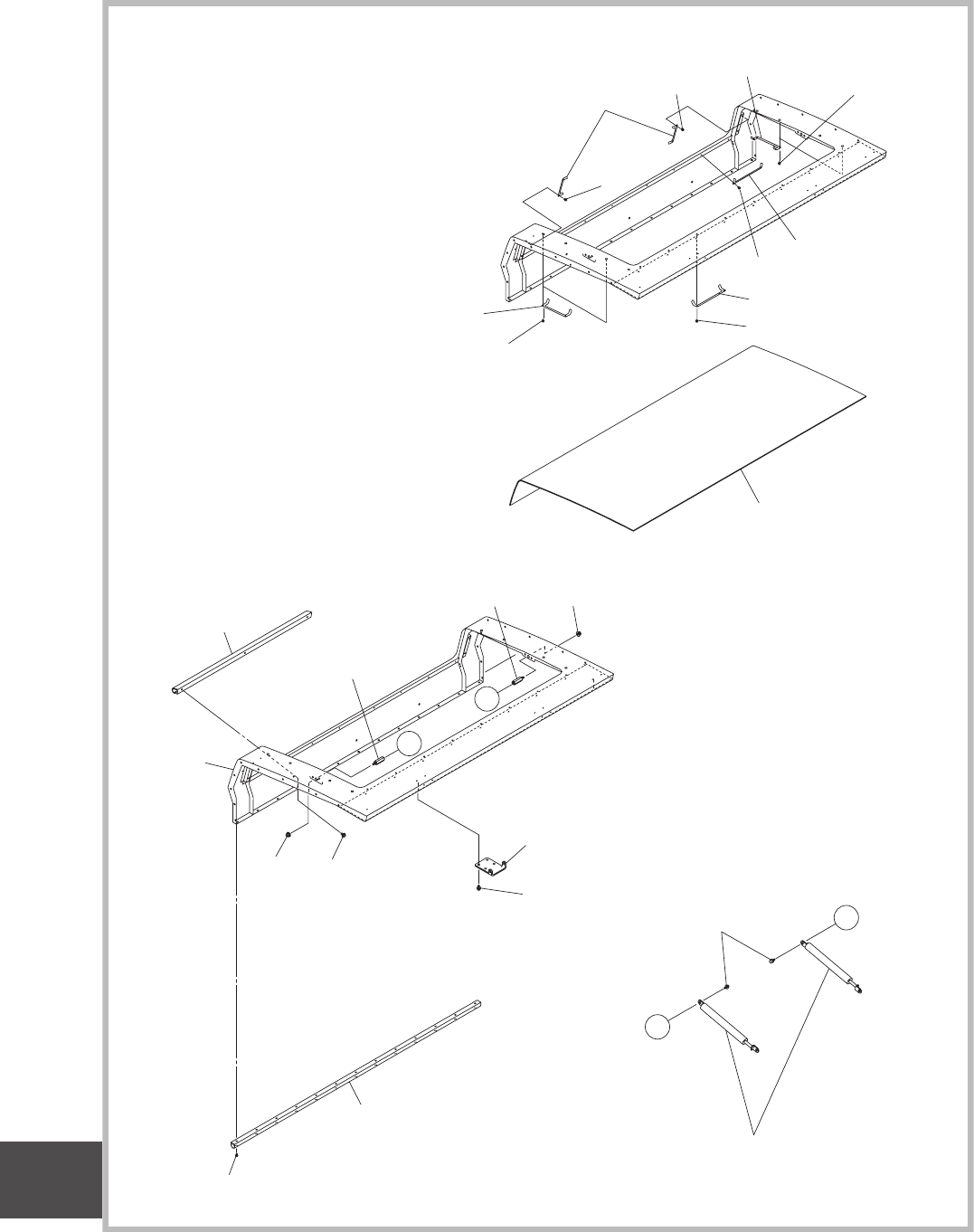

Fig. I1-5
開閉扉
LR-F
O/C Door LR-F
454
434
432
431
431
431
431
434
426
425
421
422
423
423
423
423
424
427
432
442
445
441
444
447
454
452
446
443
443
443
443
451
451
451
451
See Fig R1-4
Key No.321
452
410
404
411
412
413
411
412
413
405
409
412
413
409
412
413
409
412
413
408
406
407
C
C
D
D
1102-003
Fig. I1
カバー部
COVER SECTION
UNIT-8
Fig. I1
COVER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1102-003
404 0900F11F GUL_COVER_BRACK 1 1090005113-004
405 0900F11G GUL_COVER_BRACK 1 1090005113-005
406 0913F21C ROCK_KEY_BRA_A 1 1090005113-006
407 0913F21D ROCK_KEY_BRA_B 1 1090005113-007
408 23H20053 ACCESS_SW_(KEY) 1 1090005113-008
409 221EA100 ROHS_BOLT 6 1090005113-009
410 221DA051 SEMS_PANHEADSCR 18 1090005113-010
411 221AA016 ROHS_HEX-SCT 10 1090005113-011
412 221HA004 WASHER 16 1090005113-012
413 221HA104 WASHER 16 1090005113-013
421 0900F118 F_GUL_SIDE_L 1 109000510Y-001
422 0913F21V F_GUL_SIDE_WIND 1 109000510Y-002
423 0913F20J SIDE_WIDEHOLDER 8 109000510Y-003
424 0913F20R UNDER_COUSION_A 1 109000510Y-004
425 0913F20T UNDER_COUSION_C 1 109000510Y-005
426 0913F20X REAR_BLOCK_B 1 109000510Y-006
427 0900F10V GUL_UNDER_BLOCK 1 109000510Y-007
431 221DA051 SEMS_PANHEADSCR 16 109000510Y-011
432 221DA059 MACHINE_SCREW 9 109000510Y-012
434 221DA046 MACHINE SCREW 4 109000510Y-014
441 0900F119 F_GUL_SIDE_R 1 109000510Z-001
442 0913F21V F_GUL_SIDE_WIND 1 109000510Z-002
443 0913F20J SIDE_WIDEHOLDER 8 109000510Z-003
444 0913F20R UNDER_COUSION_A 1 109000510Z-004
445 0913F20T UNDER_COUSION_C 1 109000510Z-005
446 0913F20W REAR_BLOCK_A 1 109000510Z-006
447 0900F10V GUL_UNDER_BLOCK 1 109000510Z-007
451 221DA051 SEMS_PANHEADSCR 16 109000510Z-011
452 221DA059 MACHINE_SCREW 9 109000510Z-012
454 221DA046 MACHINE SCREW 4 109000510Z-014
Fig. I1-5
Fig. I1
UNIT-8
Fig. I1
COVER
SIGMA-P4
Fig. I1-6
開閉扉
C-R
O/C Door C-R
538
539
540
534
533
533
533
533
533
521
535
536
537
535
536
537
526
504
505
506
F
E
527
522
528
528
524
525
525
525
523
533
See Fig R1-3
Key No.229
See Fig. R1-3
Key No.229
F
E
510
508
511
0912-002
Fig. I1
カバー部
COVER SECTION
UNIT-8
Fig. I1
COVER
