Fig. I1-7 開閉扉 LR-R O/C Door LR-R 640 640 639 639 638 638 628 628 628 630 629 629 630 638 638 631 632 622 627 623 623 621 624 625 626 633 633 636 635 634 637 See Fig.R1-6 Key No.521 610 605 604 61 1 612 613 61 1 612 613 G…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
0912-002
Fig. I1-6
Fig. I1
504 221AA120 ROHS:BOLT_HEX-SCT 8 1090005115-004
505 221HA105 WASHER 8 1090005115-005
506 221HA007 WASHER 8 1090005115-006
508 221HA007 WASHER 2 1090005115-008
510 221AA030 ROHS_HEX-SCT 2 1090005115-010
511 221HA303 ROHS_WASHER 2 1090005115-011
521 0900F117 R_GUL_MIDDLE 1 1090005110-001
522 0900F11D B_GUL_TOP_WIND 1 1090005110-002
523 0900F11C TOP_WIND_HOLDER_D 4 1090005110-003
524 0913F20L TOP_WIND_OSAE_B 4 1090005110-004
525 0913F21W TOP_WIND_OSAE_G 6 1090005110-005
526 211J1659 STAY 1 1090005110-006
527 0913F20U UNDER_COUSION_D 1 1090005110-007
528 221C0112 SET_SCREW 2 1090005110-008
533 221DA051 SEMS_PANHEADSCR 28 1090005110-013
534 221DA059 MACHINE_SCREW 13 1090005110-014
535 221FA011 NUT_HEX 2 1090005110-015
536 221HA006 WASHER 2 1090005110-016
537 221HA106 WASHER 2 1090005110-017
538 221AA029 ROHS_HEX-SCT 3 1090005110-018
539 221HA005 WASHER 3 1090005110-019
540 221HA105 WASHER 3 1090005110-020
UNIT-8
Fig. I1
COVER
SIGMA-P4

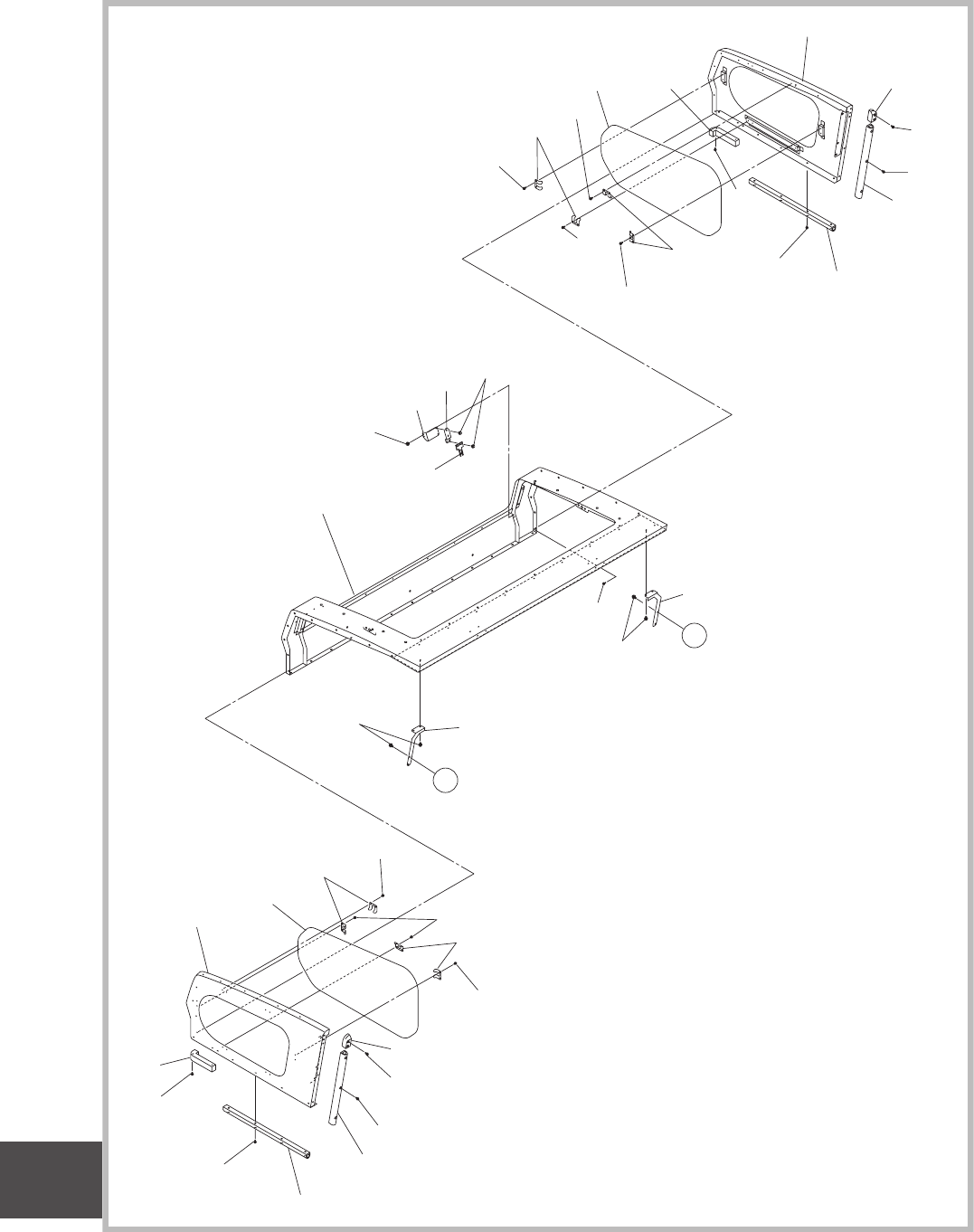

Fig. I1-7
開閉扉
LR-R
O/C Door LR-R
640
640
639
639
638
638
628
628
628
630
629
629
630
638
638
631
632
622
627
623
623
621
624
625
626
633
633
636
635
634
637
See Fig.R1-6
Key No.521
610
605
604
611
612
613
611
612
613
G
H
609
612
613
609
612
613
608
606
607
0912-002
Fig. I1
カバー部
COVER SECTION
UNIT-8
Fig. I1
COVER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1102-003
Fig. I1-7
Fig. I1
604 0900F11F GUL_COVER_BRACK 1 1090005114-004
605 0900F11G GUL_COVER_BRACK 1 1090005114-005
606 0913F21C ROCK_KEY_BRA_A 1 1090005114-006
607 0913F21D ROCK_KEY_BRA_B 1 1090005114-007
608 23H20053 ACCESS_SW_(KEY) 1 1090005114-008
609 221EA100 ROHS_BOLT 6 1090005114-009
610 221DA051 SEMS_PANHEADSCR 18 1090005114-010
611 221AA016 ROHS_HEX-SCT 10 1090005114-011
612 221HA004 WASHER 16 1090005114-012
613 221HA104 WASHER 16 1090005114-013
621 0900F11A R_GUL_SIDE_L 1 1090005111-001
622 0900F11E B_GUL_SIDE_WIND 1 1090005111-002
623 0913F20J SIDE_WIDEHOLDER 6 1090005111-003
624 0913F20S UNDER_COUSION_B 1 1090005111-004
625 0913F20T UNDER_COUSION_C 1 1090005111-005
626 0913F20X REAR_BLOCK_B 1 1090005111-006
627 0900F10V GUL_UNDER_BLOCK 1 1090005111-007
628 221DA051 SEMS_PANHEADSCR 12 1090005111-008
629 221DA059 MACHINE_SCREW 8 1090005111-009
630 221DA046 MACHINE SCREW 4 1090005111-010
631 0900F11B R_GUL_SIDE_R 1 1090005112-001
632 0900F11E B_GUL_SIDE_WIND 1 1090005112-002
633 0913F20J SIDE_WIDEHOLDER 6 1090005112-003
634 0913F20S UNDER_COUSION_B 1 1090005112-004
635 0913F20T UNDER_COUSION_C 1 1090005112-005
636 0913F20W REAR_BLOCK_A 1 1090005112-006
637 0900F10V GUL_UNDER_BLOCK 1 1090005112-007
638 221DA051 SEMS_PANHEADSCR 12 1090005112-008
639 221DA059 MACHINE_SCREW 8 1090005112-009
640 221DA046 MACHINE SCREW 4 1090005112-010
UNIT-8
Fig. I1
COVER
SIGMA-P4
