MEMO
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. B1-1R
1102-003
9 0900E01S SENSOR_BRACKET 1 109000404J-009
10 0900E01T SENSOR_BRACKET 1 109000404J-010
11 09004036 SENSOR_PHOTO 1 109000404J-011
12 23G10029 SENSOR,PHOTO 1 109000404J-012
13 211DD928 PLATE 1 109000404J-013
14 216A1637 COLLAR 1 109000404J-014
15 223L0383 BELT,TIMING 2 109000404J-015
16 222N1529 SPRING,ENSION 1 109000404J-016
17 211AD872 COVER 1 109000404J-017
18 211FD725 BRACKET 1 109000404J-018
19 225B0049 AIR LINE EQIP 2 109000404J-019
20 221FA019 ROHS_NUT_HEX 1 109000404J-020
21 221HA010 WASHER 1 109000404J-021
22 221HA111 WASHER 1 109000404J-022
23 221AA044 ROHS_HEX-SCT 13 109000404J-023
24 221AA031 ROHS_HEX-SCT 16 109000404J-024
25 221AA033 ROHS_HEX-SCT 4 109000404J-025
26 221HA005 WASHER 10 109000404J-026
27 221HA105 WASHER 10 109000404J-027
28 221AA019 ROHS_HEX-SCT 4 109000404J-028
29 221DA207 MACHINE_SCREW 2 109000404J-029
30 221AA029 ROHS_HEX-SCT 2 109000404J-030
31 221AA009 ROHS_HEX-SCT 4 109000404J-031
32 221HA003 WASHER 4 109000404J-032
33 221HA103 WASHER 4 109000404J-033
36 221AA030 ROHS_HEX-SCT 16 109000404J-036
37 221BA012 ROHS_HEX-SCT 2 109000404J-037
39 211AC821 COVER 2 109000404J-039
40 221HA006 WASHER 1 109000404J-040
41 211FD726 BRACKET 1 109000404J-041
43 221DA010 MACHINE_SCREW 2 109000404J-043
44 221HA003 WASHER 2 109000404J-044
45 221HA103 WASHER 2 109000404J-045
46 221AA017 ROHS_HEX-SCT 2 109000404J-046
47 221HA004 WASHER 2 109000404J-047
48 221HA104 WASHER 2 109000404J-048
Fig. B1
UNIT-1
Fig. B1
TABLE
SIGMA-P4
MEMO
Fig. B1-2
AL
テーブル
AL Table
119
119
119
119
120
127
127
128
131
132
127
128
131
132
127
129
132
133
159
160
161
141
142
112
1
13
106
129
132
133
123
124
125
121
134
144
143
135
136
105
114
158
1
16
115
107
156
154
155
157
128
132
133
138
139
140
130
159
137
128
126
122
1
17
108
109
118
0912-002

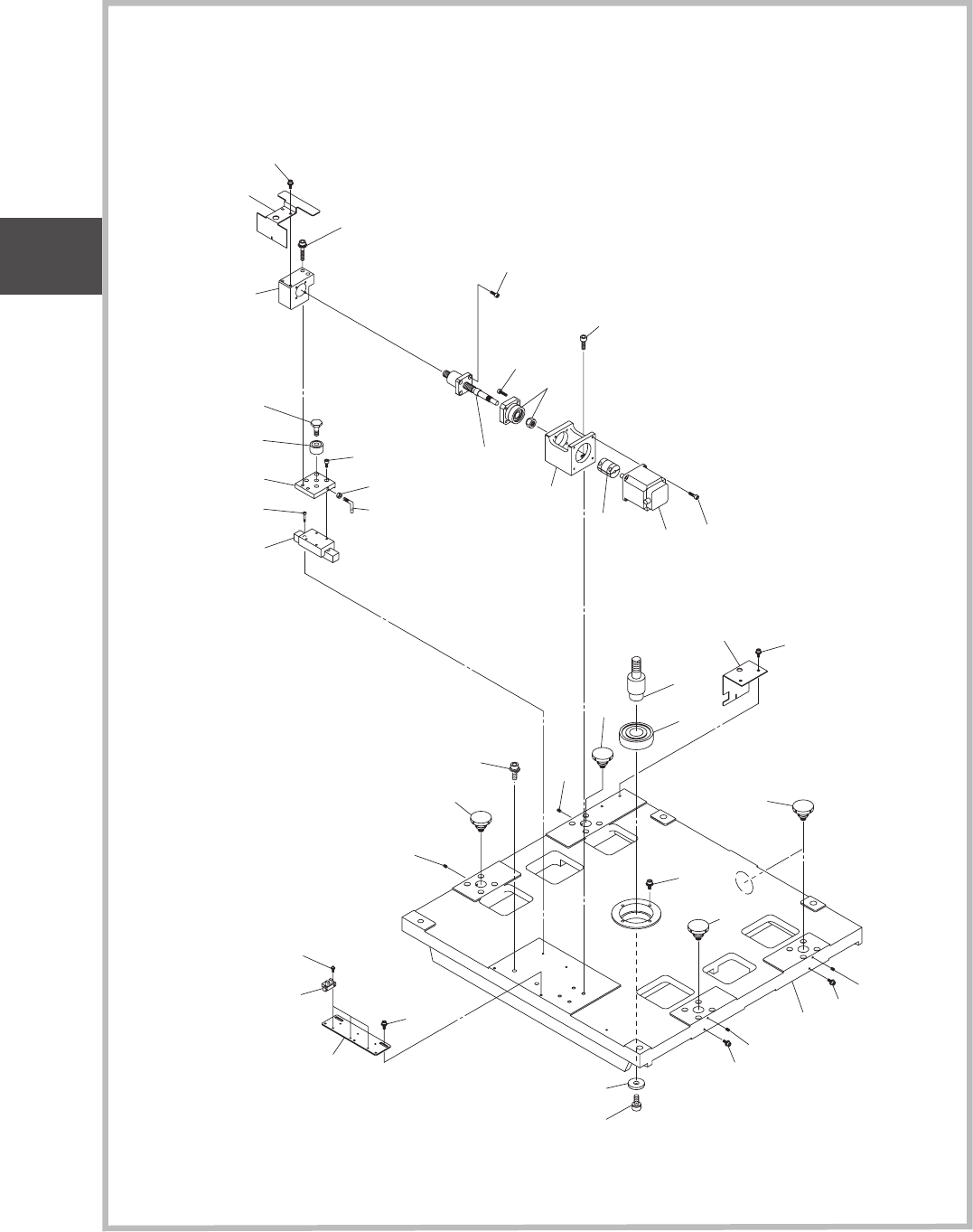

Fig. B1
テーブル、基板チャック部
TABLE, PCB CHUCK SECTION
UNIT-1
Fig. B1
TABLE
