Fig. B1-6 シュート駆動部 Chute Driving Section 506 506 506 506 1 1 5 574 586 5A7 1 1 5 5A5 573 570 571 579 577 566 591 570 537 537 545 544 543 594 5A3 5A2 5A1 5A3 5A2 5A1 5A3 5A2 5A1 5A0 5B0 5A9 5A8 5A7 571 5B0 5A9 5A8 5B0 5A9 …
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
407 23G10001 SENSOR_PHOTO 2 1090004003-007
412 0900E01Y SENSOR_BRACKET 1 1090004003-012
414 211FD499 BRACKET 1 1090004003-014
416 223B0450 BALL_SCREW 4 1090004003-016
417 222F0026 BEARING_UNIT 4 1090004003-017
418 223Q0745 PULLEY_TIMING 4 1090004003-018
419 226H0067 CLAMP 4 1090004003-019
420 221K0079 RING_C_15 5 1090004003-020
421 223L0393 BELT_TIMING 1 1090004003-021
428 222J0231 BUSH_BALL 3 1090004003-028
431 213E0212 BOSS 5 1090004003-031
432 222D0372 BEARING_RADIAL 10 1090004003-032
433 222D0320 BEARING_RADIAL 5 1090004003-033
439 221HA003 WASHER 2 1090004003-039
440 221HA103 WASHER 2 1090004003-040
441 221DA012 MACHINE_SCREW 2 1090004003-041
442 221AA016 ROHS_HEX-SCT 2 1090004003-042
443 221HA004 WASHER 4 1090004003-043
444 221HA104 WASHER 4 1090004003-044
445 221AA018 ROHS_HEX-SCT 2 1090004003-045
446 221AA020 ROHS_HEX-SCT 16 1090004003-046
448 221AA339 ROHS_HEX-SCT 12 1090004003-048
450 221HA006 WASHER 2 1090004003-050
451 221HA304 ROHS_WASHER 2 1090004003-051
452 221AA046 ROHS_HEX-SCT 2 1090004003-052
454 221HA106 WASHER 2 1090004003-054
455 221AA048 ROHS_HEX-SCT 2 1090004003-055
464 223Q0744 PULLEY_TIMING 1 309000400B-004
465 222D0022 BEARING_RADIAL 2 309000400B-005
466 221K0077 RING_C_12 1 309000400B-006
467 223C0262 COUPLING 1 309000400B-007
468 0900403E ASSY_MOTOR 1 309000400B-008
469 211FE293 BRACKET 1 309000400B-009
470 221AA031 ROHS_HEX-SCT 4 309000400B-010
471 221HA005 WASHER 4 309000400B-011
472 221HA105 WASHER 4 309000400B-012
Fig. B1
0912-002
Fig. B1-5
UNIT-1
Fig. B1
TABLE
SIGMA-P4
Fig. B1-6
シュート駆動部
Chute Driving Section
506
506
506
506
115
574
586
5A7
115
5A5
573
570
571
579
577
566
591
570
537
537
545
544
543
594
5A3
5A2
5A1
5A3
5A2
5A1
5A3
5A2
5A1
5A0
5B0
5A9
5A8
5A7
571
5B0
5A9
5A8
5B0
5A9
5A8
5B0
5A9
5A8
5A2
5A1
5A0
5A3
5A2
5A1
544
543
549
599
599
599
5A4
5A4
594
599
598
598
5A5
513
508
590
580
578
572
572
584
589
582
568
5A6
587
575
576
585
568
581
583
510
588
569
569
566
1102-003

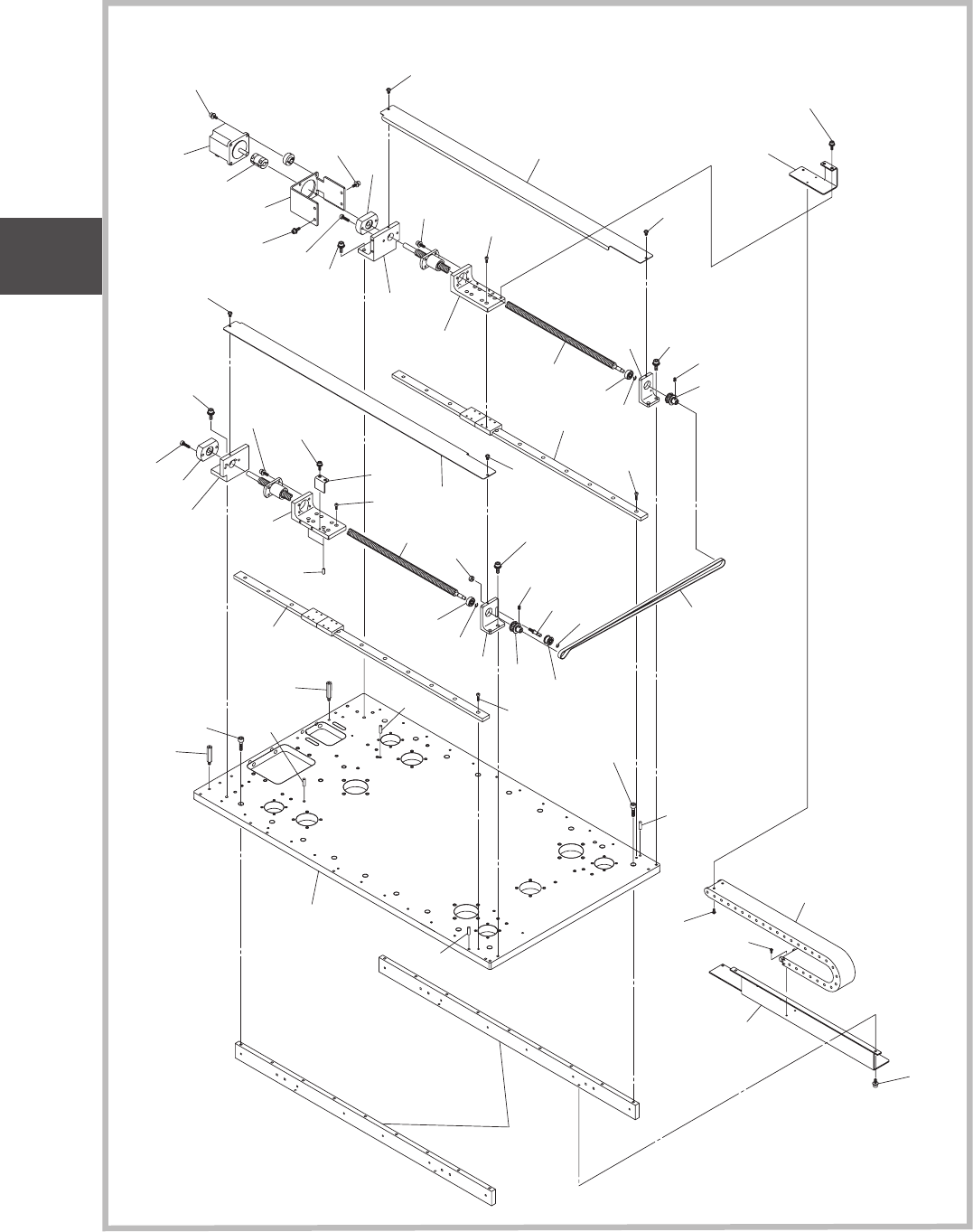

Fig. B1
テーブル、基板チャック部
TABLE, PCB CHUCK SECTION
UNIT-1
Fig. B1
TABLE
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
506 226J2593 SHAFT 4 1090004003-006
508 226J2573 CABLE_VEYOR 1 1090004003-008
510 211FD327 BRACKET 1 1090004003-010
511 211FE327 ROD 2 1090004003-011
513 211FD328 BRACKET 1 1090004003-013
537 221DA203 MACHINE_SCREW 4 1090004003-037
543 221HA004 WASHER 4 1090004003-043
544 221HA104 WASHER 4 1090004003-044
545 221AA018 ROHS_HEX-SCT 2 1090004003-045
549 221AA017 ROHS_HEX-SCT 2 1090004003-049
566 222L0917 GUIDE_LINER 2 1090004030-006
568 222F0076 BEARING_UNIT 2 1090004030-008
569 223A0089 FEED_SCREW 2 1090004030-009
570 222D0257 BEARING_RADIAL 2 1090004030-010
571 221K0039 RING 2 1090004030-011
572 223Q0625 PULLEY_TIMING 2 1090004030-012
573 222D0313 BEARING_RADIAL 2 1090004030-013
574 221K0041 RING 1 1090004030-014
575 223C0261 COUPLING 1 1090004030-015
576 09004037 ASSY_MOTOR 1 1090004030-016
577 226J2593 SHAFT 5 1090004030-017
578 223L0388 BELT_TIMING 1 1090004030-018
579 211FE180 BRACKET 1 1090004030-019
580 0900E051 BRACKET 1 1090004030-020
581 211FE230 BRACKET 1 1090004030-021
582 211FE231 BRACKET 1 1090004030-022
583 0900E0AY PLATE 1 1090004030-023
584 0900E0AZ PLATE 1 1090004030-024
585 0900E02X BRACKET 1 1090004030-025
586 216D0599 PIN_HINGE 1 1090004030-026
587 211AC822 COVER 1 1090004030-027
588 211AC823 COVER 1 1090004030-028
589 211FD334 BRACKET 1 1090004030-029
590 211DD750 PLATE 2 1090004030-030
591 0900E03K BASE 1 1090004030-031
594 221AA006 ROHS_HEX-SCT 16 1090004030-034
598 221AA008 ROHS_HEX-SCT 22 1090004030-038
599 221DA203 MACHINE_SCREW 4 1090004030-039
5A0 221AA017 ROHS_HEX-SCT 6 1090004030-040
5A1 221HA004 WASHER 22 1090004030-041
5A2 221HA004 WASHER 22 1090004030-042
5A3 221AA018 ROHS_HEX-SCT 12 1090004030-043
5A4 221AA019 ROHS_HEX-SCT 4 1090004030-044
5A5 221AA032 ROHS_HEX-SCT 18 1090004030-045
5A6 221FA007 NUT_HEX 1 1090004030-046
Fig. B1
1102-003
Fig. B1-6
UNIT-1
Fig. B1
TABLE
SIGMA-P4
