Fig. C1-2 スクリーンクランプ部 Stencil Clamp Section 122 1 19 121 123 107 1 18 1 14 120 1 14 1 13 1 12 1 1 1 1 10 106 106 125 105 124 104 109 108 1 13 1 12 1 1 1 1 10 109 108 102 1 19 1 15 1 16 1 17 120 126 127 1 18 107 101 103 1 …
MEMO

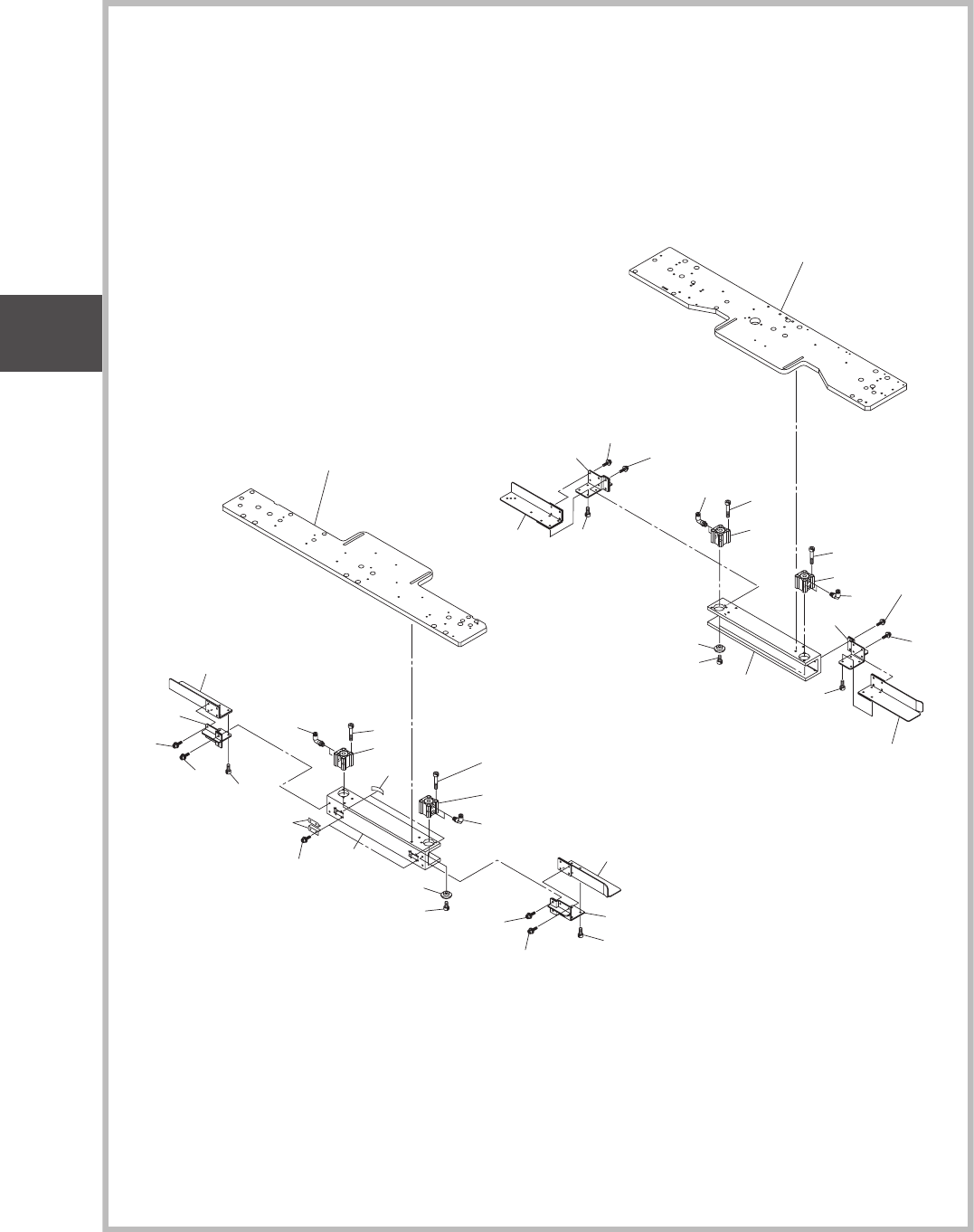

Fig. C1-2
スクリーンクランプ部
Stencil Clamp Section
122
119
121
123
107
118
114
120
114
113
112
11
1
110
106
106
125
105
124
104
109
108
1
13
112
111
110
109
108
102
1
19
115
116
117
120
126
127
118
107
101
103
114
114
106
106
105
105
104
104
1
13
112
111
110
109
108
1
13
112
11
1
110
109
108
Key No.31
See Fig. C1-1
Key No.33
See Fig. C1-1
1102-003
Fig. C1
スクリーンホルダ部
STENCIL HOLDER SECTION
UNIT-2
Fig. C1
STENCIL
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1102-003
101 0900D002 GUIDE 1 2090003011-001
102 212A2808 GUIDE 1 2090003011-002
103 212A2744 GUIDE 1 2090003011-003
104 224C0409 CYLINDER 3 2090003011-004
105 221AA035 BOLT_HEX-SCT 6 2090003011-005
106 225F0345 PIPE_FITTINGS 8 2090003011-006
107 0900D012 BRACKET 2 2090003011-007
108 221AA120 ROHS_HEX-SCT 8 2090003011-008
109 221HA005 WASHER 8 2090003011-009
110 221HA105 WASHER 8 2090003011-010
111 221AA016 ROHS_HEX-SCT 16 2090003011-011
112 221HA004 WASHER 16 2090003011-012
113 221HA104 WASHER 16 2090003011-013
114 221E0244 BOLT 16 2090003011-014
115 221AA016 ROHS_HEX-SCT 8 2090003011-015
116 221HA004 WASHER 8 2090003011-016
117 221HA104 WASHER 8 2090003011-017
118 0900D013 BRACKET 2 2090003011-018
119 211G6395 BLOCK 4 2090003011-019
120 221E0470 BOLT 4 2090003011-020
121 212A2728 GUIDE 1 2090003011-021
122 212A2809 GUIDE 1 2090003011-022
123 212A2730 GUIDE 1 2090003011-023
124 09003007 SC_CYL1_ASSY 1 2090003011-024
125 221AA037 BOLT_HEX-SCT 2 2090003011-025
126 211FE136 BRACKET 4 2090003011-026
127 222M1507 SPRING_COMP 2 2090003011-027
Fig. C1
Fig. C1-2
UNIT-2
Fig. C1
STENCIL
SIGMA-P4
