User manual SIPLACE X-Series 3 Technical data and assemblies From software version 708.1 Version 05/2015 3.6 Gantry system 155 3.6.5 X axis structure 3 Fig. 3.6 - 5 Design of X axis - view of head mount (1) Head mount wi…
3 Technical data and assemblies User manual SIPLACE X-Series
3.6 Gantry system From software version 708.1 Version 05/2015
154
3.6.4 Position of gantries in SIPLACE X2 S
3

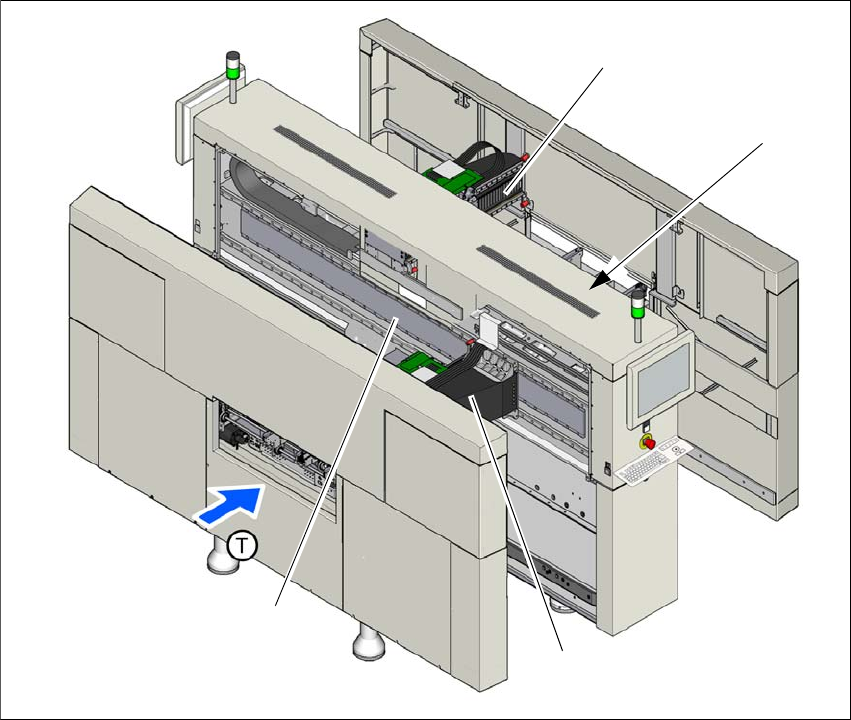

Fig. 3.6 - 4 Position of gantries - SIPLACE X2 S
(1) Y axis, gantry 1
(2) X axis, gantry 1
(3) X axis, gantry 2 (covered)
(4) X axis, gantry 2
(T) Direction of PCB transport
(1)
(3)
(2)
(4)
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 708.1 Version 05/2015 3.6 Gantry system
155
3.6.5 X axis structure
3

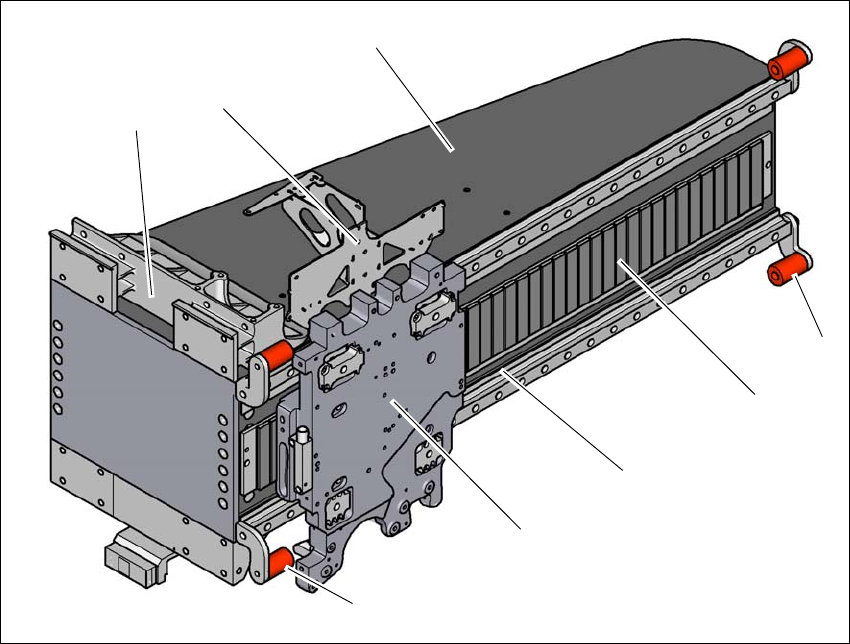

Fig. 3.6 - 5 Design of X axis - view of head mount
(1) Head mount with X axis linear motor (primary part)
(2) Y linear motor with fixed bearing (primary part)
(3) Guidance system with permanent magnet (secondary part of the X linear motor)
(4) End position bumper (4x)
(5) Gantry arm
(6) Head board mount
(7) Length measurement system
The gantry arm is made of a carbon fiber composite. This technology allows assemblies to be
made with extremely low weight and high rigidity.
The X axis is driven by a linear motor. The secondary part of the drive consists of a permanent
magnet and is mounted on the gantry arm. The primary part is bolted to the head mount. The head
mount has been designed so that all placement head types can be accommodated - one of the
benefits of the great flexibility in the SIPLACE machines.
(4)
(3)
(1)
(5)
(2)
(6)
(4)
(7)
3 Technical data and assemblies User manual SIPLACE X-Series
3.6 Gantry system From software version 708.1 Version 05/2015
156
3.6.6 Technical data for X axis SIPLACE X2 S / X3 S / X4 S / X4i S
3
3.6.7 Technical data for X axis SIPLACE X4 S micron / X4i S micron
3
Drive Linear motor (primary drive)
Max. speed 2.5 m/s
Distance measuring system Linear metal scale
Resolution 1 µm
Drive Linear motor (primary drive)
Max. speed 2.5 m/s
Distance measuring system Linear metal scale
Resolution 0.5 µm
