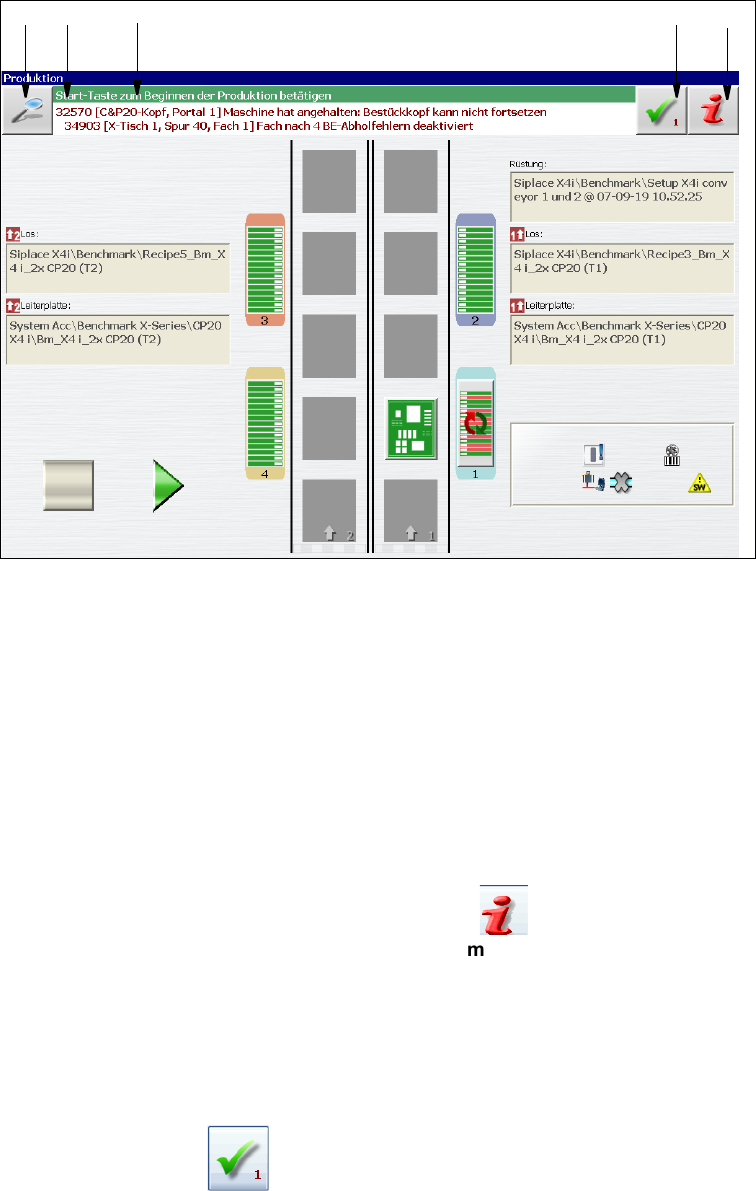

Fig. 5.6 - 1 "Production" view with alert message (example of SIPLACE X4i shown)

Legend for fig. 5.6 - 1

(1) Alert number

(2) Alert message: brief information about the alert

(3) "Details" icon: for opening detailed information (e.g. error source, time of occurrence)

(4) "Acknowledge alert" icon: for deleting the alert display

(5) "Alert information" icon: for opening the help function for the current alert

5.6.1 Viewing information about the current alert

To view information about the current alert, click on the icon to start the help system for the

station computer. The main window of the help system will open with alert information. The infor-

mation refers to the alert currently shown and from which the help function was started.

Once an alert has been resolved and the solution has been automatically determined by the ma-

chine, this alert will be automatically removed from the status field.

If the solution is not recognized automatically, the alert can also be manually deleted from the sta-

tus field.

To do this, click on the icon; the alert message will no longer be shown in the status field.

5 Working with the machine User manual SIPLACE X-Series

5.6 Alert information and online help From software version 708.1 Version 05/2015

284

5.6.2 Viewing information about the selected alert

 Click on the button in the toolbar (1).

All the alerts which occurred will be listed.

 Click on the "Show message report" (2) button.

 Click through the menu tree of the alert list (3), to open detailed alert messages.

. 5

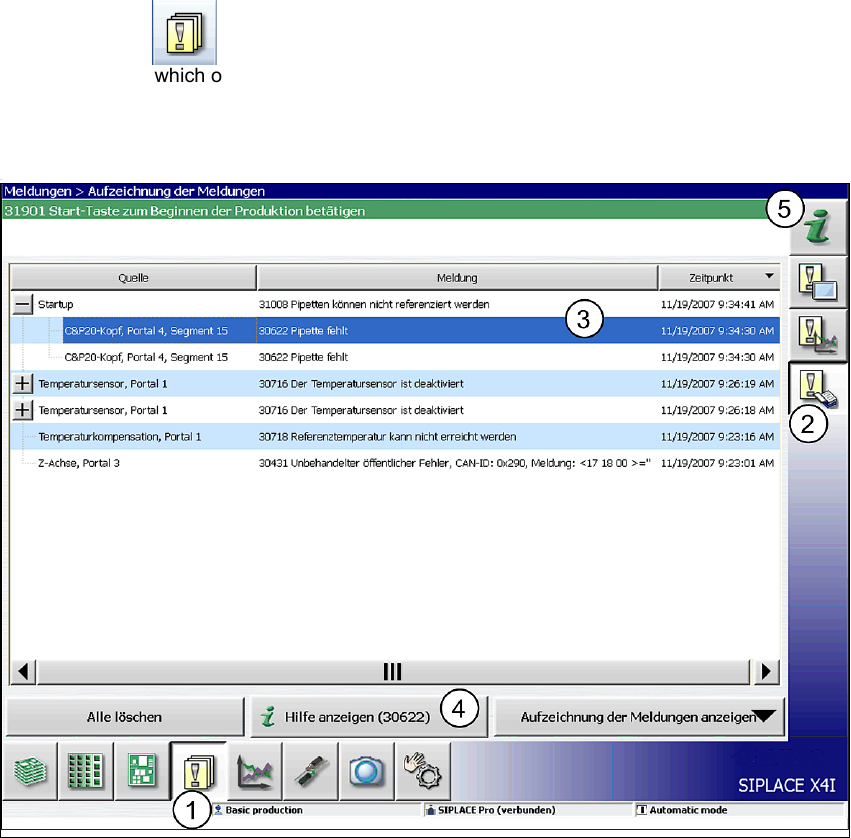

Fig. 5.6 - 2 Example:alert list (example of SIPLACE X4i shown)

 Select the alert display for which you want to view information from the list of alerts.

 Click on the "Show Help" (4) button to view the information.

To view information about a different alert, search the index of the help system (5) by entering the

alert number.

User manual SIPLACE X-Series 5 Working with the machine

From software version 708.1 Version 05/2015 5.6 Alert information and online help

285

5.6.3 Color coding in the online help alert information

5.6.4 Context-sensitive online help

To see information about the current view, click on the icon to start the help system for the

station computer. The main window of the help system will open with alert information. The infor-

mation refers to the view currently shown and from which the help function was started. Use the

list of contents, index and the search function to view the contents of the Online Help.

Text highlight Meaning

Red text Alert number and message

Black text Possible cause(s) of alert

Green text Instructions for solving the alert

Blue underlined text Open additional information
