5 Working with the machine User manual SIPLACE X-Series
5.15 Docking the component trolley in or out From software version 708.1 Version 05/2015
322
5.15.4 Docking the component trolley
5

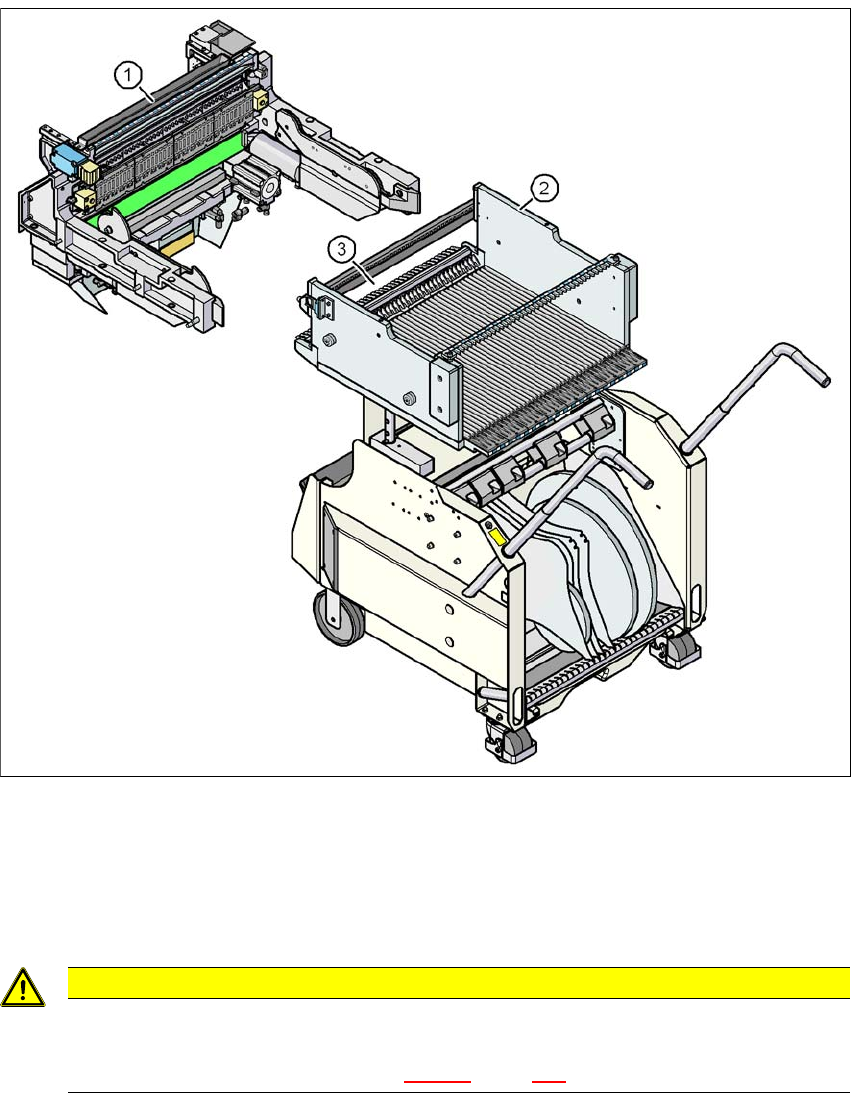

Fig. 5.15 - 3 Component trolley and COT insert, SIPLACE X-Series
(1) Component trolley docking unit, SIPLACE X-Series
(2) Component trolley, SIPLACE X-Series
(3) Locking latches
5
CAUTION
Pushing in component trolley!
When pushing in the component trolley, make sure that you do not hit obstacles with
the locking latches (item 3 in fig. 5.15 - 3
, page 322).
User manual SIPLACE X-Series 5 Working with the machine
From software version 708.1 Version 05/2015 5.15 Docking the component trolley in or out
323
5
5
Carefully push the component trolley into machine as far as the stop.
5
Press the button on the respective machine location until the trolley is completely docked in.
Push the sleeve (item 1 in fig. 5.15 - 4, page 324) on both handles up and swivel the handle
down (item 2 in fig. 5.15 - 4
, page 324).
PLEASE NOTE
Cut tapes flush
If you do not cut tapes off flush at the front end of the X feeder modules, the emptied
tapes will not enter the empty tape duct.
Cut the tapes off flush, before you dock the component trolley into place.
CAUTION
Position of placement head!
Check that the placement head is outside the range of the component trolley.
PLEASE NOTE
Docking only possible if protective cover is closed
Close the protective covers.
5 Working with the machine User manual SIPLACE X-Series
5.15 Docking the component trolley in or out From software version 708.1 Version 05/2015
324
5

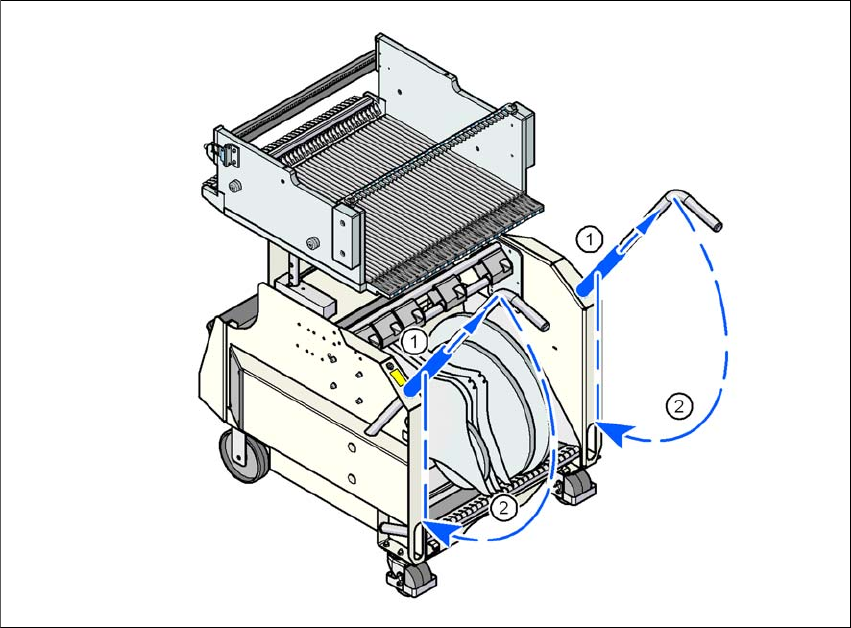

Fig. 5.15 - 4 X-Series component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
