6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 708.1 Version 05/2015
326
6.1.2 Nozzle changer for SIPLACE SpeedStar C&P20/C&P20 M
This nozzle changer can accommodate 6 or 4 magazines, each with 12 nozzle garages. The mag-
azines are seated on a common support. They are centered with two parallel pins and fixed in
place with 4 push buttons. The exact position is determined with two fiducials on each magazine.
The correct seat of the magazines on the basic nozzle changer body is monitored by micros-
witches, to prevent a collision of the placement head with any magazines projecting upwards. All
magazine locations must be filled since the safety circuit stops the machine in response to missing
magazines or magazines that are not seated correctly. At the installed nozzle station, components
can be blown off the nozzles of the SpeedStar and nozzles stripped off and rejected.
6
6.1.2.1 Nozzle changer for C&P20/C&P20 M with 6 magazines
Item no. 03070123-xx nozzle changer basic assembly C&P20 - long
or 6
Item no. 03103514-xx nozzle changer basic assembly CP/all - long
Item no. 00119715-xx nozzle magazine C&P20 - long
6

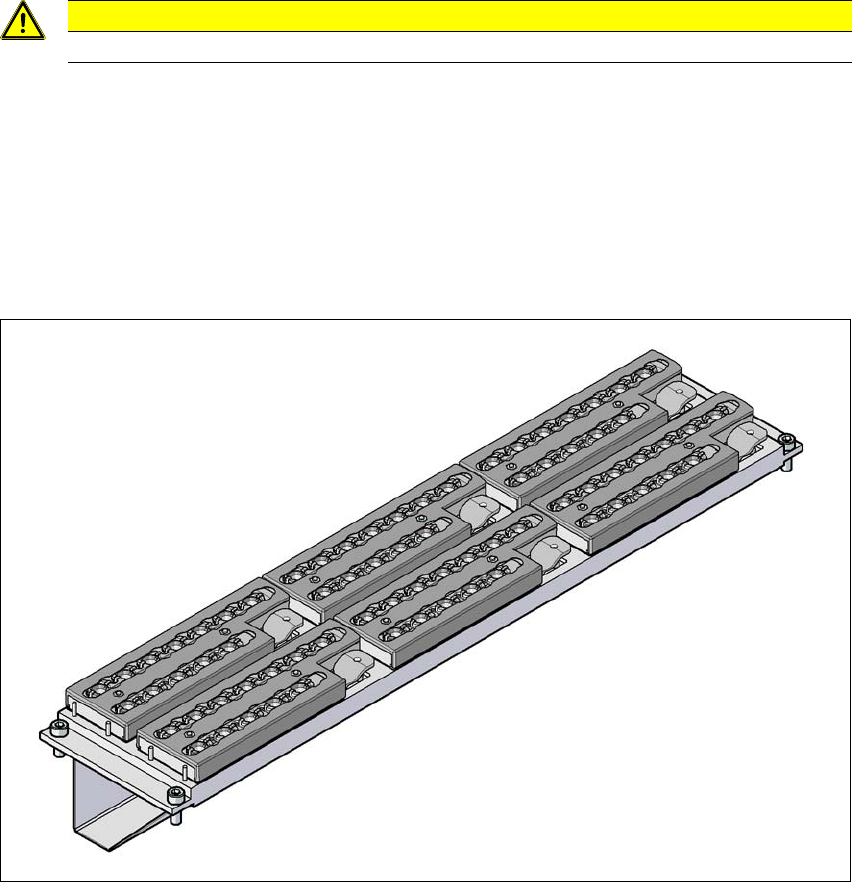

Fig. 6.1 - 1 Nozzle changer for the SIPLACE SpeedStar C&P20 with nozzle magazine
CAUTION
Only use the nozzle changer together with the SpeedStar.
User manual SIPLACE X-Series 6 Station extensions
From software version 708.1 Version 05/2015 6.1 Nozzle changer
327
6.1.2.2 Nozzle changer for C&P20/C&P20 M with 4 magazines
Item no. 03062463-xx nozzle changer basic assembly C&P20 - short
or 6
Item no. 03103649-xx nozzle changer basic assembly CP/all - short
Item no. 00119716-xx nozzle changer for C&P20 - short
6

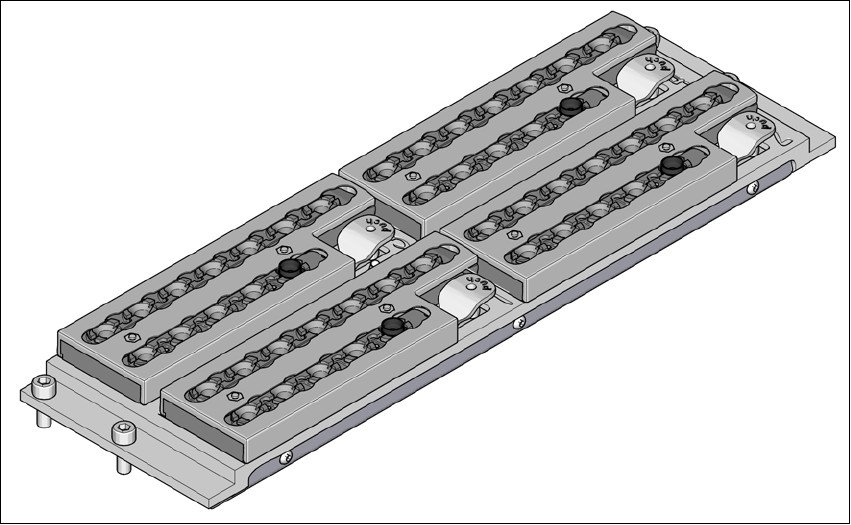

Fig. 6.1 - 2 Nozzle magazine, short, for the SIPLACE SpeedStar C&P20
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 708.1 Version 05/2015
328
6.1.2.3 Technical data
6
Nozzle changer for the SIPLACE SpeedStar (C&P20/C&P20 M)
Number of magazines
*a
SIPLACE X2 S/X3 S/X4 S
SIPLACE X4i S
*)a All magazines in the nozzle changer must be configured.
6
4
Number of nozzle holders
SIPLACE X2 S/X3 S/X4 S
SIPLACE X4i S
72
48
Standard configuration
SIPLACE X2 S/X3 S/X4 S
SIPLACE X4i S
6 magazines with 72 nozzle garages
4 magazines with 48 nozzle garages
Option: Nozzle changer "row 2" 4 magazines with 48 nozzle garages
Nozzle types 10xx, 11xx, 12xx
Compressed air connection 0.45 MPa (4.5 bar)
