6 Station extensions User manual SIPLACE X-Series 6.1 Nozzle changer From software version 708.1 Version 05/2015 342 Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 12 , p age 341 ). Press the mag…
User manual SIPLACE X-Series 6 Station extensions
From software version 708.1 Version 05/2015 6.1 Nozzle changer
341
6
Fig. 6.1 - 12 Nozzle changer for the C&P20 P- changing the magazine (example of 6 magazines)
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) spring pin for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "magazine locked" position
6
PLEASE NOTE
Move the locking plate into the "Magazine locked" position.
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
6.1 - 12
, page 341) slide into the centering holes and slot.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 708.1 Version 05/2015
342
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 12, page 341).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6.1.3.9 Position detection
Each magazine of the nozzle changer has two fiducials: one for determining the position and one
for determining the angular position.
6
Fig. 6.1 - 13 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducial for determining the position
(3) Fiducial for determining the angular position
User manual SIPLACE X-Series 6 Station extensions
From software version 708.1 Version 05/2015 6.1 Nozzle changer
343
6.1.4 Nozzle changer for the SIPLACE MultiStar CPP
6.1.4.1 Nozzle changer for the CPP with 6 magazines
Item no. 00119741-xx nozzle changer for CPP - long
or
Item no. 03103514-xx nozzle changer basic assembly CP/all - long
6

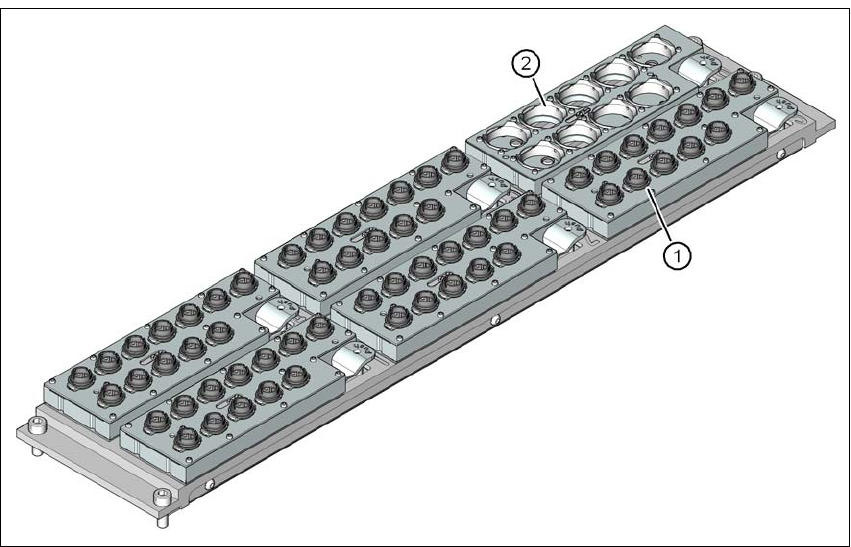

Fig. 6.1 - 14 Nozzle changer for the SIPLACE MultiStar with 6 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
The magazines are fitted onto a common carrier pate, are fixed with two cylinder pins and fas-
tened with 4 push buttons. The exact position is determined with two fiducials on each magazine.
The correct seat of the magazines on the carrier plate is monitored by microswitches, to prevent
a collision of the placement head with any magazines projecting upwards. All 6 magazine loca-
tions must be filled since the safety circuit stops the machine in response to missing magazines
or magazines that are not seated correctly. The nozzle changer recognizes whether the nozzle
magazine is for 20xx nozzles or for 28xx nozzles by the nozzle magazine code.
At the nozzle station, components can be rejected with an air blast by the nozzles. Nozzles can
be stripped off there and disposed of in the reject bin.
