6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 708.1 Version 05/2015
348
6.1.4.6 Configuration example: CPP for SIPLACE X4i S
Locations 1, 2, 3 and 4 can each accommodate one nozzle changer for the CPP head (item 1 in
fig. 6.1 - 18
, page 348).
6

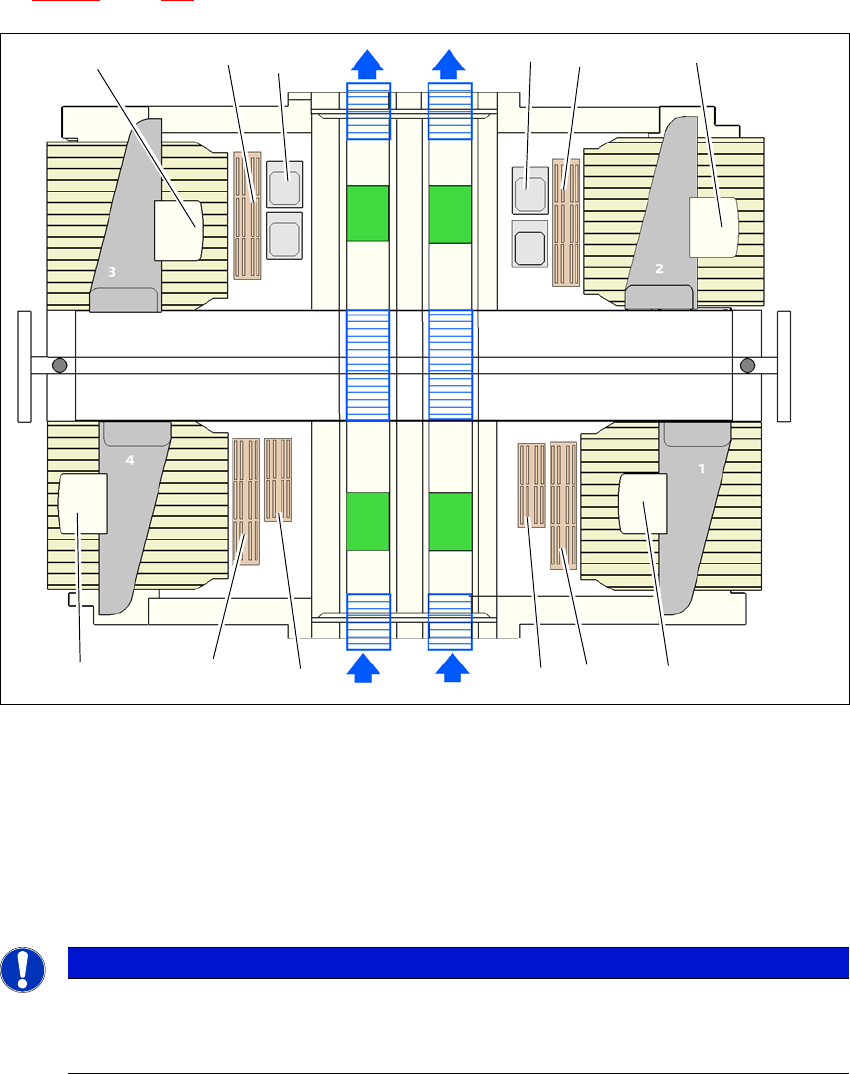

Fig. 6.1 - 18 Position of nozzle changer for the SIPLACE MultiStar machine - configuration example (SIPLACE X4i S)
6
6
(1) Nozzle changer
(2) SIPLACE MultiStar
(3) Stationary cameras
(4) Nozzle changer row 2 (optional)
PLEASE NOTE
Stop machine if magazine missing
The safety circuit stops the machine if magazines are missing or not fitted correctly.
Use all magazine places.
(2)(1)
(1)
(2)
(1)
(2) (2)
(3)
(3)
(1)
(4)
(4)
User manual SIPLACE X-Series 6 Station extensions
From software version 708.1 Version 05/2015 6.1 Nozzle changer
349
6.1.4.7 Configuration example: CPP for SIPLACE X4 S
Locations 1, 2, 3 and 4 can each accommodate one nozzle changer for the CPP head (item 1 in
fig. 6.1 - 19
, page 349).
6

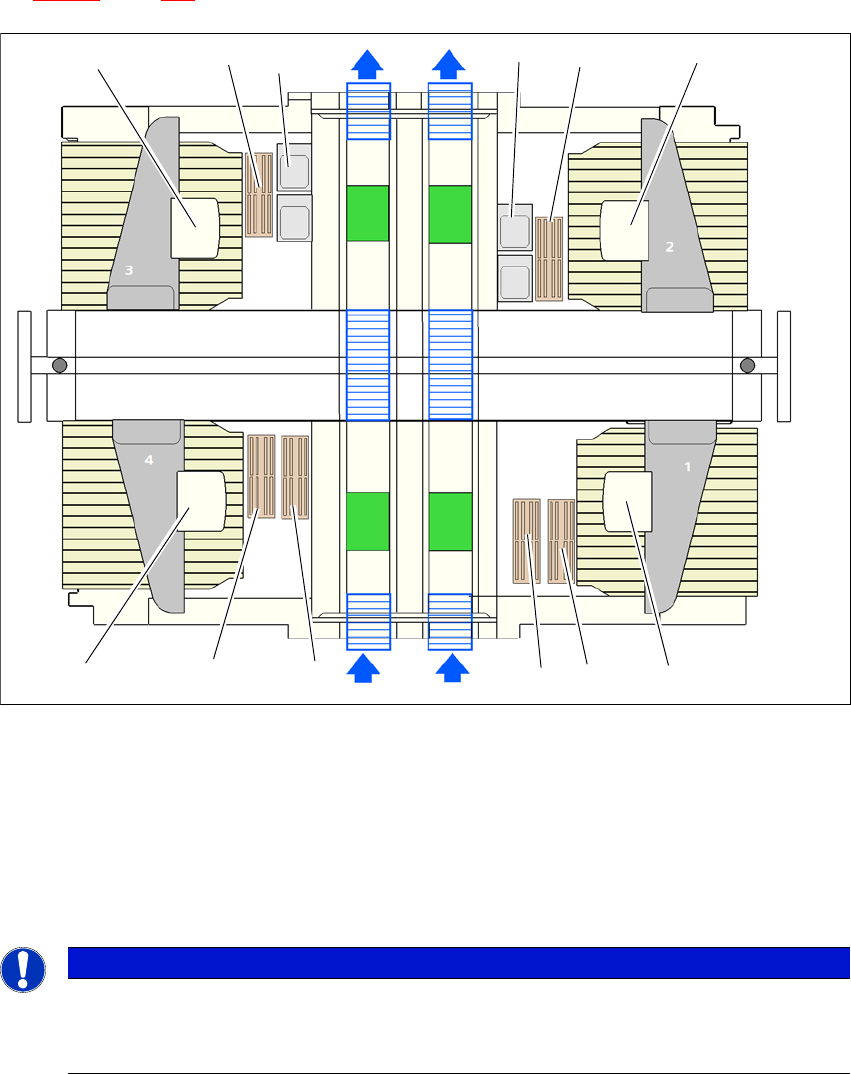

Fig. 6.1 - 19 Position of nozzle changer for the SIPLACE MultiStar machine - configuration example (SIPLACE X4 S)
6
6
(1) Nozzle changer
(2) SIPLACE MultiStar
(3) Stationary cameras
(4) Nozzle changer row 2 (optional)
PLEASE NOTE
Stop machine if magazine missing
The safety circuit stops the machine if magazines are missing or not fitted correctly.
Use all magazine places.
(2)(1)
(1)
(2)
(1)
(2) (2)
(3)
(3)
(1)
(4)
(4)
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 708.1 Version 05/2015
350
6.1.4.8 Nozzle changer "row 2" for the SIPLACE MultiStar
The "nozzle changer for row 2" option enables you to configure an additional row of nozzle chang-
ers for the SIPLACE MultiStar.
The retrofit package contains the nozzle changer and an assembly kit.
6.1.4.9 Assembly
The nozzle changers are fixed to the COT insert.
6

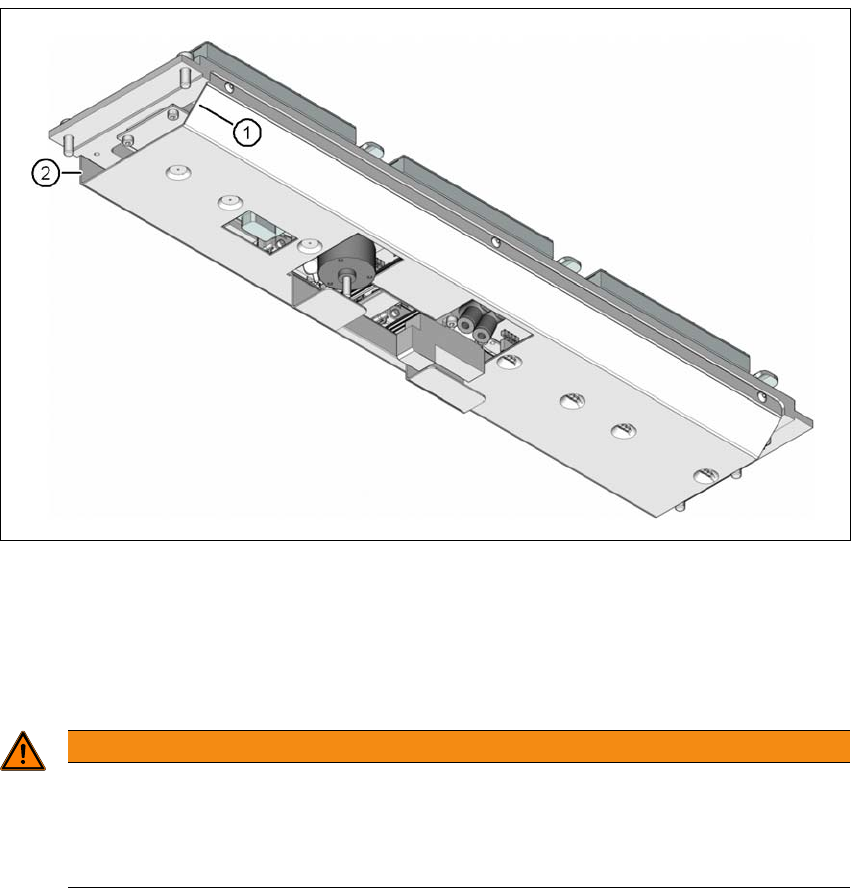

Fig. 6.1 - 20 Assembly position of nozzle changer - view from below
(1) Sloping side points towards the COT insert
(2) Vertical side points towards the PCB conveyor
Align the nozzle changer so that the sloping side points towards the COT insert.
6
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
