6.5.6 Maneuvering radii for WPC5/WPC6
6
Fig. 6.5 - 2 Maneuvering radius for WPC5/WPC6 at the SIPLACE X-Series S
The maneuvering radius R for the WPC5/WPC6 is:
6
6.5.7 Installation notes for WPC5/WPC6
The WPC5/WPC6 can be docked onto location 2.
Maneuvering radius R 750 mm
Distance L1: Machine center to outer edge of WPC (handles) 2100 mm
Distance L2: Machine center to wall 2850 mm
User manual SIPLACE X-Series 6 Station extensions
From software version 708.1 Version 05/2015 6.5 Waffle pack changer (WPC5/WPC6)
375
6.5.8 Dimensions with WPC5/WPC6
6

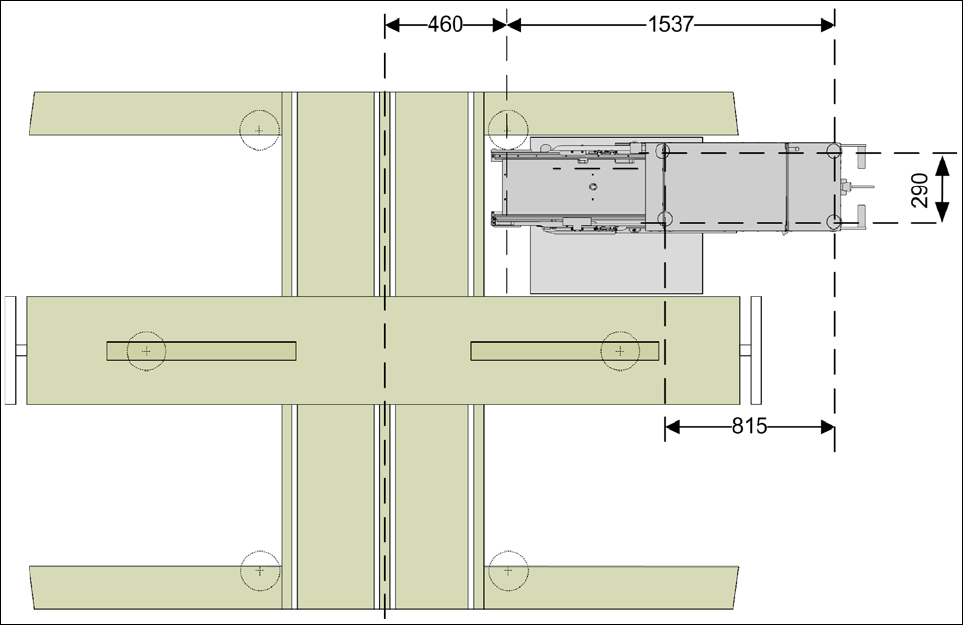

Fig. 6.5 - 3 Dimensions for WPC5/WPC6 at the SIPLACE X-Series S
6 Station extensions User manual SIPLACE X-Series
6.5 Waffle pack changer (WPC5/WPC6) From software version 708.1 Version 05/2015
376
6.5.9 Controls
6

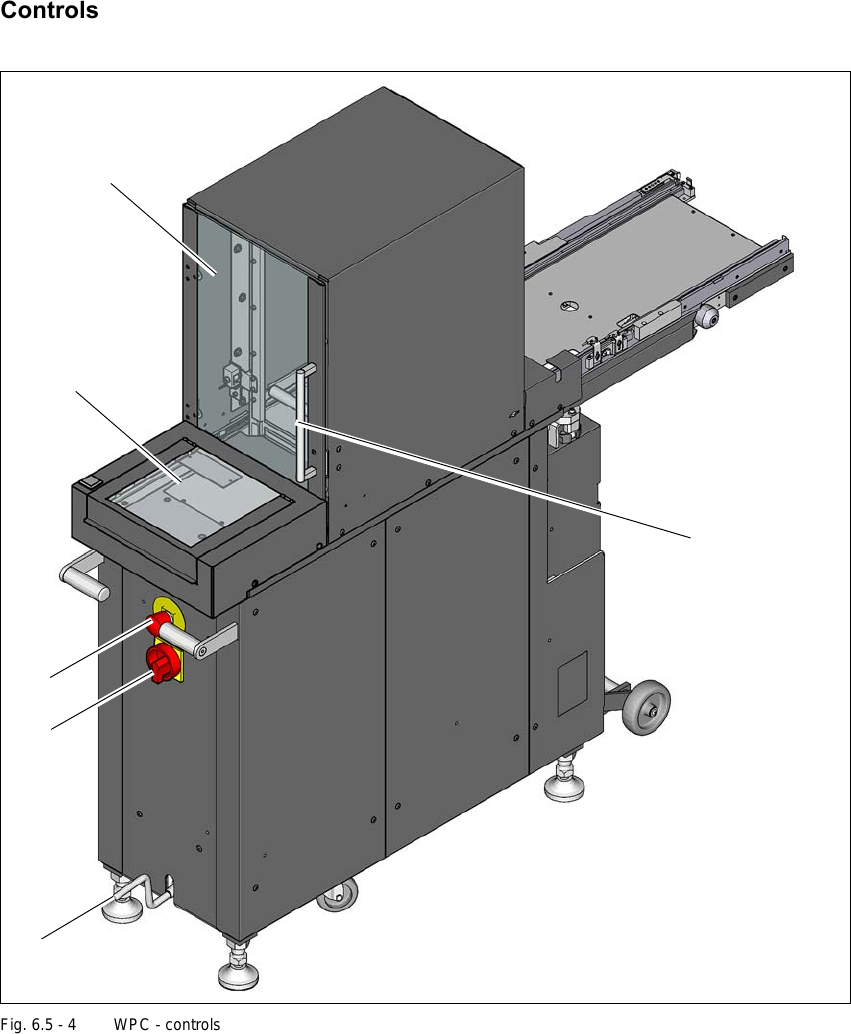

Fig. 6.5 - 4 WPC - controls
(1) EMERGENCY STOP button
(2) Main switch
(3) Crank for raising or lowering the chassis
(4) Safety door
(5) Waffle pack tray storage unit
(6) Non-stop module (WPC6 only)
(3)
(2)
(1)
(4)
(5)
