User manual SIPLACE X-Series 6 Station extensions From software version 708.1 Version 05/2015 6.14 Support pin 399 6.14 Support pin Item no. 001 19680-xx Support pin Wide boards tend to deflect during placement su ch tha…
6 Station extensions User manual SIPLACE X-Series
6.13 Siemens interface From software version 708.1 Version 05/2015
398
6.12.1.1 Technical data
6
6
6.12.1.2 Position
The position of the stationary component cameras and the associated configurations are de-
scribed
in section 3.8.2
, from page 169.
6.13 Siemens interface
Item no. 00116808-xx SIPLACE interface
The conveyor interface on the placement machines from the X-Series is configured to the SMEMA
standard. It is, however, still possible to use this interface in accordance with the Siemens stan-
dard. This is a significant benefit when an X-Series machine is to be integrated into older SIPLACE
lines, in which case it would not be necessary to retrofit the older machines to conform to the
SMEMA standard.
Simply configure the conveyor interface of the X-Series machines to the Siemens standard and
connect the machines using the associated interface cable.
Component dimensions 0.5 mm x 0.5 mm to 55 mm x 45 mm
Component range 0402, MELF, SO, PLCC, QFP, electrolytic capacitors, BGA
Min. lead pitch 0.3 mm
Min. lead width 0.15 mm
Min. ball pitch 0.35 mm
Min. ball diameter 0.2 mm
Field of vision 65 mm x 50 mm
Illumination type Front-illumination (6 levels, programmable as required)
User manual SIPLACE X-Series 6 Station extensions
From software version 708.1 Version 05/2015 6.14 Support pin
399
6.14 Support pin
Item no. 00119680-xx Support pin
Wide boards tend to deflect during placement such that, under certain circumstances, the compo-
nents can no longer be placed with the desired accuracy. Highly curved PCBs also affect the
placement accuracy. This problem can be easily rectified by fitting support pins on the lifting table.
6
Fig. 6.14 - 1 Support pin
6 Station extensions User manual SIPLACE X-Series
6.15 Smart Pin Support From software version 708.1 Version 05/2015
400
6.15 Smart Pin Support
Item no. 00119999-xx Smart Pin Support, X3 S
Item no. 00119993-xx Smart Pin Support, X4 S
Item no. 00119994-xx Smart Pin Support, X4i S
Wide boards tend to deflect during placement such that, under certain circumstances, the compo-
nents can no longer be placed with the desired accuracy. Highly curved PCBs also affect the
placement accuracy. This problem can be easily rectified by fitting support pins on the lifting table.
The support pins are automatically placed on the lifting table with the help of the Smart Pin Sup-
port option. A gripper unit is used to pick the support pins up from special magazines and place
them in the prescribed positions.
6

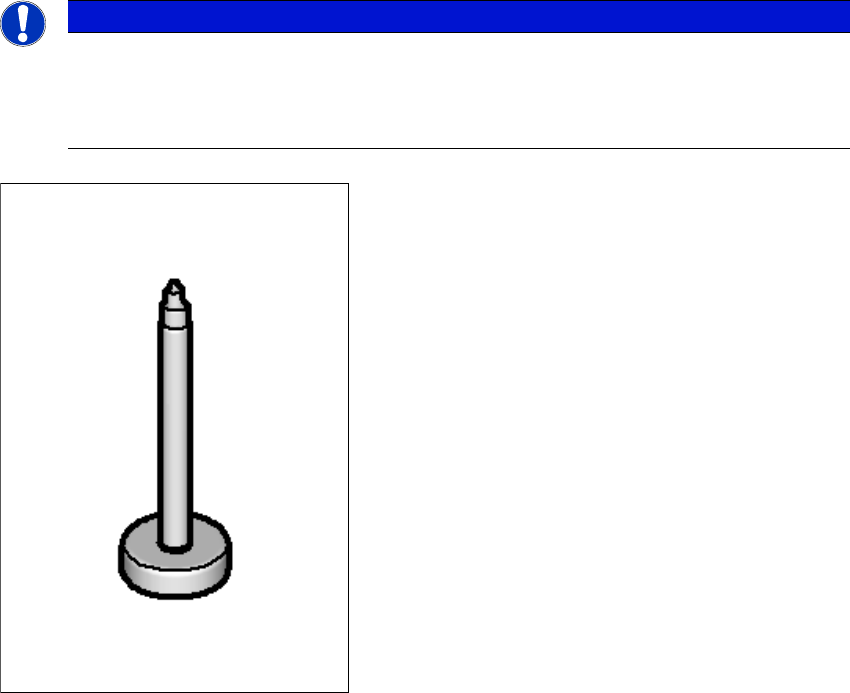

Fig. 6.15 - 1 Support pin
PLEASE NOTE
Reducing the hazard area
The Smart Pin Support option can be configured for SIPLACE X3 S / X4 S machines.
The Smart Pin Support option reduces the travel range of gantry 1 and 3 in both place-
ment areas by 36 mm in each case.
