3 Mechanical Section 3-5 ■ Checking of Suction Pad (for nozzle No. M017, M018, M019, M020) Check the rubber suction pad at the ti p of the nozzle for flaws and cracks. If you find a flaw or crack, replace the pad with a …

3 Mechanical Section

3-4

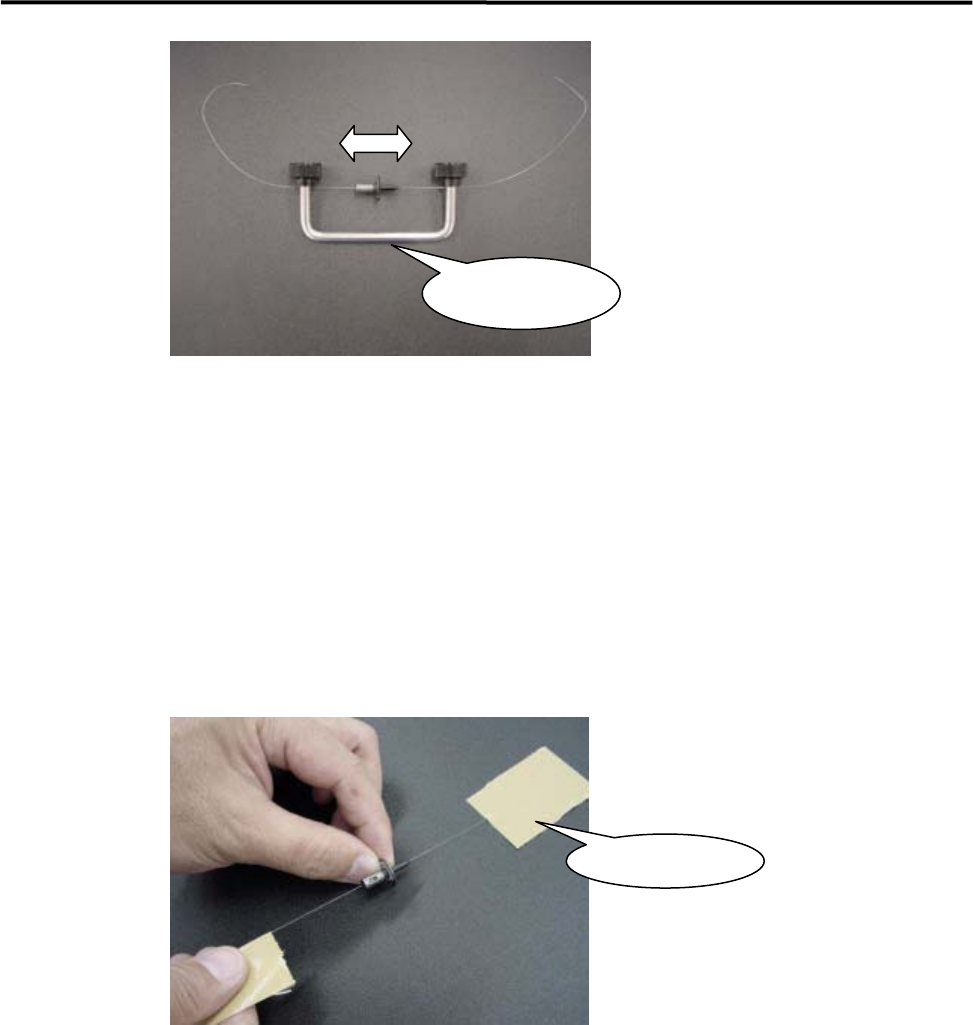

Nozzle Cleaner

Assy.

④ Move the nozzle back and forth to clean the nozzle hole.

⑤ Never forget to blow some air into the nozzle hole.

■ Nozzle Cleaning using Wire (2)

You can use the wire by fastening the wire ends with adhesive tape. In this case, adhesive may remain on

the wire. So be sure to clean the wire end before pulling out the wire form the nozzle.

Adhesive Tape

3 Mechanical Section

3-5

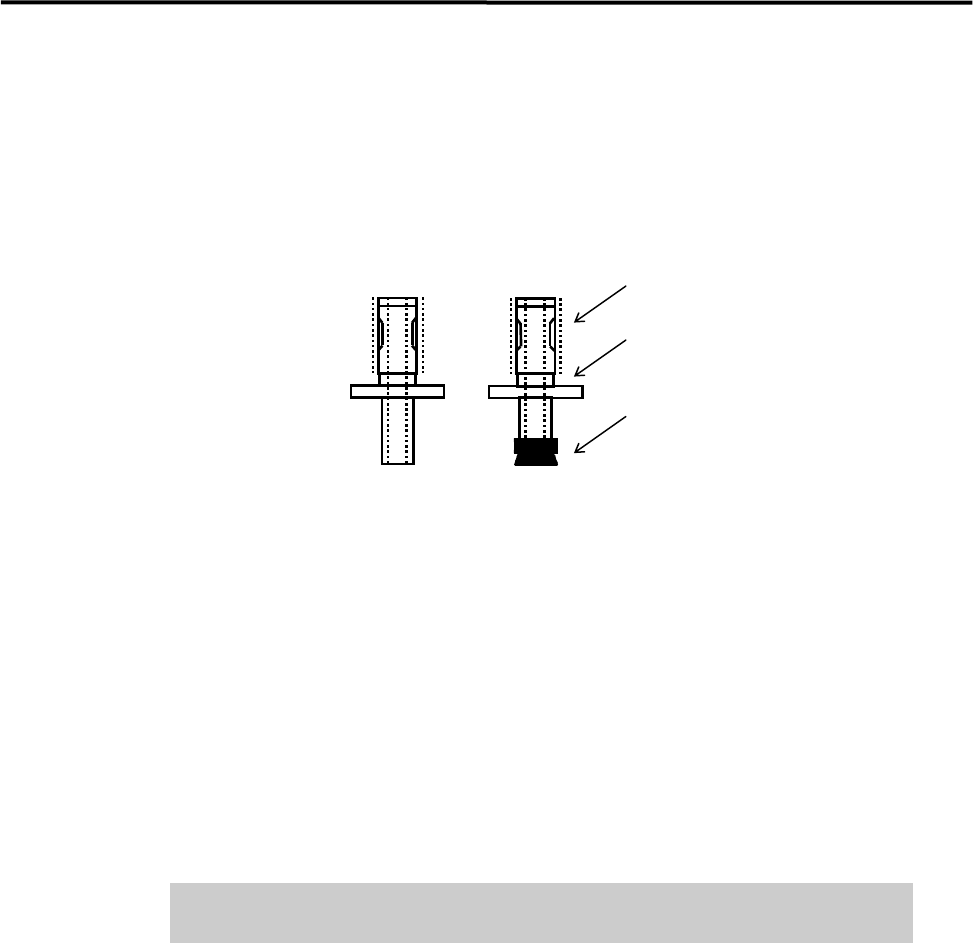

■ Checking of Suction Pad (for nozzle No. M017, M018, M019, M020)

Check the rubber suction pad at the tip of the nozzle for flaws and cracks. If you find a flaw or crack,

replace the pad with a new one.

First, pull off the old pad, and then apply some grease to the inner surface of the new pad to fit it to the

nozzle.

Apply silicone grease.

Identification Mark

Suction Pad

■ Applying Silicone Grease

After cleaning a nozzle, be sure to apply grease to the nozzle.

● Outer Surface

Apply small amount of silicone grease to the outer surface (indicated by thick dotted line). And then wipe

off the grease with a dry cloth to make a very thin film of grease.

● Suction Pad

Use grease to prevent the rubber suction pad from degrading. Apply small amount of silicone grease to the

outer surface of the pad. And then wipe off the grease with a dry cloth.

Do not apply excessive grease, which may cause the nozzle to clog with dirt

and result in the placement error.

3 Mechanical Section

3-6

Nozzle holder

A ball and spring that hold the nozzle may not perform smoothly due to the entry of dust and dirt, which

will cause a nozzle-dropping. Make a periodic check of the nozzle escape. If any *abnormal conditions are

seen, clean the nozzle holder. (*The nozzle stays up and does not go back to its initial position, or the nozzle

drops easily etc.)

NOTE: Please handle the spring and ball inside the nozzle holder carefully, since they tend to get lost. It is

recommended that spare parts should be kept handy and start removal.

Spring holder

Nozzle holding parts

ACTION:

① Remove the spring holder with a flat blade screw.

NOTE: Adhesive has been applied around the screw head to prevent loosening. When removing the spring holder

for the first time, take off the adhesive and start removal.

② Take the spring and ball out.

(When it is difficult to take the ball out, push it from inside of the nozzle holder.)

③ Remove the spring from the spring holder with tweezers.

④ Remove dust and dirt around the hole area, the spring and ball.

⑤ Apply the proper amount of Silicone Grease to the spring and ball.

Put them back in reverse order of removal. Fasten the spring holder until it touches the inner wall.

Part Name

Part No. Remark

HOLDER,SPRING LG0-M714P-00X Spring holder

SPRING,COMP. LG0-M71CC-00X Spring

STEEL,BALL LG0-M71B5-00X Ball
