3 Mechanical Section
3-11
Camera
Cleaning of Lens Filter
When components or obstacles get on the lens filter, remove them with a blower brush or tweezers.
When the grease gets on the filter, use camera lens cleaner and lens cleaning tissue.
If condensation occurs inside the protective filter, remove the filter to wipe off the moisture with lens
cleaning tissue.
Cleaning of Scan Camera
Remove dirt/dust in a gentle way from the lens and mirror of the scan camera, using a dry thing like a cotton
swab.
Avoid applying your finger pressure directly to the lens and mirror through the use of such things as tissues.
If you need to use liquid cleaner for a stubborn dirt, apply as little amount as possible and wipe it off
completely.
The surface of the scan camera mirror is very sensitive. Be sure to treat the
mirror with extra caution.
3 Mechanical Section
3-12
Lubrication
Lubrication Points
Lubricate the specified portions listed below with cotton swab soaked with lubricant.
UNIT PORTION LUBRICANT FREQ.
Mounter Ball Screw of X-axis Grease Every two weeks
LM Guide of X-axis (Upper and Lower) Grease Every two weeks
Ball Screw of Y-axis (Right and Left) Grease Every two weeks
LM Guide of Y-axis (Right and Left) Grease Every two weeks
Feeder Bank Plates Grease Every two weeks
Conveyor Width Adjusting Screw Grease Monthly
Conveyor Guide Shaft Grease Monthly
Ball Screw of Z-axis Grease Every two weeks
Spline Shaft of Z-axis Grease Every two weeks
Linear Way of Z-axis Grease Every two weeks
Ball Screw of S-axis Grease Every two weeks
LM Guide of S-axis Grease Every two weeks
Nozzle Holder Silicone Grease Monthly
Nozzle Silicone Grease Weekly
MX-20 Ball Screw Grease Monthly
(OPTION) Slide Pack Grease Monthly
Slide Pack (Shuttle Unit) Grease Monthly
MX-40 Shuttle Clamp Grease Monthly
(OPTION) V-Guide Track Grease Monthly
Ball Screw Grease Monthly
Slide Pack Grease Monthly
Slide Shaft Grease Monthly
Slide Shaft (Relay Unit) Grease Monthly
Spline Shaft (Relay Unit) Grease Monthly
MX-ST2 Shaft Grease Monthly
(OPTION) Parallel Pin Grease Monthly
Downside of cap Grease Monthly
Contact part of shaft and cap Grease Monthly
Contact part of shaft and bracket Grease Monthly
NOTE: Do not apply excessive oil/grease. This may cause oil/grease scattering when the mounter is in operation.
3 Mechanical Section
3-13

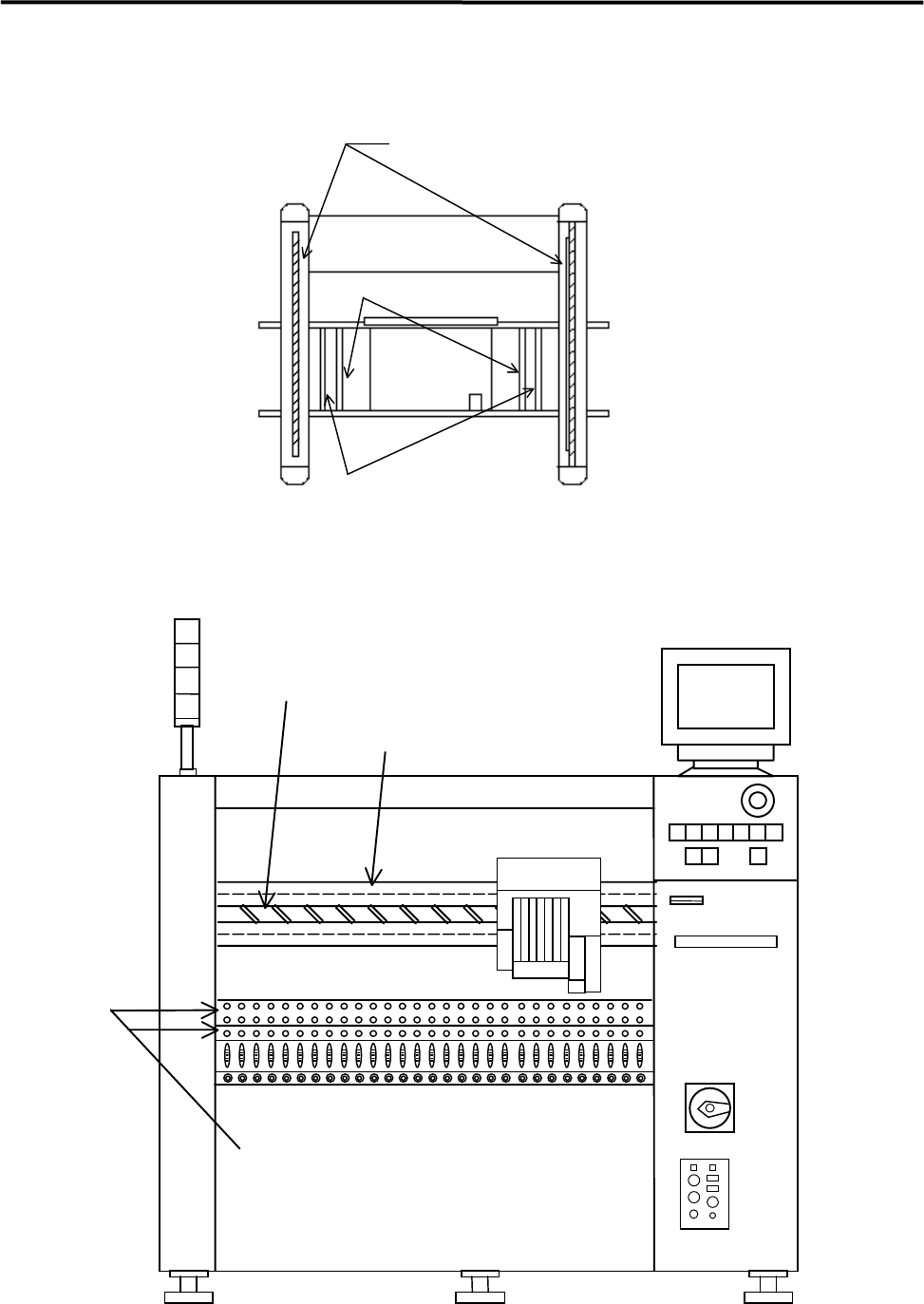

■ Lubrication Points for X/Y-axis, Conveyor, Feeder bank plates
Y axis LM guide
Y axis ball screw
Conveyor adjusting screw
Conveyor guide shaft
X axis ball screw
X axis LM guide
Feeder bank plates
