3 Mechanical Section 3-23 ■ Lubrication Points for MX -ST2 (Option) 1. Shaft A 2. Parallel Pin 3. Downside of cap (2 places) 4. Contact part of shaft and cap (2 places) 5. Contact part of shaft and bracket (2 places)

3 Mechanical Section

3-22

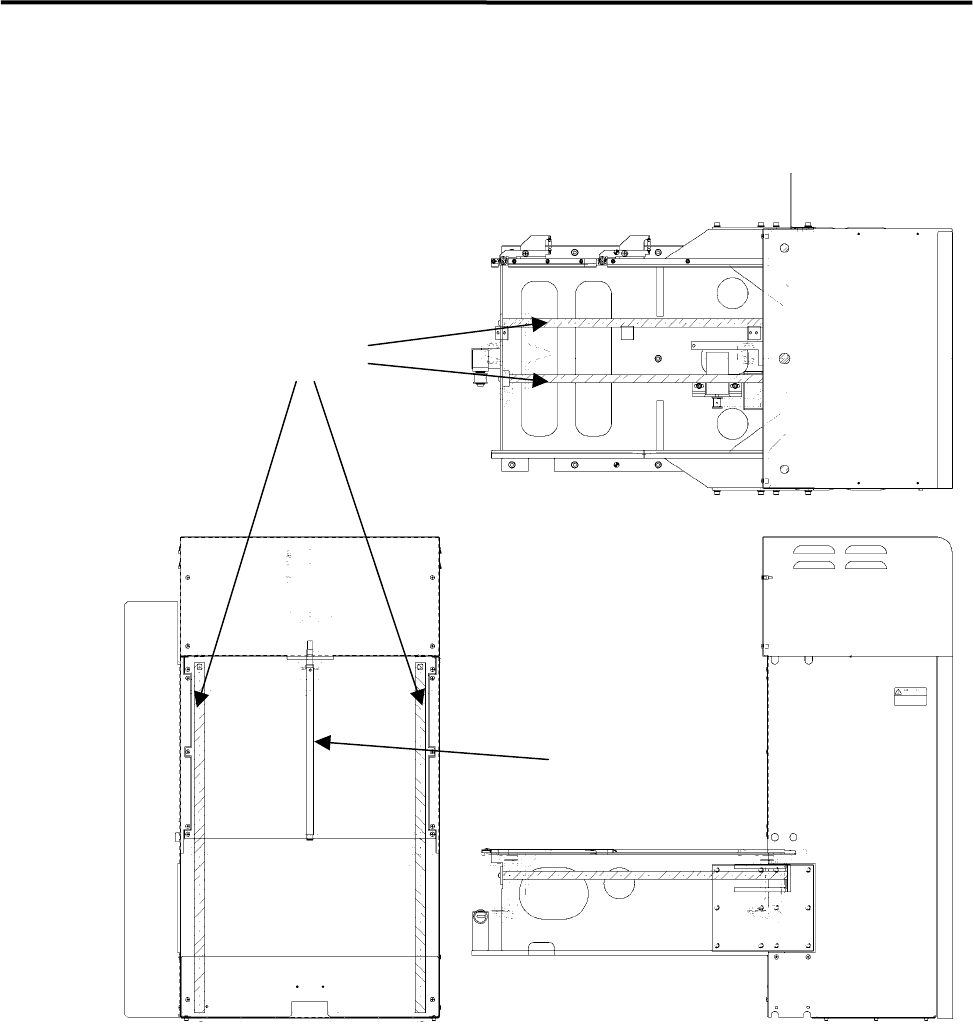

■ Lubrication Points for MXR-20 (Option)

Linear Shaft

Ball Screw

3 Mechanical Section

3-23

■ Lubrication Points for MX-ST2 (Option)

1. Shaft A

2. Parallel Pin

3. Downside of cap (2 places)

4. Contact part of shaft and cap (2 places)

5. Contact part of shaft and bracket (2 places)

3 Mechanical Section

3-24

Specified Lubricants

■ M1/M1a

PART MANUFACTURER PRODUCT NAME

THK AFA Grease

NOK NBU15

X/Y Axis

Ball screw

LM guide

KYODO YUSHI Multemp

THK AFB Grease

Showa-Shell Albania Grease No. 2

Z/S Axis (Note)

Ball screw

LM guide

Idemitsu Daphnis Eponex Grease No. 2

Silicone Grease for

Nozzle

Three Bond #1855 Silicone Grease

■ M1 plus

PART MANUFACTURER PRODUCT NAME

Showa-Shell Albania Grease No. 2

Idemitsu Daphnis Eponex Grease No. 2

KYODO YUSHI Multemp LRL No.3

X/Y Axis

Ball screw

THK AFB Grease

THK AFA Grease

NOK NBU15

X/Y Axis

LM guide

KYODO YUSHI Multemp

THK AFB Grease

Showa-Shell Albania Grease No. 2

Z/S Axis (Note)

Ball screw

LM guide

Idemitsu Daphnis Eponex Grease No. 2

Silicone Grease for

Nozzle

Three Bond #1855 Silicone Grease

Note : Equivalent to Class-2 of JIS K2220-1980

■Purchasable Grease from i-pulse

Part Name

Part No. Remark

GREASE,AFA LG0-M86A3-00X AFA Grease

GREASE,AFB LG0-M86A4-00X AFB Grease

GUN,GREASE LG0-M86A1-00X Grease Gun and Nozzle set

GREASE,SILICON LG0-M89AB-00X Silicone Grease

NOTE: AFA grease is superior to AFB grease and can be used for all the axes.

NOTE: Order placement for lubricants can be accepted only if the machine is delivered inside Japan. For locations

overseas, please consultant the agency where you purchased the machine.

NOTE: Please specify Part No.

to place an order.
