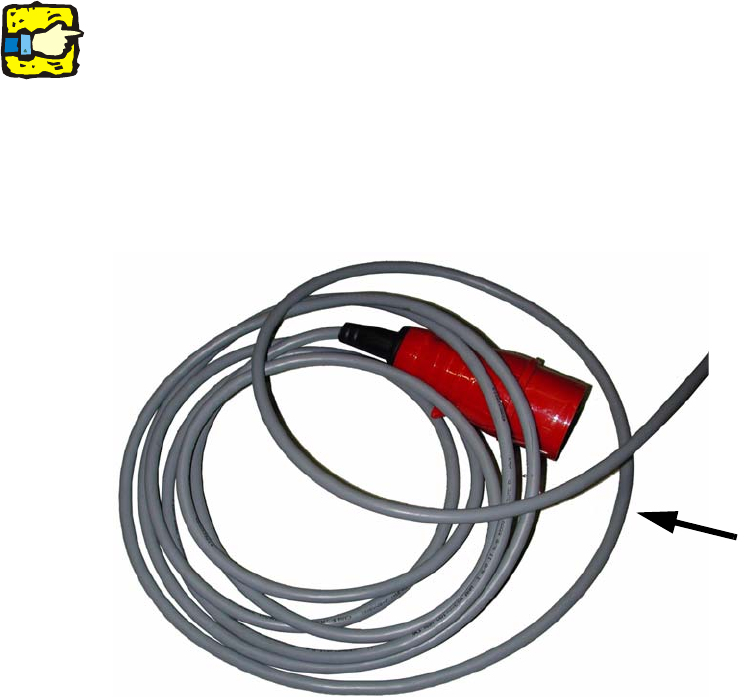

On machines from E-001 onwards, this cable is already in the machine. 2
2
2
: Run the power supply cable to the control unit and connect it at X2.
On more recent machines from around June 2009 onwar
ds, there is already a cable for the
power supply to the vacuum pump in the machine.
Power cable
2
2
: Connect the vacuum pump(s) to outputs X4 and X5. If you are only using one vacuum pump,
you can connect this to both outputs.
: Place the control in the extension kit on the plate that
you previously fixed in place with adhe-
sive tape. Tidy the cable away.
2
2
2
2
Assembly instructions: Vacuum pump for SIPLACE X-series
04/2009 Edition
107
2.8.5 Vacuum pump connection
: Check that the vacuum pump was set to the right voltage for your power supply at the factory.
To do this, read the manufacturer's user manual. To change the voltage:
– Open the cover over the current input (4 screws).
– Set the right voltage as described in the manufacturer's user manual.
2
Depending on the country's voltage, it may also be necessary to convert the pump from a star to
a delta configuration:
Voltage 330V to 520V :
Star configuration
No conversion required - supplied as
standard
Voltage 190V to 300V :
Delta configuration

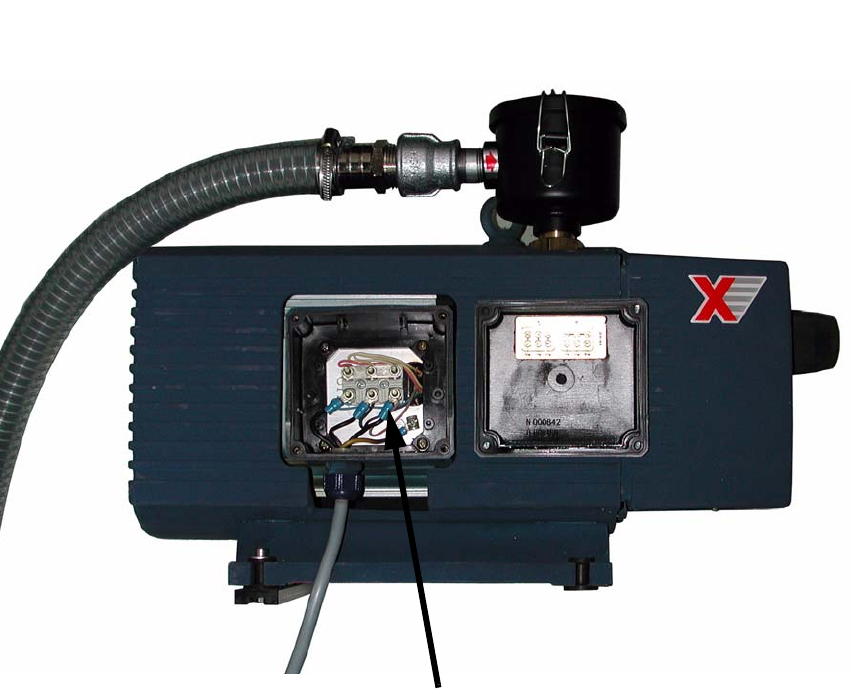

Current input
2
2
2
2
2
Assembly instructions: Vacuum pump for SIPLACE X-series
04/2009 Edition
108
: Switch the placement machine on at the main switch. The vacuum pump must switch on as
well, although not necessarily as soon as the placement machine is switched on.
: Press button S1 (through an opening in the case) on the connection unit to start the vacuum
pump.

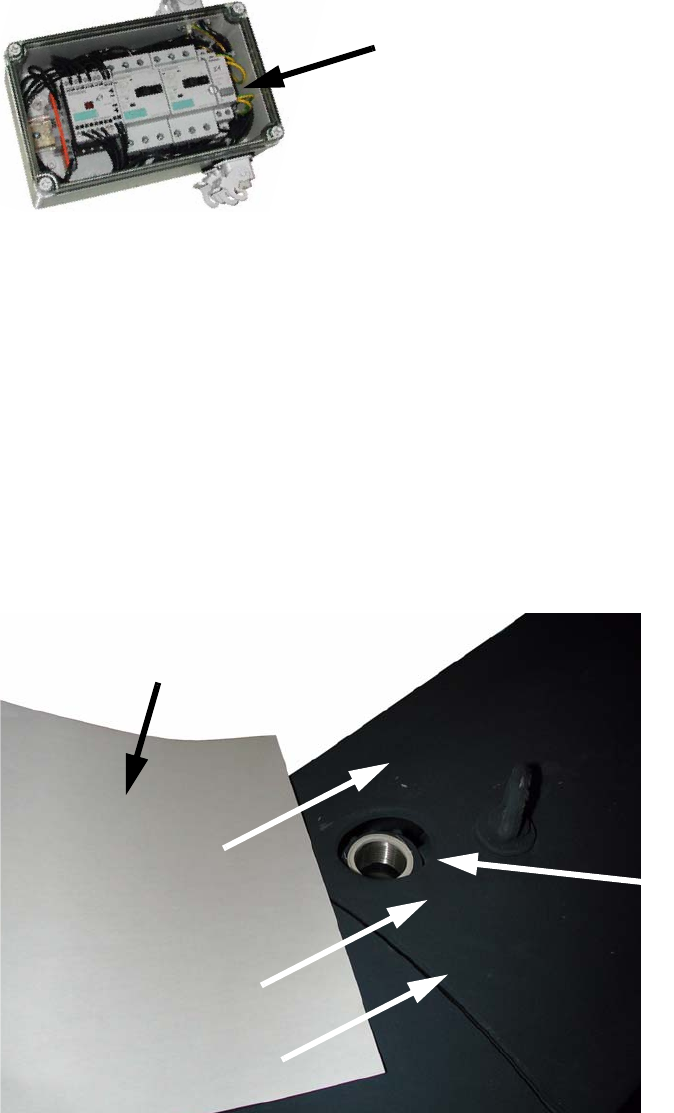

Button S1
2
2
: If the pump starts to turn incorrectly, switch off the entire system again. Disconnect the vacuum
pump from the supply voltage.
: If two connections for the vacuum pump exhibit the
same effect, you will have to rewire the con-
nection for the supply cable in the connection unit (swap
the two phases).
If only one vacuum pump is running incorrectly, rewire the motor contactor (by swapping the
two phases).
2
: Hold a sheet of paper over the intake opening of the vacuum pump to test whether the pump
is sucking or blowing. For vacuum pump operation, it must suck.
Intake opening
Intake opening
2
