Assembly instructions: Vacuum pump for SIPLACE X-series 04/2009 Edition 97 : If required, run the Cable , sub-distributor - vacuum pump (item no.: 03 075762-xx) from the ex - tension kit at location 2 to t he extension k…
Assembly instructions: Vacuum pump for SIPLACE X-series
04/2009 Edition
96
2.8.4 Connecting the vacuum pump controller
2
The cable is already installed on machines from serial number E-001. 2
2
: Open the covers on the extension kits at locations 2 and 4.
: At location 2,
pull out the drawer unit for the 30V DC/DC converter for the component feeding.

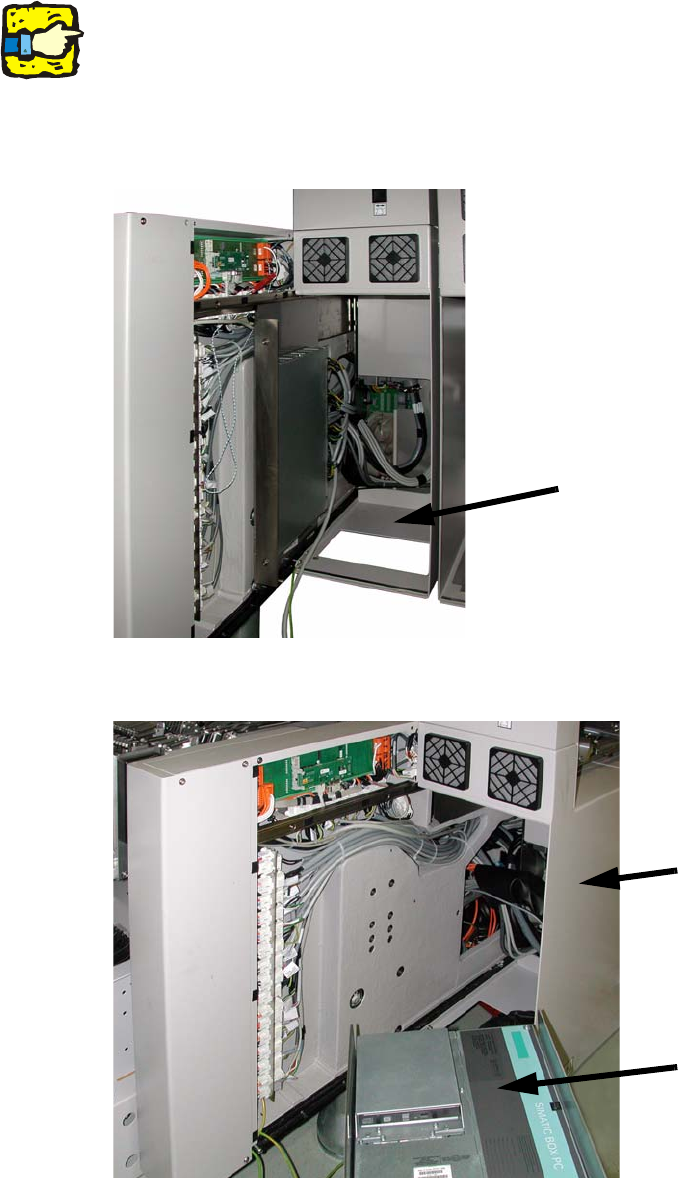

Extension kit at location 2
2
: At location 4, pull out the computer unit.
Extension kit at location 4
Computer unit
2
Assembly instructions: Vacuum pump for SIPLACE X-series
04/2009 Edition
97
: If required, run the Cable, sub-distributor - vacuum pump (item no.: 03075762-xx) from the ex-
tension kit at location 2 to the extension kit at location
4.
On more recent machines supplied after approx. Ju
ly 2009, this cable will already be included
in the wiring harness.
The cable can be run or pulled through the recesses in the machine frame.
2
CAUTION:
To do this, the machine must be disconnected from the supply volt
age since the cable has to be
pulled past the power supply unit. 2

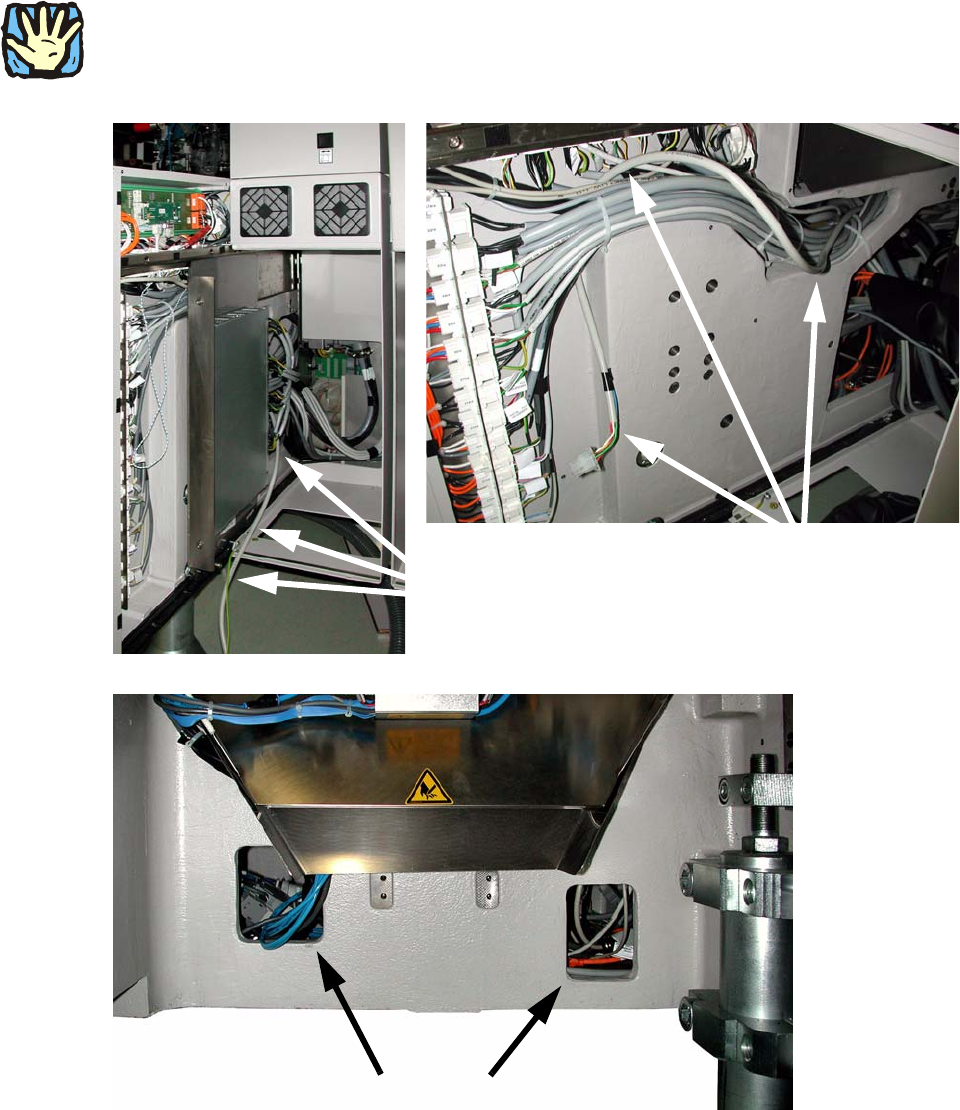

Cable at location 2
Cable at location 4
Holes for running the cable in the machine frame
2
Assembly instructions: Vacuum pump for SIPLACE X-series
04/2009 Edition
98

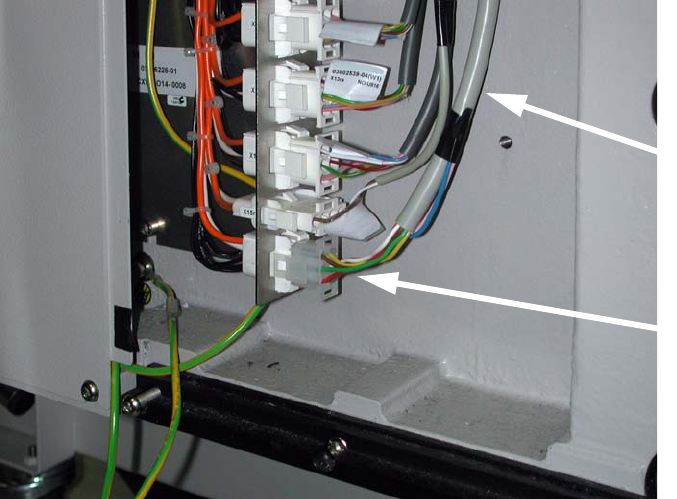

: Plug in at X16ra at location 4.
Connector
Cable from the
vacuum pump
