Service Work Y-guide carriage / Y-l oose bearing Replac e Exchange loose bearing running block LR205-2RSR [03076849- xx] 32 Service Manual (Internal) SIPLACE SX1/SX2/DX1/DX2 ▪ Resolve and remove the first loose bearing T…

100%1 / 38
Service Work
Exchange loose bearing running block LR205-2RSR [03076849-xx] Y-guide carriage / Y-loose bearing Replace
Service Manual (Internal) SIPLACE SX1/SX2/DX1/DX2 31
Service Work
Y-guide carriage / Y-loose bearing Replace Exchange loose bearing running block LR205-2RSR [03076849-xx]
32 Service Manual (Internal) SIPLACE SX1/SX2/DX1/DX2

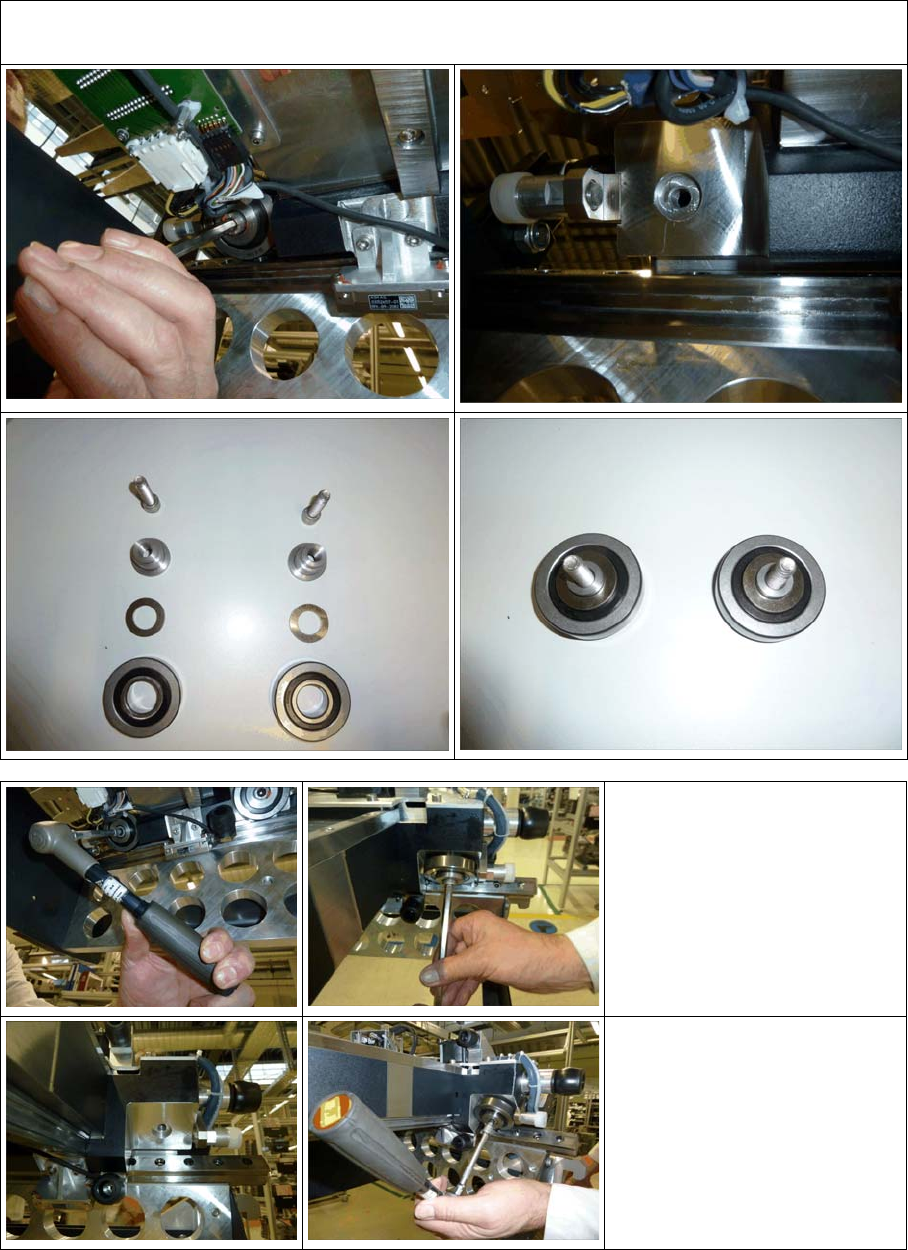

▪ Resolve and remove the first loose bearing
The bearing shaft is seated in a fit. If necessary, pry out the bearing carefully with a screwdriver.

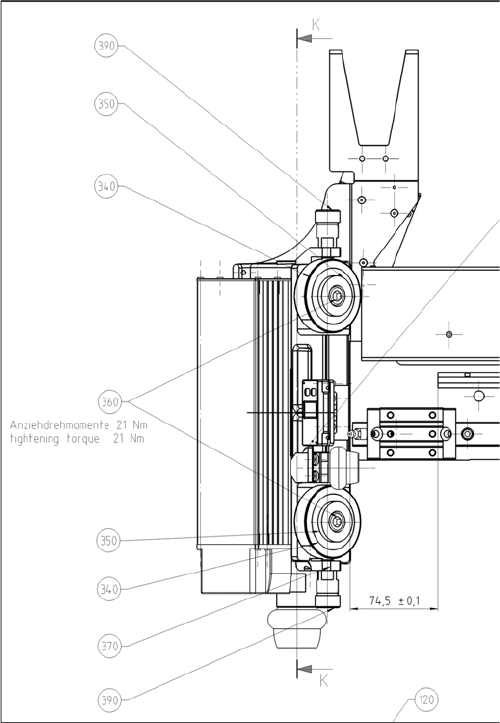

Attach the loose bearing and
tighten the screws to a torque of
21 Nm.
Repeat the work on the second
loose bearing.
Service Work
Exchange loose bearing running block LR205-2RSR [03076849-xx] Y-guide carriage / Y-loose bearing Replace
Service Manual (Internal) SIPLACE SX1/SX2/DX1/DX2 33
Check the guide rails on scuffs such as Chattermarks.If necessary, replace the guide rail. Please refer
to the chapter guide rails exchange in this internal service manual.
Mount the magnets as described in Chapter Magnets mount.
► Move the gantry as shown in the assembly gantry instructions SIP. SX1/SX2 [00196626-xx] section:
3.4 Installation of the gantry described back into the machine.
► Fix the cable chain with the hex spacers (these must be secured with Loctite 241. Plug all cables and
hoses again. For details, see also: Chapter: 3,5 trailing cable attach respectively service manuals
SX Chapter 3.3.12 Y-trailing cable exchange [03075584-xx]
► Mount the buffer and close the doors on the side. (The screws of the buffer with 14 Nm torque must
be tightened.
► Check the settings of the scanning head to the read head MS20.xxM / tester PG-U 03071361-xx
and set the Position possibly with the FEELER 0.75 mm plastic 03090774-xx as new.
► Calibrate the machine as shown in the assembly instructions gantry SIP. SX1/SX2 [00196626-xx]
chapter 3.6.6 perform calibration.
► Following calibration steps must be preformed:
1. Adjust encoder Y-axis
Travel range
3. Parameterization x-axis
4. Mapping Y-axis

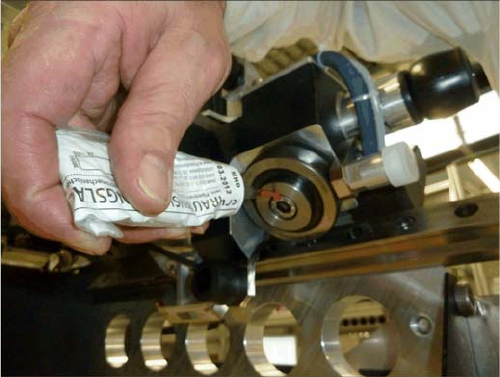

Both sides with the thread lock marked in red locking var-
nish.
Fit the cover plate
