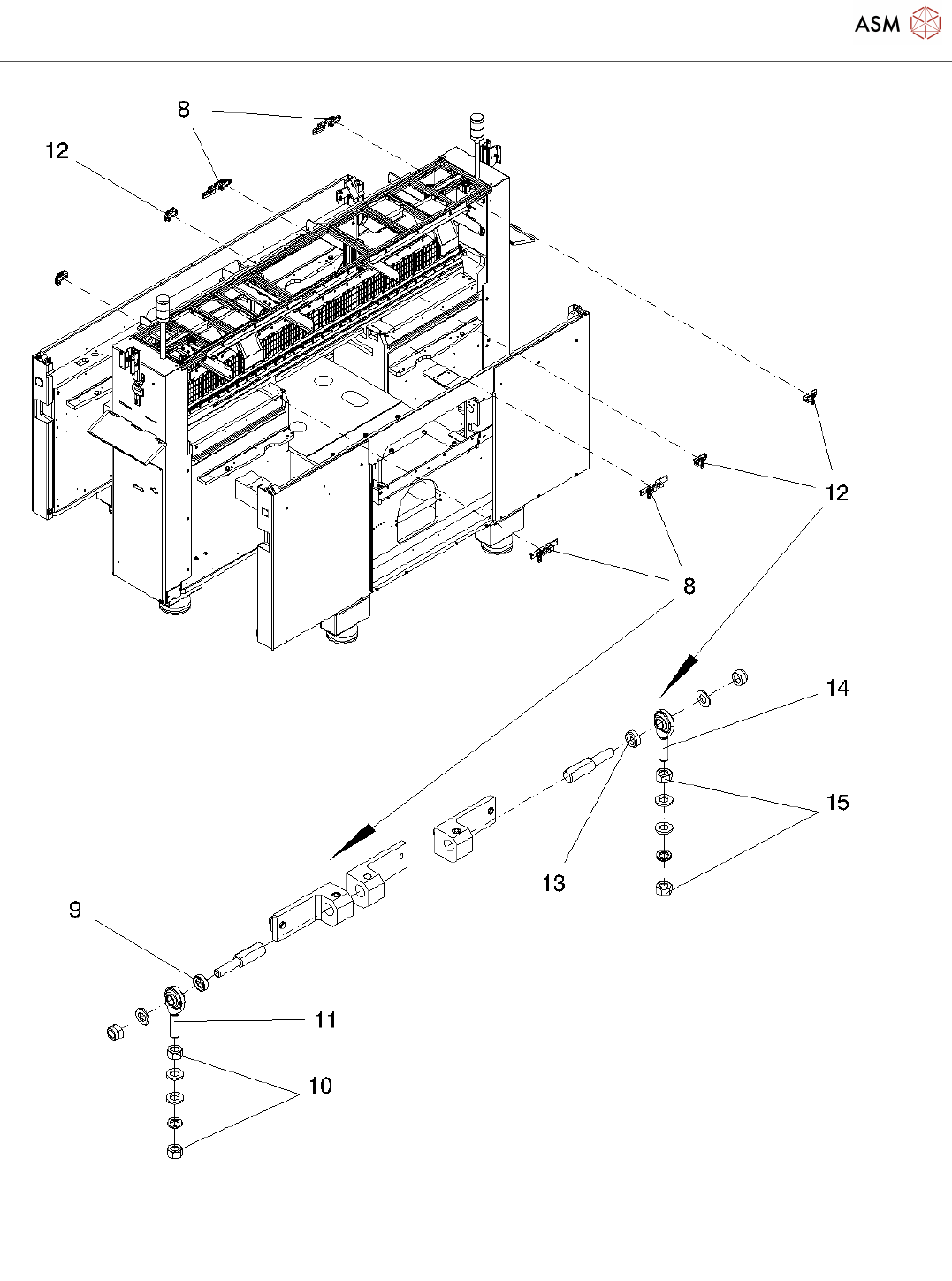

Pos. Item no. Description Part marking
1 03096775-01 D4 HOOD AND COVER SYSTEM
2 03096776-02 D4 COVER, SUPPORT FRAME,
ASSEMBLY
3 03093031-02 FAN ASSEMBLY-D4
4 03053515-03 Y-AXIS EXHAUST FAN D1, D2
5 03052317-02 FAN HOOD 1-PIECE SPARE PART
6 03076892-01 WIRE GRID FOR 120MM FANS SPARE PART
7 03009341-02 WARNING LABEL NO. 202
8 03097177-01 ROD END 2, ASSEMBLY
9 03043409-01 HINGE SPACER
10 03008172-01 ISO 4035 - M 8-ST SPARE
11 03044337-01 ROD END NOS 8 T SPARE PART
12 03096448-01 ROD END 1, ASSEMBLY
13 03043409-01 HINGE SPACER
14 03044337-01 ROD END NOS 8 T SPARE PART
15 03008172-01 ISO 4035 - M 8-ST SPARE
16 03092285-01 MAIN FAULT INDICATOR SPARE PART
17 03096895-01 HOOD SECTOR 1
18 03096394-01 D4 HOOD ASSEMBLY RIGHT, CPL.
19 03048379-01 ACTUATOR AZ 15/16-B1 SPARE PART
20 03044338-01 MUSHROOM BUMPER 10 X 5MM Wear Part
21 03042986-01 HS-D BAR CODE LABEL SECTOR 1 SPARE PART
22 03086853-01 WRITING SIPLACE WHITE ADHESIVE
170
SPARE PART
23 03096893-01 HOOD SECTOR 2
24 03096888-01 D4 HOOD ASSEMBLY LEFT, CPL.
25 03048379-01 ACTUATOR AZ 15/16-B1 SPARE PART
26 03044338-01 MUSHROOM BUMPER 10 X 5MM Wear Part
27 03043100-01 HS-D BAR CODE LABEL SECTOR 2 SPARE PART
28 03086852-01 WRITING ASM WHITE ADHESIVE 140
MM
SPARE PART
29 03096896-01 HOOD SECTOR 3
30 03096394-01 D4 HOOD ASSEMBLY RIGHT, CPL.
31 03048379-01 ACTUATOR AZ 15/16-B1 SPARE PART
32 03044338-01 MUSHROOM BUMPER 10 X 5MM Wear Part
