4 – 56
⑥ Mark
Select from the pop-up list box whether or not correction is made for placement
position using the local fiducial mark when the machine places a component on a
board.
When you enter the component ID, “No” (this means “not used”) appears as
default for the mark. To change the default setting, using the Edit key of clicking
the input field with the right button of a mouse, open the list box to select the
desired item.
When you select “Yes” (this means “planned to be used”), you have to enter
positions of two sets of local fiducial marks. If you enter the position of only one
set of fiducial marks, Placement data cannot be completed.
⑦ Mark position (Mark 1 X, Mark 1 Y, Mark 2 X and Mark 2 Y)
Using the formula bar, set the mark position.
The input value can be entered only when the Mark item set as “Yes”.
⑧ Mark recognition parameters (Mark-1TI, Mark-2TI)
These indicate obtained whether or not the recognition parameters of the mark is
already obtained.
Perform the teaching operation to obtain these parameters.
When teaching is complete, “OK” appears. If it is incomplete, there will be no
indication.
4 – 57

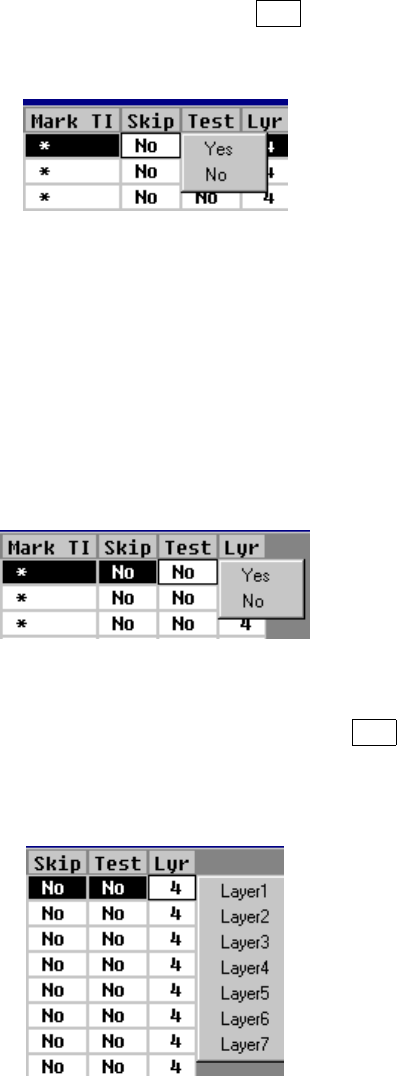

⑨ Skip
This item specifies whether or not to skip the displayed point of placement: Yes or
No
“No” (for “Not skipped”) is displayed as a default in the “Skip” field. To change
the setting of the “Skip” field, press the Edit key ( F2 key) or press the right
button of a mouse to open the list box and select “Yes” or “No”.
⑩ Test
This item specifies whether or not to carry out a test run. If you specify a
placement point within the range for trial run to set the conditions for a trial run,
only the Placement data whose “Test” field is set to “Yes” is used to perform a
trial run.
“No” (for “Not to carry out a test run”) is displayed as a default in the “Test list
box” field. To change the setting of the “Test” field, press the Edit key or click the
input focus with the right button of a mouse to call a list box and select “Yes” or
“No”.
⑪ Lyr (Layer)
To change the setting of the “Lyr” field, press the Edit key ( F2 key) or press the
right button of a mouse to open the list box, then select the desired layer. The
selectable layers are from the layer 1 to layer 7.
4 – 58
4.6.3 Range check
The range check to see if a component placement position is within a board (for a
single PWB) or within a circuit (for a multiple-circuit PWB) is performed with the
following timing. The range check error is processed as a warning or error.
① When data is entered
When you enter the placement position X or Y, or when you change either of
them, the machine performs the range check. If an error is detected, the
following warning dialog box appears on the screen.
• OK
When you click the <OK> button, the entered data is validated, then an
asterisk mark “*”, which indicates an over range error, is displayed on the left
of the placement data number. When you enter a value within the range, this
mark disappears.
• Cancel
When you click the <Cancel> button, the entered data becomes invalid, then
the machine enters Data input mode.
② When you are switching data type
• When PWB data becomes inactive
• When Placement data becomes inactive
Since Placement data over range error may occur, the machine performs the
range check. If an error is detected, the following warning dialog box appears
on the screen.
• OK Continues the data type switching operation.
• Cancel Terminates the data type switching operation.
When the machine switches the data type to Placement data
The over range mark is displayed at the over range placement data.
