1.2.3 Component feeder
Totally four component feeder banks are provided: two banks located at the front
and rear of the PWB transport unit, respectively. The component supply method
varies depending on the package style of components: tape , stick or bulk.
Tapes are fed from the tape feeder, sticks are from the stick feeder, and bulks are
from the bulk feeder respectively, and all types of feeders are mounted on the feeder
banks to feed each type of components.
When using the changer table (option), the feeder bank can be removed from the
main unit of this machine for preparation.
Figure 1.2.3.1
Feeder banks Feeder banks
PWB PWB
Feeder banks Feeder banks
Monitor
1 − 27

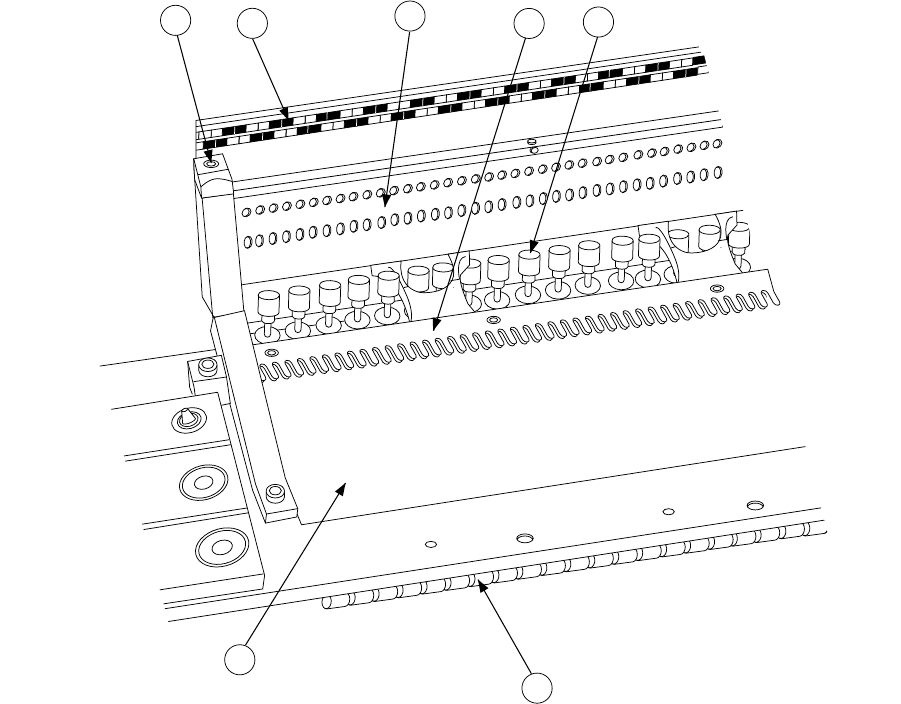

1. Feeder bank parts identification (See Figure 1.2.3.2.)
The tape feeder loaded with taped components and stick feeder loaded with
components in sticks are positioned and secured by the fixing plate
⑦
, fixing
plate B e, and lock shaft
④
.
The tape feeder is driven by the drive cylinders
⑤
.
The position label
⑥
is used to determine the position at which each feeder is
installed. You can see LED status of the FPI (optional) to decide where to set
each feeder.
The bank mark u is the mark for correcting the position of the feeder set.
6
2
4
1
5
7
3
①
Feeder bank
⑤
Drive cylinder
②
Fixing plate
⑥
Position label
③
Fixing plate B
⑦
Bank mark
④
Lock shaft
Figure 1.2.3.2
1 − 28

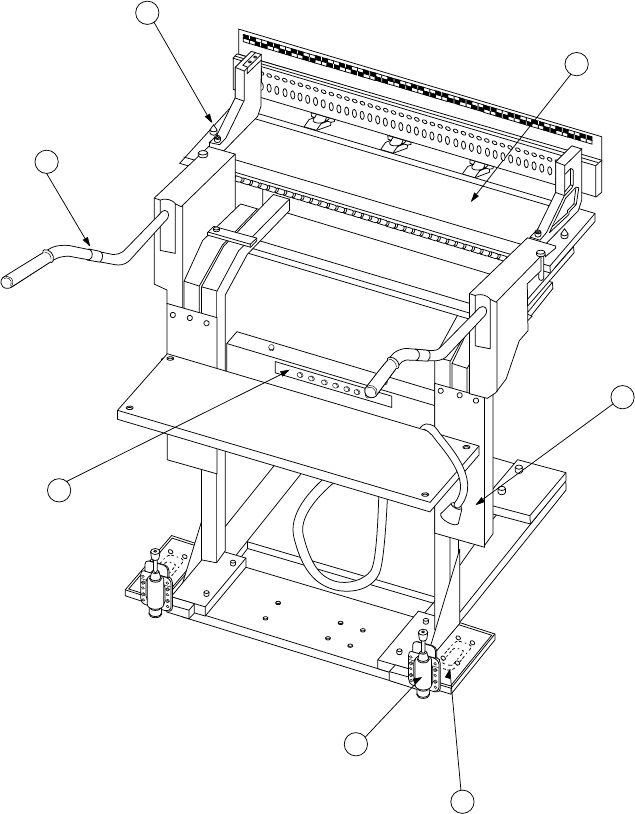

2. Overall feeder exchange trolley parts identification (See Figure 1.2.3.3.)
The Overall feeder exchange trolley is used to remove the feeder bank from the
main unit for easy preparation.
The feeder bank
①
can manually be moved by holding the trolly handle r which
is attached to the floor trolley
③
equipped with casters
②
. Positioning to the
main unit of this machine is carried out with the bank locate pins t on the left and
right. The Overall feeder exchange trolley can be fixed with the trolley stopper
⑥
.
2
1
5
4
6
7
3
①
Feeder bank
⑤
Bank locate pin
②
Casters
⑥
Trolly stopper
③
Floor trolley
⑦
Connector bracket
④
Trolly handle
Figure 1.2.3.3
