6 − 33
②
Left Front
When you select the [Window] command from the menu bar, the [Management
Info.] command on the displayed menu, then the [Left Front] command, the
screen shown in Figure 6.2.3.1.2 appears.
Figure 6.2.3.1.2 Prod. Information (Front)
To clear the production management information displayed on the screen, select the
[Window] command from the menu bar, the [Management info.] command on the
displayed menu, then the [Clear] command.
6.2.3.2 Storing the production management data
When you perform the "Save" command for a file after production, you can save the
production management information as a file separately.
6 − 34
6.2.4 Production information
Figure 6.2.4.1 Selecting the [Production Info.] command
Production information display the tact of a leaf PWB, all place rate, all pick rate, and
vacuum levels.
This section explains the procedures for displaying the production information.
(1) Conditions for creating the production information data
①
When the production mode is set for the PWB production.
②
Once all place rate and all pick rate is displayed, new data for the next
production is added to the previous data.
If you want entirely new data to be created, clear the data already created
from production management information.
(2) Items
①
Total management information
No. Item Description
1 Tact on a board Procedure time on a board.
2 All Place Rate Shows the component placement ratio of the entire machine.
3 All Pick Rate Shows the component pick-up ratio of the entire machine.
4 Pick Pos. Picking up a component or moving it to the pick-up position.
5 After component picked Now vacuum level after component picked of heads
6 After component placed Now vacuum level after component placed of heads
7 Attaching a nozzle
(no component)
Now vacuum level attaching a nozzle (no component) of heads
8 Picking a component
(component data)
Now vacuum level picking a component (component data) of heads
9 After component picked
thresholed
Now thresholed after heads picked a component
10 After component placed
thresholed
Now thresholed after heads placed a component
11 Judged result of vacuum error
(after comp. picked)
Judged result of vacuum error (after comp. picked) comparing now
threshold to now vacuum level
12 Judging result of vacuum error
(after comp. placed)
Judged result of vacuum error (after comp. placed) comparing now
threshold to now vacuum level
6 − 35
6.2.4.1 Basic operation to display production information
To display the production information,select the [window] command from the menu
bar, the [Production Info.] command. The screen shown in Figure 6.2.4.2 appears.

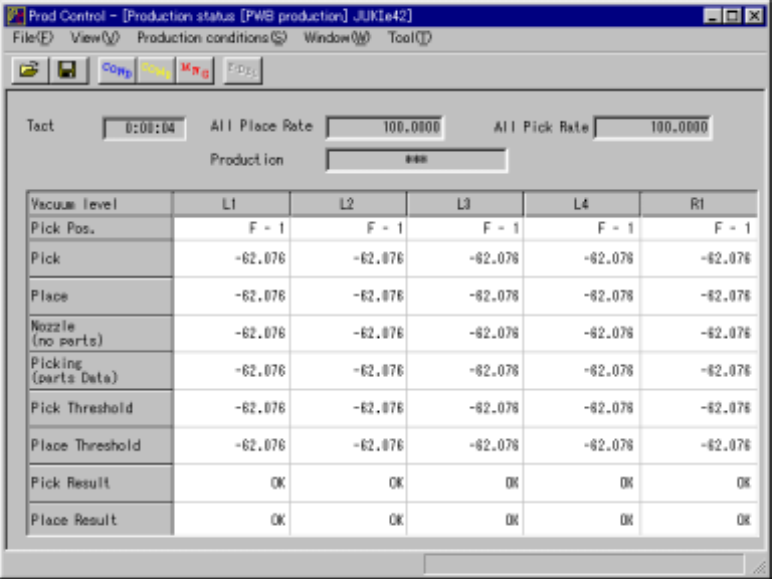

Figure 6.2.4.2 Production information
To clear all pick rate and all place rate of the production information displayed on the
screen,select the [Window] command from the menu bar,the [Managemen info.]
command on the dsiplayed menu,then the [Clear] command.
To clear tact,all pick rate and all place rate of the production information displayed on
the screen,when the file reading.
◇
The tact is showed producing and idling.
◇
Shown used to produced tact in idling.
◇
Shown vacuum level used during production.
