8 − 43 1) V acuum W hen the radio button “V acuum ” is checked, you can turn on/off vacuum of the vacuum table. W hen the radio button “V acuum” is checked, click the <O N>, <OFF> or <ON/OFF> but ton or…
8 − 42
8.3.5 Vacuum Table Control
When you select the [Ctrl] command on the “Manual control” menu, the [Conveyor]
command on the displayed menu, and then the [Vacuum table control] command, the
following “Vacuum table control” dialog box appears on the screen.

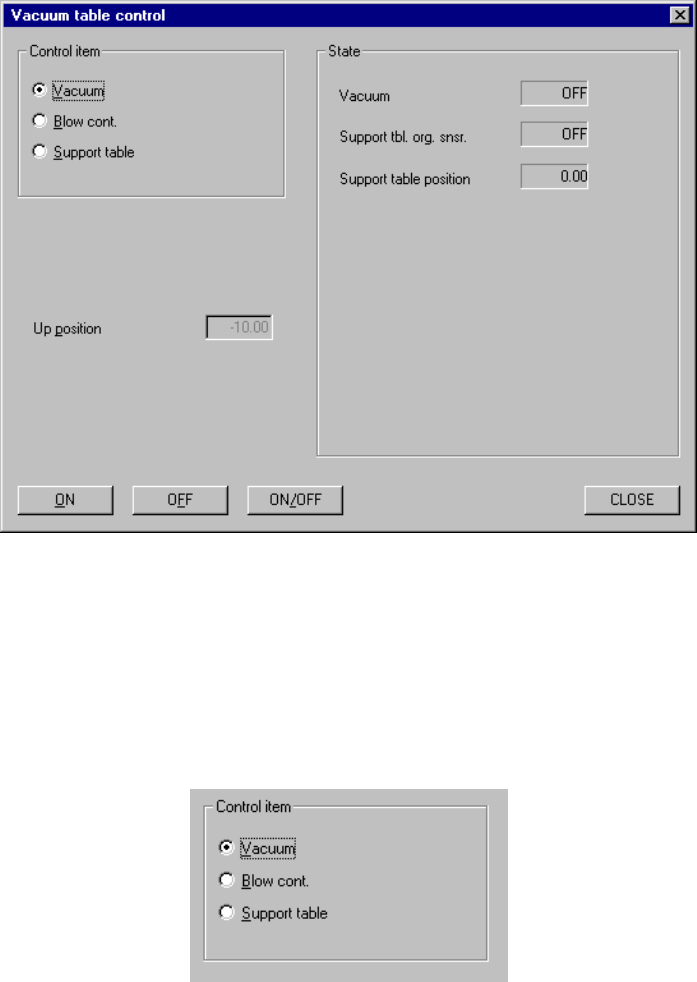

Figure 8.3.5 “Vacuum table control” dialog box (Screen example when a KE-2020 is
used)
(1) Control items
Select which item is to be controlled with checking the corresponding radio
button.
(2) Control buttons
By clicking each control button, you can control the selected control item.
The actually displayed control buttons vary depending on the control item you
selected.
8 − 43
1) Vacuum
When the radio button “Vacuum” is checked, you can turn on/off vacuum of
the vacuum table.
When the radio button “Vacuum” is checked, click the <ON>, <OFF> or
<ON/OFF> button or press the F3, F4 or F5 button.
The “State” display is updated when the selected vacuum function is
controlled completely.
2) Blow cont
When the radio button “Blow cont” is checked, you can turn on/off the blow
function of the vacuum table.
When the radio button “Blow cont” is checked, click the <ON>, <OFF>, or
<ON/OFF> button, or press the F3, F4 or F5] key.
The state display is updated when the selected blow function is controlled
completely.
3) Support table
When the radio button “Support table” is checked, you can move up or
down the support table.
When the radio button “Support table” is checked, click the <UP>,
<DOWN> or <UP/DOWN> button, or press the F3, F4 or F5] key.
(3) State
This column shows the condition of each unit when controlled completely.
8 − 44
8.4 Feeder Knock Pin Control
When you select the [Feeder] command on the [Ctrl] menu, then the [Feeder knock
pin control] command, the following “Feeder knock pin control” dialog box appears.
Figure 8.4.1 Feeder knock pin control screen
(1) Control item
Select a control item with the corresponding radio button.
You can select the control item on the FPI control only when the “Feeder position
indicator” is checked (installed) on the “Option” menu of the MS parameter.
This selection does not affect the setting of the “Device enable” menu invoked
from the Machine Setup menu (this means that you can select a not-checked
unit).
(2) Control position
When selecting “Tape feeding action” as the control item, select the position of
the pin to be controlled from the control side (using the radio button) and the
number (using the edition box).
