9 − 18
9.4.5.3 Setting the warning level
When you select the [Tool] command on the menu bar, the [The Warning level is set]
command on the displayed menu, then the [Each nozzle] Command the screen
appears as shown in Figure 9.4.2.3.1.

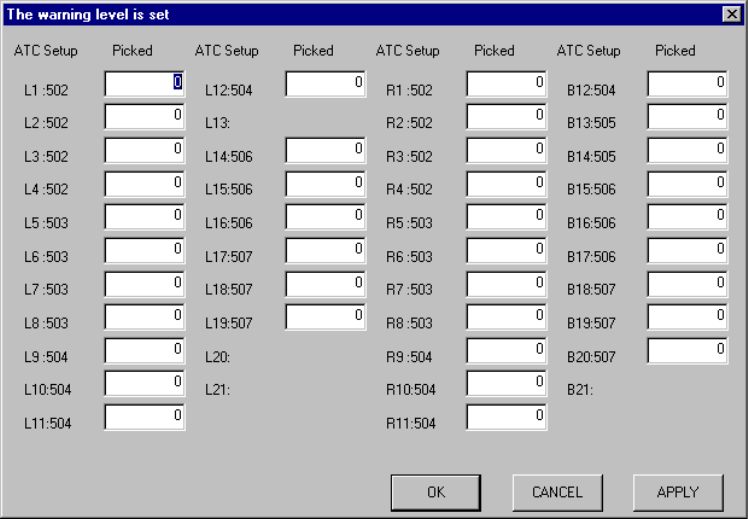

Figure 9.4.5.3.1 <Warning level is set> dialog box
◆ If the number of times components were picked up actually exceeds the warning
level you set here, the nozzle is displayed in yellow on the "Operation Information
of each nozzle" screen shown in Figure 9.4.2.1.1.
The signal lights lighting condition remains unchanged.
9 − 19
9.4.5.4 Setting the error level
When you select the [Tool] command on the menu bar, the [The Error level is set]
command on the displayed menu, then the [Each nozzle] command, the screen
appears as shown in Figure 9.4.5.4.1.
This screen allows you to set the error level.
Figure 9.4.5.4.1 "The error level is set" dialog box
◆ If the number of times components were picked up actually exceeds the error
level you set here, the nozzle is displayed in red on the "Operation Information of
each nozzle" screen shown in Figure 9.4.5.1.1.
The signal lights lighting condition remains unchanged.
9 − 20
9.4.6 Resetting the operation information data
9.4.6.1 Resetting each screen of the operation information
When you select the [Tool] command on the menu bar, then the [Reset] command on
the Tool menu while the "Driver Operation Information" window is being displayed on
the screen, the following dialog box appears on the screen.
Figure 9.4.6.1.1 "Reset [Driver Operation Information] dialog box
When you select the [Tool] command on the menu bar, then the [Reset] command on
the Tool menu while the "Light Operation Information" window is being displayed on
the screen, the following dialog box appears on the screen.
Figure 9.4.6.1.2 "Reset [Light Operation Information] dialog box
