13 − 3

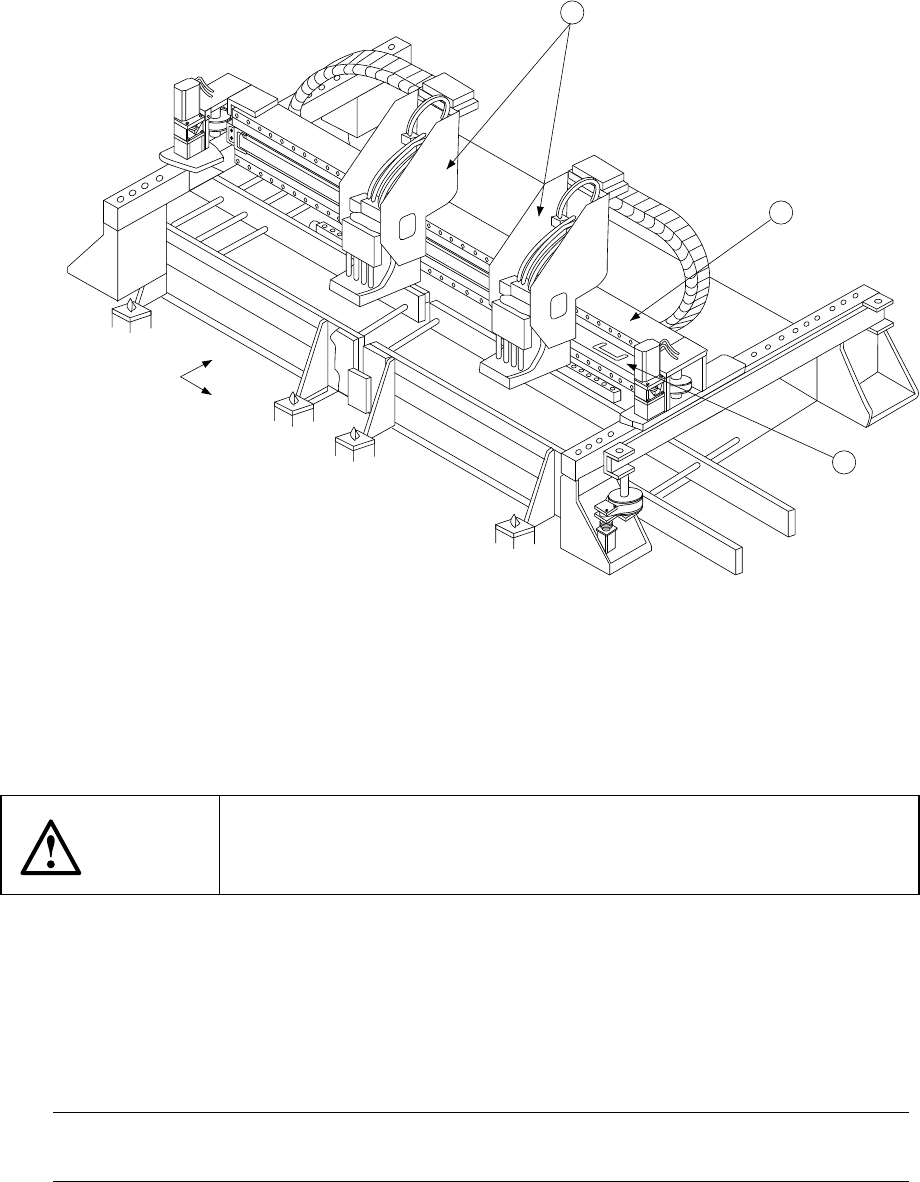

13.1.2 Moving the head unit
3
2
Y
X
1
① Head unit
② X-axis unit
③ Grip
Figure 13.1.2
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, turn off the power of the machine before
following the operation above.
1. To move the head unit in the X direction with your hand, hold the holes located on
the side of the head unit ① with both your hands to move it.
2. To move the head unit in the Y direction with your hand, hold the grip ③ of the
X-axis unit ② to move it.
Note: Before moving the head unit manually, be sure to move four Z slide shafts of
the head unit upwards to the top.
13 − 4
13.2 Check
13.2.1 Air pressure
Checking to see if the air pressure is 0.49 Mpa.

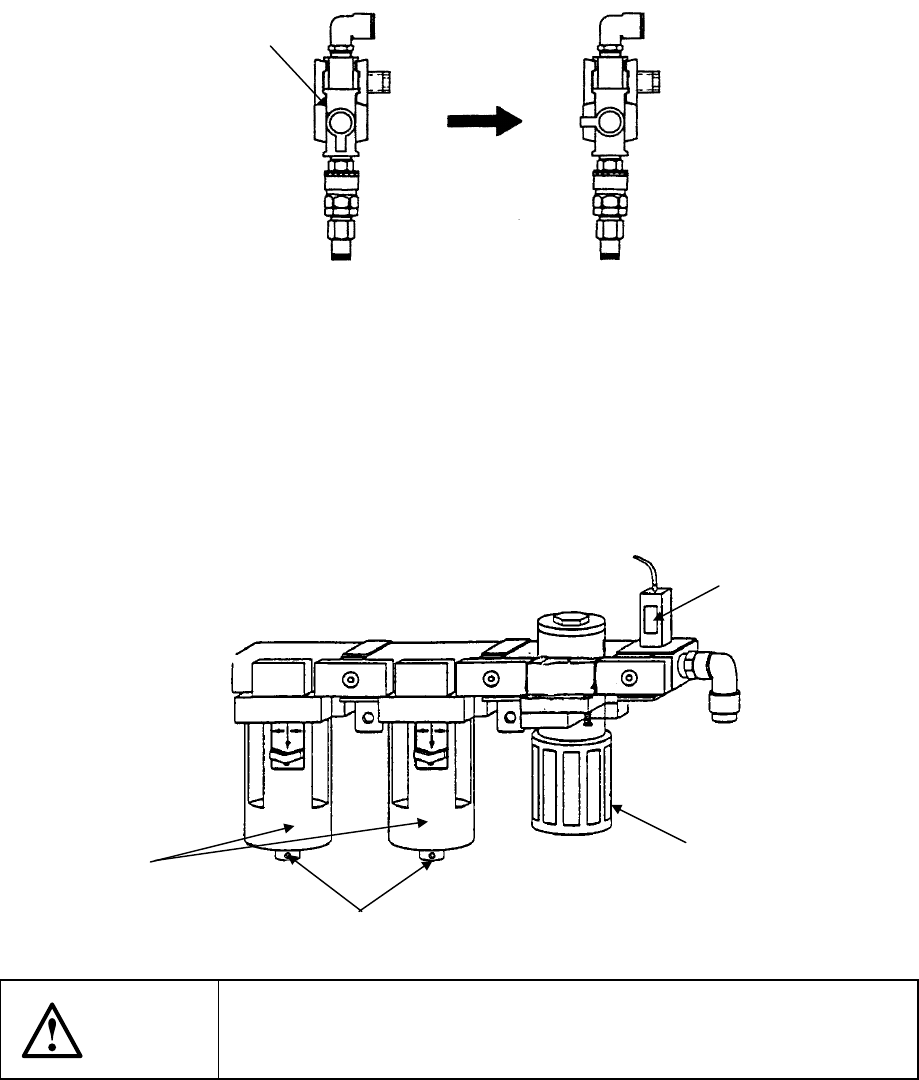

How to adjust the air pressure
1) Set the control to the Open position as shown in Figure below.
2) Pull the knob of the regulator ② downward, then rotate it so that the pressure of
the used air can become 0.49 MPa.
3) Peep into the small window ③ located at the center of the pressure switch to
check to see if the pressure is 0.39 MPa (this value is set at the factory).
4) If there is any oil or water in the drain, push the control ④ to drain it out.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, turn off the power of the machine before
following the operation above.
①
CLOSE
OPEN
③
②
④
Drains
13 − 5

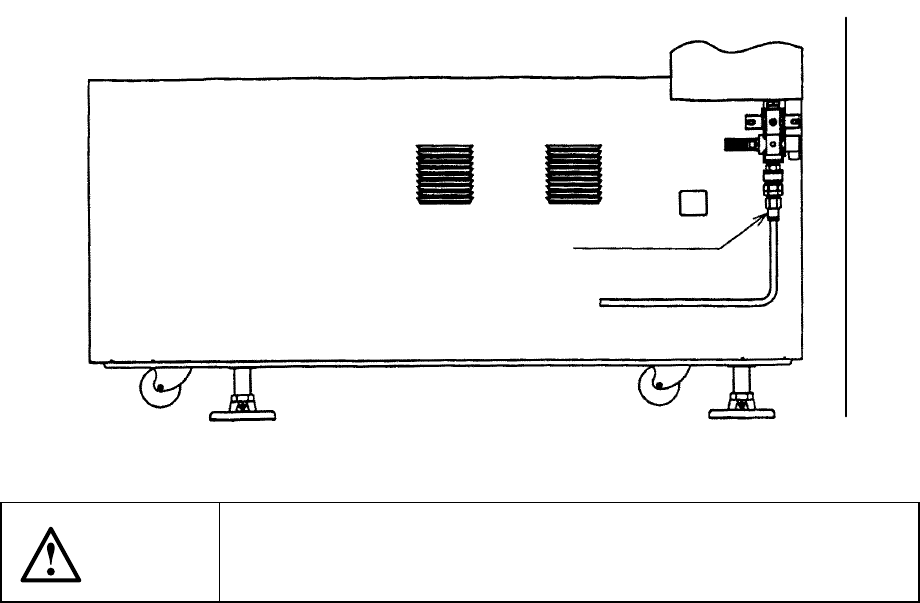

13.2.2 Piping and joint
Check that there is no air leakage.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, turn off the power of the machine before
following the operation above.
13.2.3 Unit air cylinder
Turn on the power of the machine, select the machine setup items, and check that
operation is possible.
Check to see if there is no air leakage.
Front side.
