Chapter 2
Inspection Items for Maintenance
Multi-Functional Placer
STM1-S Maintenance Handbook
2-2

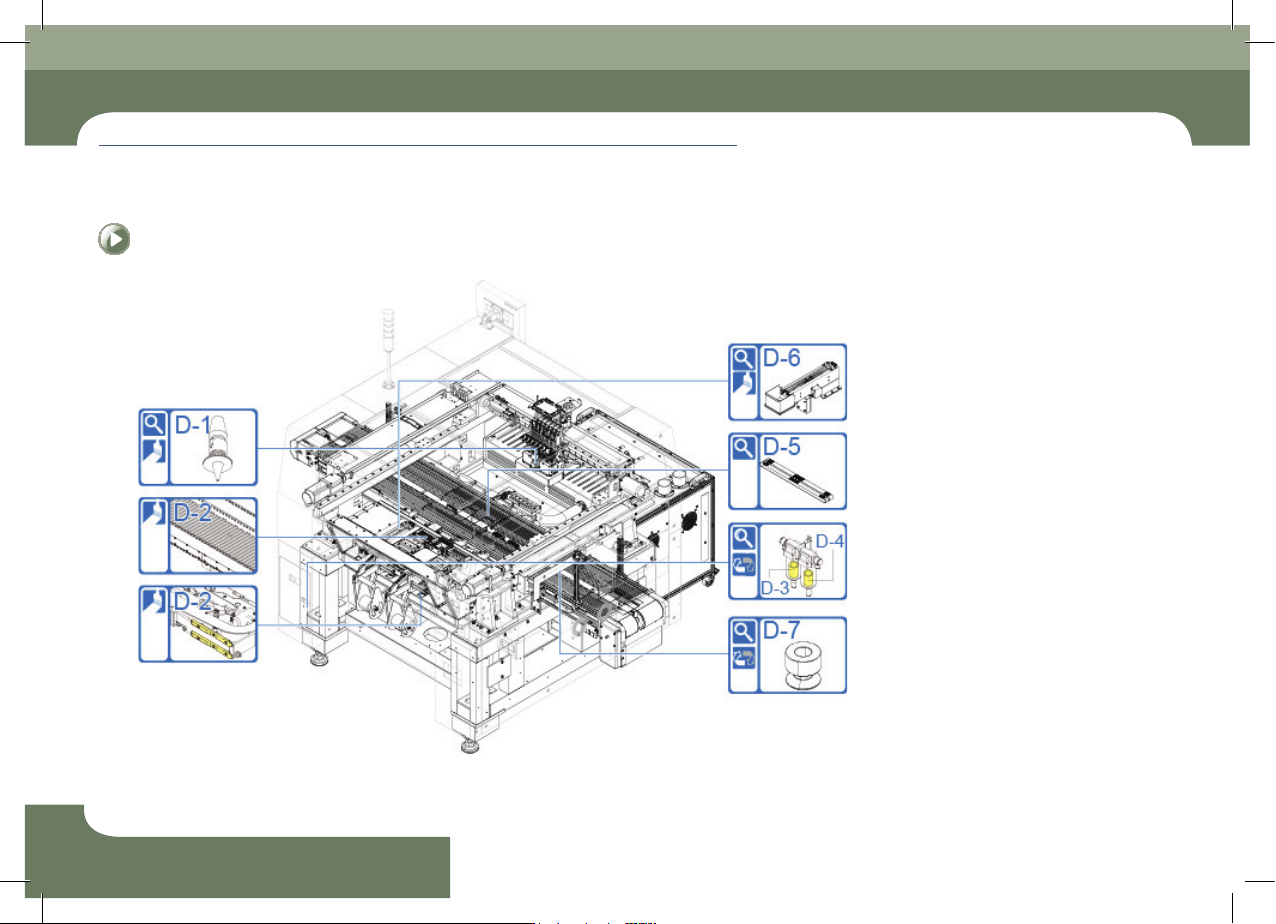

Daily Inspections
Inspection Items for Maintenance
Chapter 2
Inspection Items for Maintenance
Multi-Functional Placer
STM1-S Maintenance Handbook
2-3

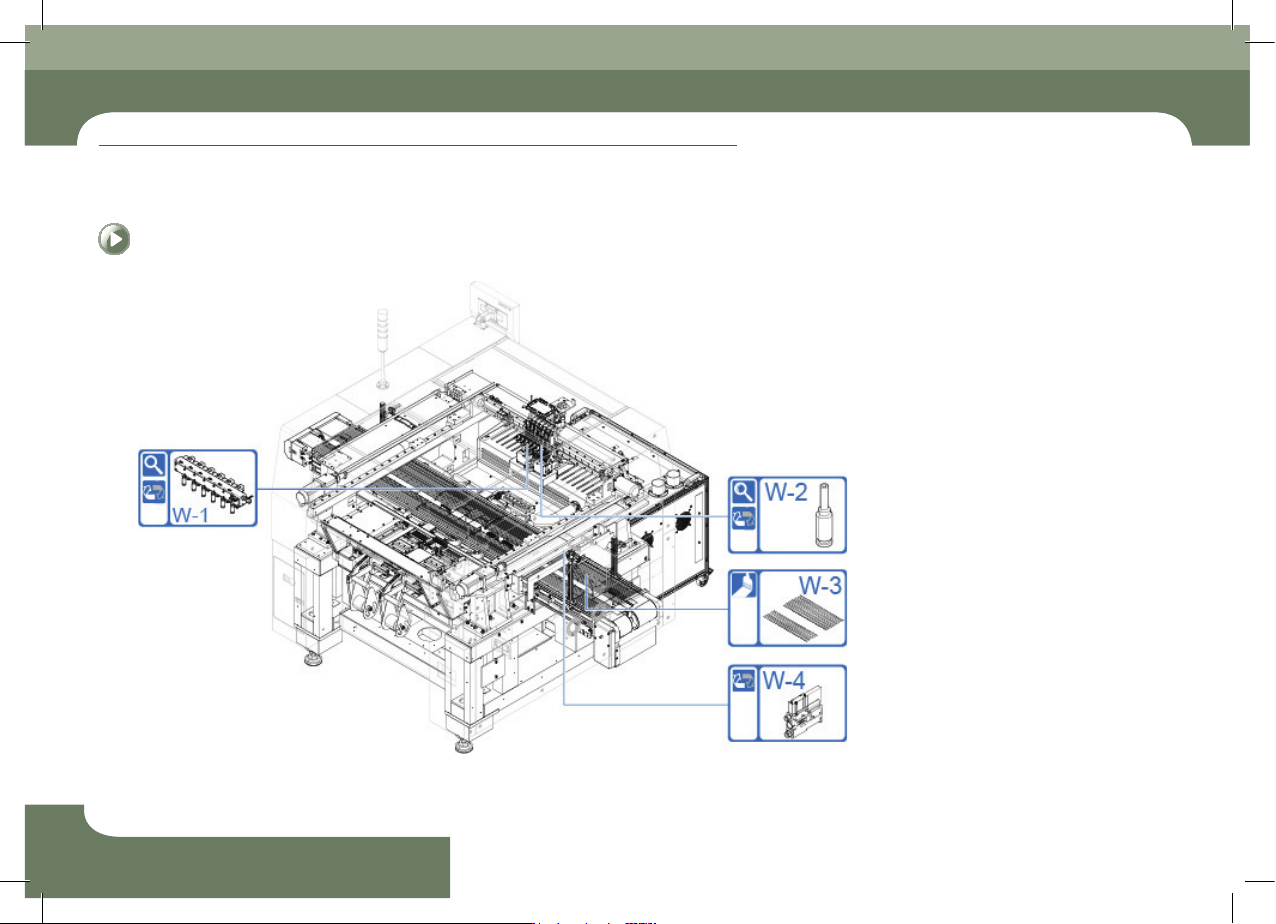

Weekly Inspections
Check-up List
Replacement
Time
Reference
Time
required
Period No Inspection Item Measures Tools
Weekly
W-1 Solenoid Valve Inspect and replace 2 years
Contact C/S for
replacement
20 Minutes
W-2 Head Vacuum Filter Inspect and replace 6 months
Contact C/S for
replacement
30 Minutes
W-3 Conveyor chamber Clean Cloth 15 Minutes
W-4 Detach vacuum ejector filter Replace 10 Minutes
Setting the replacement period for parts
ㆍ Based on the regulated use environment.
ㆍ If the use environment is poor, the intervals for part inspection and replacement can be shortened.
ㆍ In the above table, C/S means our designated C/S company (STS) or our overseas local agents.
Weekly Inspections
Chapter 2
Inspection Items for Maintenance
Multi-Functional Placer
STM1-S Maintenance Handbook
2-4
Weekly Inspections
Inspection Items for Maintenance
