Chapter 2
Inspection Items for Maintenance
Multi-Functional Placer
STM1-S Maintenance Handbook
2-4
Weekly Inspections
Inspection Items for Maintenance
Chapter 2
Inspection Items for Maintenance
Multi-Functional Placer
STM1-S Maintenance Handbook
2-5
Monthly Inspections (1/2)
Check-up List
Replacement
Time
Reference
Time
required
Period No Inspection Item Measures Tools

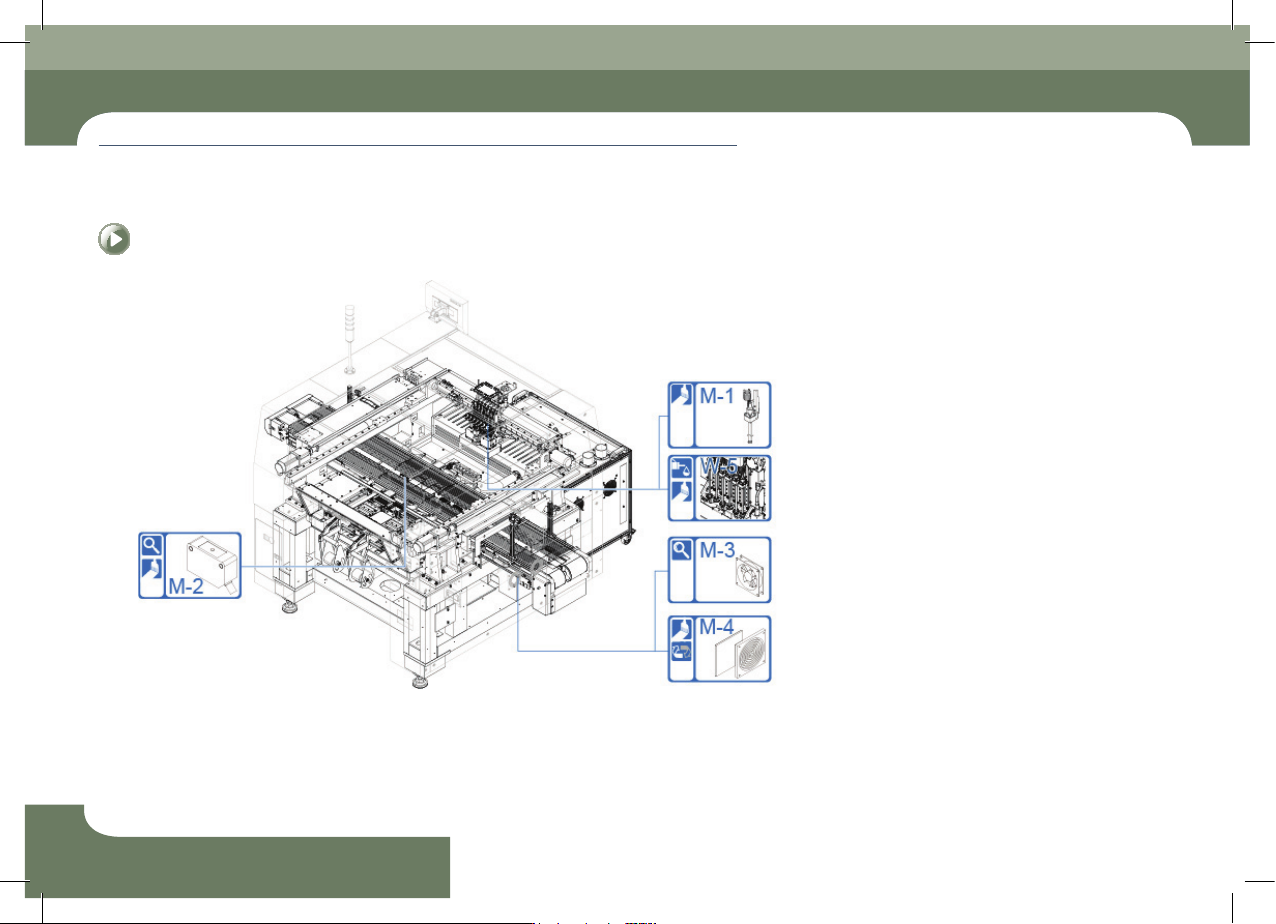

Monthly
M-1 Head Spindle Clean Air gun, cloth 30 Minutes
M-2 Conveyor Sensor Inspect and clean Cotton swab, cloth 10 Minutes
M-3 Cover Cooling Fan Inspect and clean
Crosshead screwdriver,
vacuum cleaner
10 Minutes
M-4 Cover Cooling Fan Filter Replace Vacuum cleaner 6months 15 Minutes
M-5 Head LM Guide, Ball Spline Clean and apply grease Brush, cloth
Apply grease period:
3 months
30 Minutes
Setting the replacement period for parts
ㆍ Based on the regulated use environment.
ㆍ If the use environment is poor, the intervals for part inspection and replacement can be shortened.
ㆍ In the above table, C/S means our designated C/S company (STS) or our overseas local agents.
