STM1-S Maintenance Handbook
3-8
Chapter 3
Daily Inspection
Multi-Functional Placer
Checking and replacing the air filter
Daily Inspection

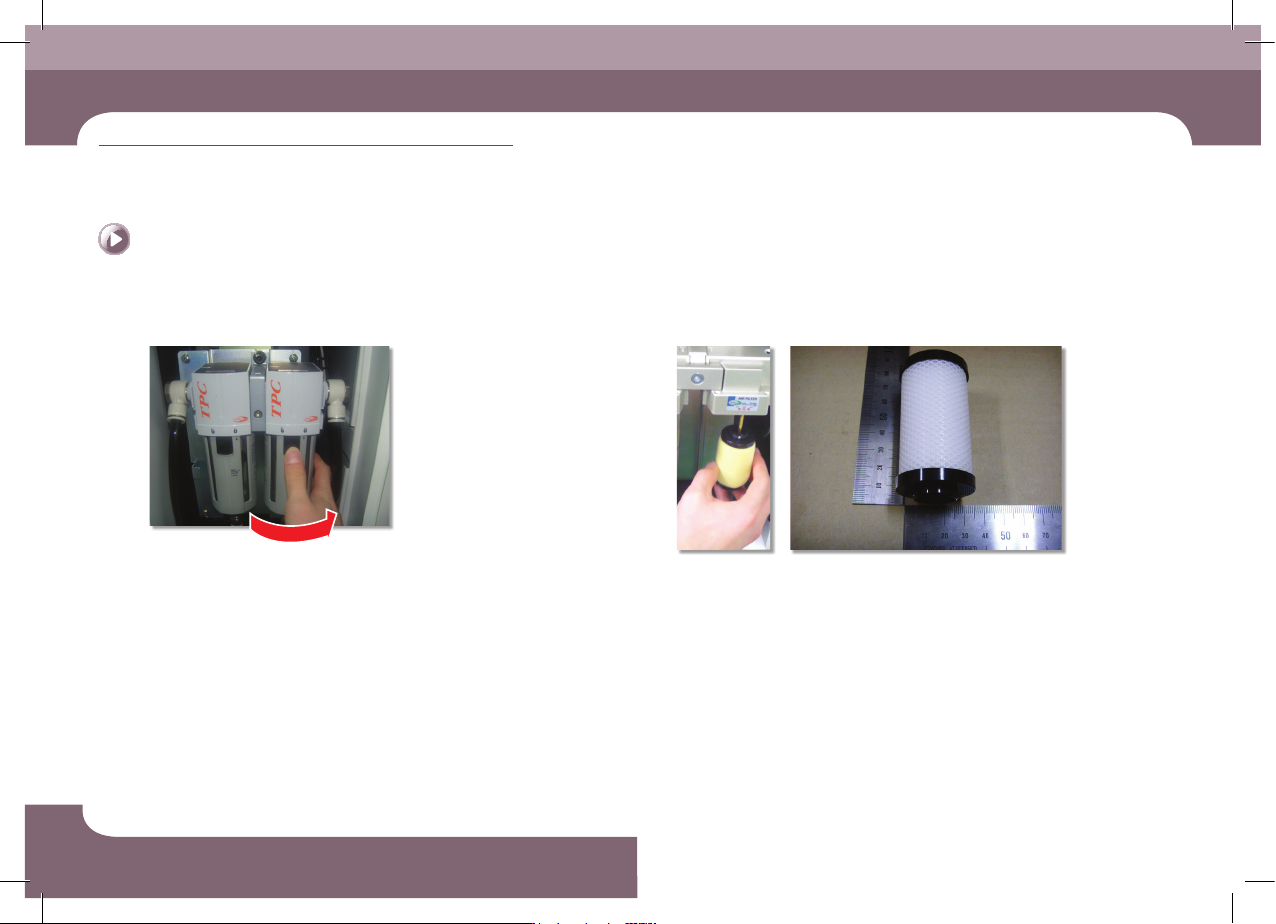

Step 4.
Separate the container by turning it counterclockwise
Step 5.
Turn the filter clockwise to separate it.
Step 6.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
STM1-S Maintenance Handbook
3-9
Chapter 3
Daily Inspection
Multi-Functional Placer
Checking and replacing Mist Separator Filter
Clean the dust from the air to prevent machine failure due to foreign materials when
using pneumatic air.
Measures
Step 1.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 2.
Shut the main pneumatic pressure supplied to the
machine.
Step 3.
Press down on the mist filter container lock button.
Caution
Failure to shut off pneumatic pressure when replacing the air filter
or mist separator filter may result in personal injury. Shut off the
pneumatic line before replacing any of these parts.
Mist Separator Filter
is discolored.
Checking and replacing Mist Separator Filter
(Time required: 30min / No. D-4)
STM1-S Maintenance Handbook
3-10
Chapter 3
Daily Inspection
Multi-Functional Placer
Checking and replacing Mist Separator Filter
Daily Inspection
Step 4.
Separate the container by turning it counterclockwise
Step 5.
Turn the filter clockwise to separate it.
Step 6.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
