STM1-S Maintenance Handbook
3-13
Chapter 3
Daily Inspection
Multi-Functional Placer
Inspection and replace the Detach nozzle pad
Measures
Step 1.
Moves Detach to a location of Dump.
Step 2.
DETAPE PICK SOL in IO status dialog box is activated.
Inspection and replace the Detach nozzle pad
(Time required: 5min / No. D-7)
STM1-S Maintenance Handbook
3-14
Chapter 3
Daily Inspection
Multi-Functional Placer
Inspection and replace the Detach nozzle pad
Daily Inspection
Step 3.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 4.
Opens the Detach cover and remove nozzle pad
manually.
Step 5.
If the nozzle pad is contaminated or torn, it must be
replaced.
Caution
Be careful not to cause any damage to a part that absorbs obsolete
tapes.
It is recommend to replace the nozzle pad every 6 months.
Weekly Inspection
Chapter 4
Multi-Functional Placer
STM1-S Maintenance Handbook
4-1

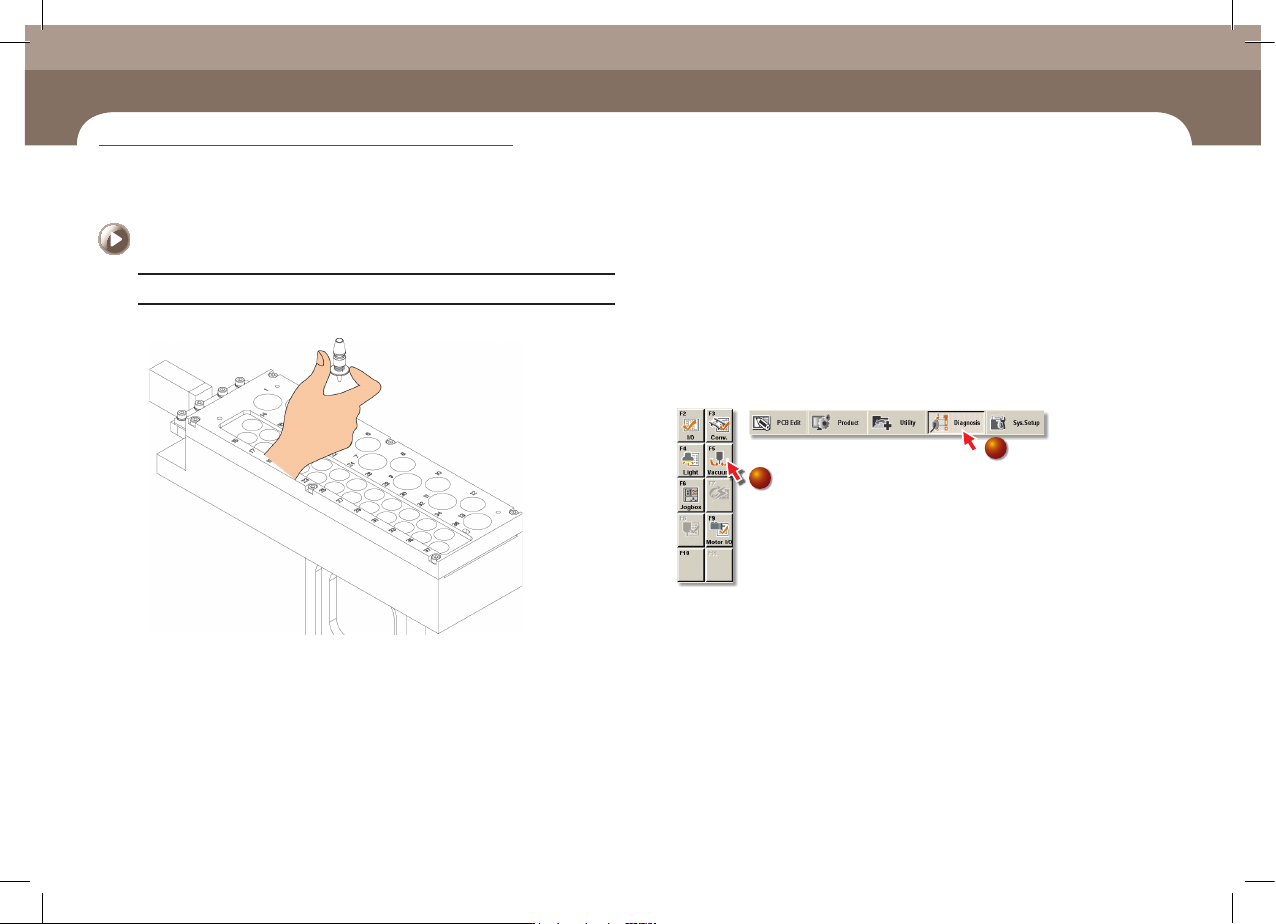

Checking the Solenod Valve
Measures
Step 1.
Insert the CN040 nozzle into the ANC.
Step 2.
Operate the machine to install the CN040 nozzle of the
ANC on the head.
Step 3.
Select the 'Diagnosis' menu of the MMI and select the
'Vacuum' submenu.
2
1
Checking the Solenod Valve
(Time required: 20min / No. W-1)
Chapter 4
Weekly Inspection
