Checking the Solenod Valve
Weekly Inspection
Step 4.

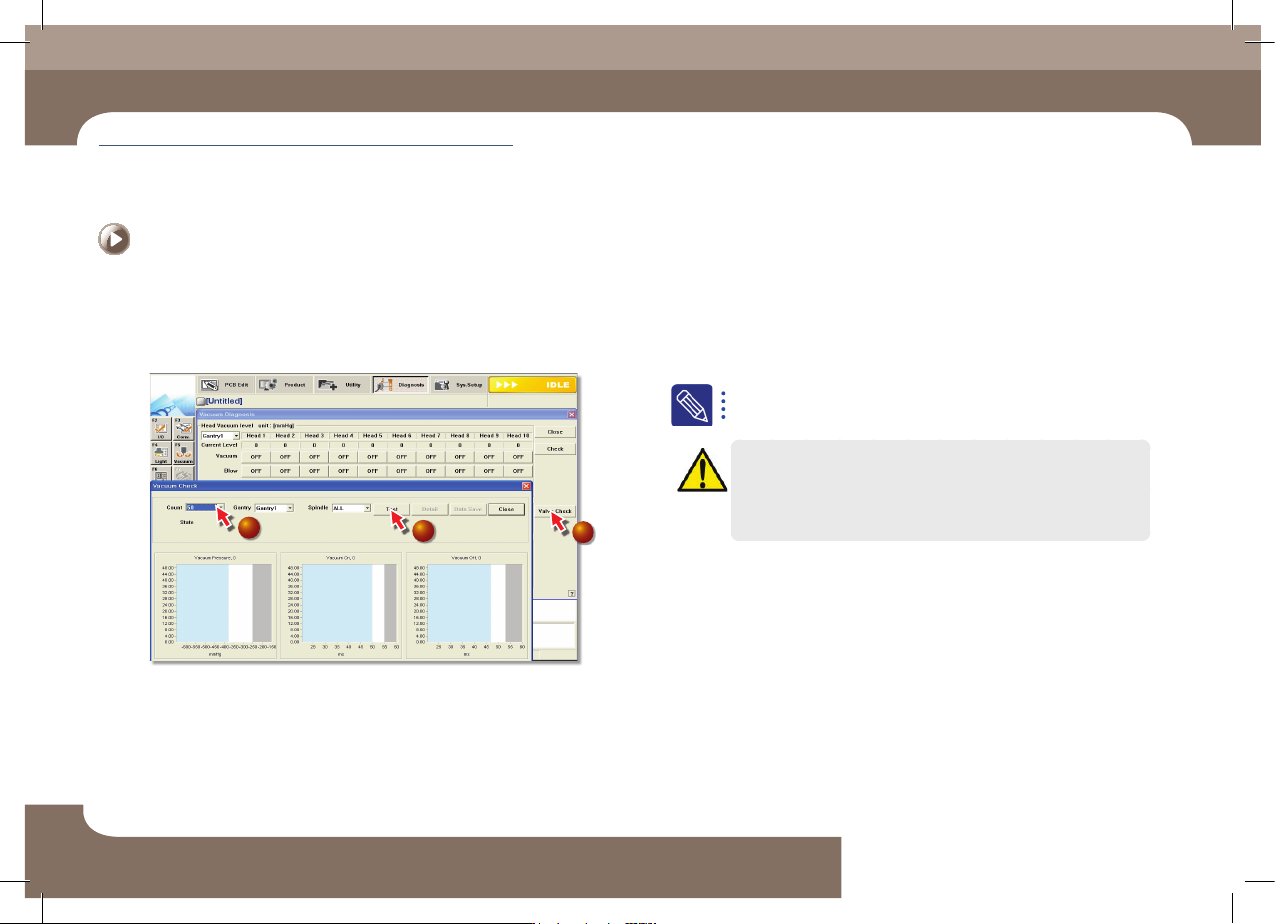

Click the <Valve Check> button and select the Vacuum
ON/OFF count in the <Try> combo box of the 'Valve
Check' dialog box and then click the <Test> button.
3
5
4
Step 5.
If the check result shows that the solenoid valve has a
problem, contact our STS or local agent to replace the
corresponding solenoid valve.
For further details related to the solenoid valve check or for any
problems, refer to '14.4 Vacuum' of the Administrator's Guide.
Caution
Check the vacuum filter every week and replace it within at least 6
months to ensure the vacuum for part pickup is generated properly.
It is recommended that the solenoid valve, which is a consumable
product, is replaced every two years to ensure stable operation.
Weekly Inspection
Chapter 4
Multi-Functional Placer
STM1-S Maintenance Handbook
4-3
Checking and Replacing Head Vacuum Filter
Checking and Replacing Head Vacuum Filter
Measures
Step 1.
Move the X Frame to front by referring to "Forward
movement of the X-frame" on page 1-3.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.

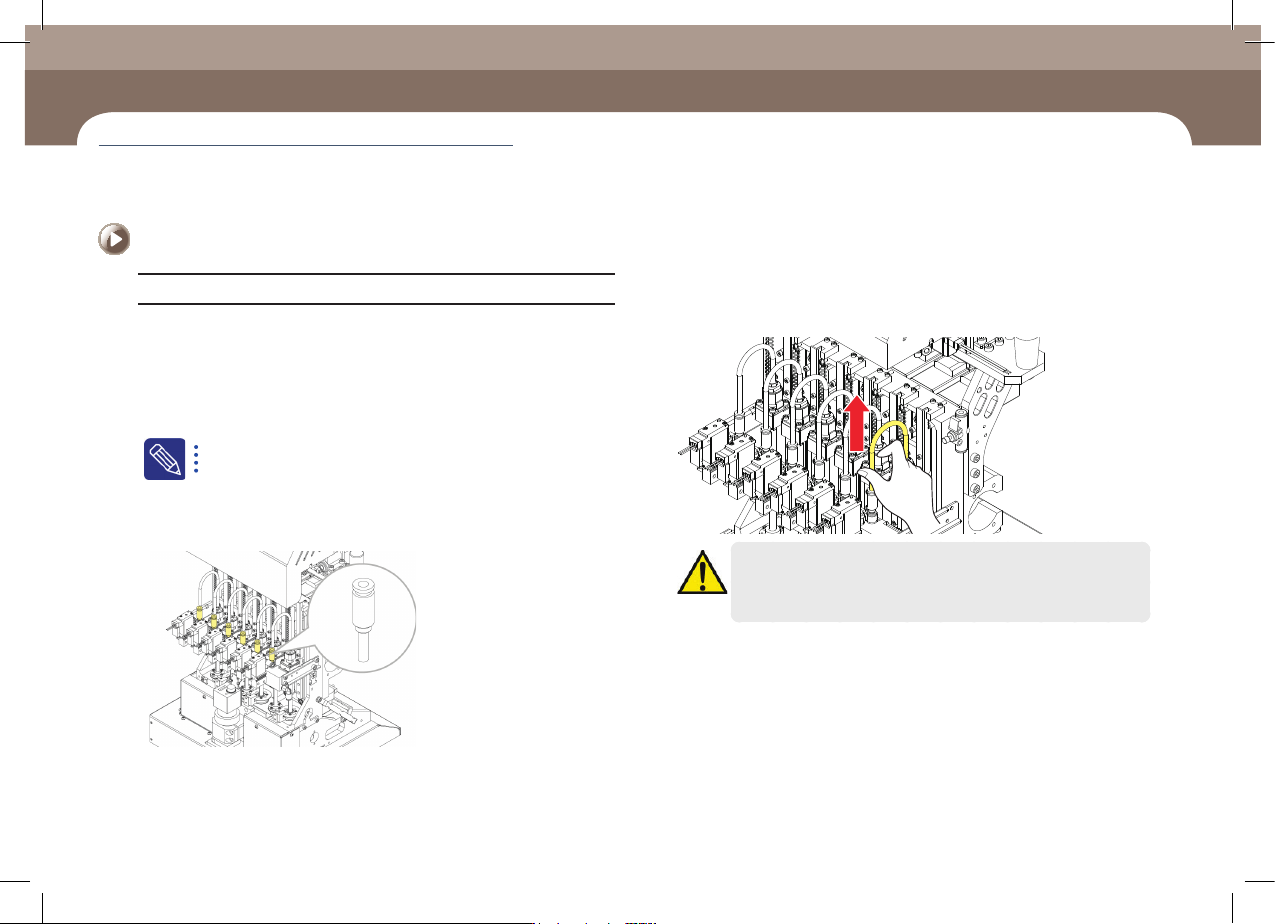

Check for discoloration of the vacuum filter. (It is
recommended that you inspect for filter discoloration
monthly).
Step 4.
Saparate the coil tube from vacuum filter
Caution
Confirmation of Vacuum Filter inspection or after the exchange after
the Filter and the Tube and the assembled state.
(Time required: 30min / No. W-2)
Weekly Inspection
Chapter 4
Multi-Functional Placer
STM1-S Maintenance Handbook
4-4
Checking and Replacing Head Vacuum Filter
Weekly Inspection

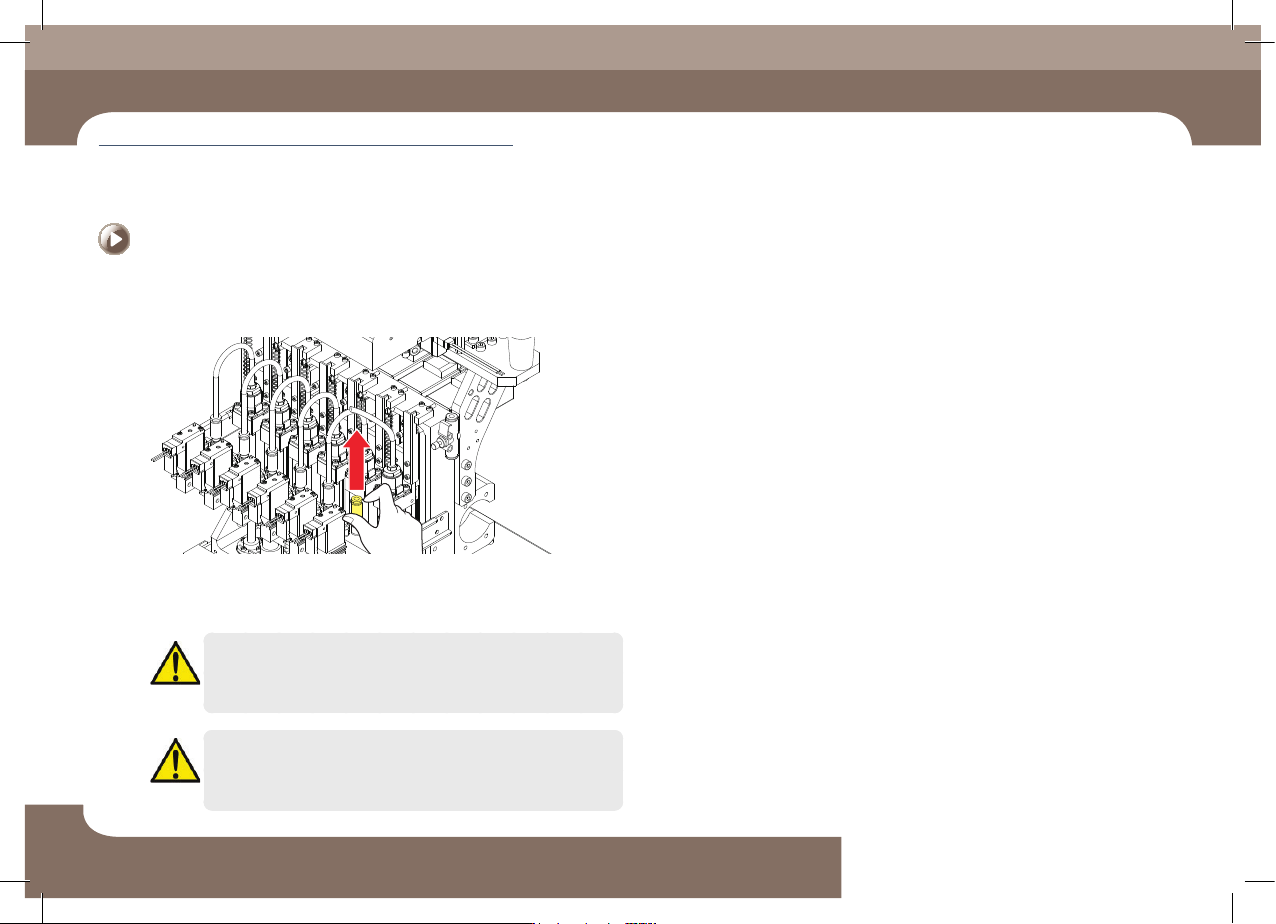

Step 5.
Replace the vacuum filter
Step 6.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
Caution
Check the vacuum filter every week and replace it within at least 6
months to ensure the vacuum for part pickup is generated properly.
Caution
It is recommended that the solenoid valve, which is a consumable
product, is replaced every two years to ensure stable operation.
