W ee kly Inspe ction Chap ter 4 Multi -Func tional Placer ST M1-S M ain ten an ce Ha nd bo ok 4 -7 Replace the Detach vacuum ejector filter Measures Step 1. Pre ss th e 'STO P' a nd 'R ESE T' b ut ton…

Weekly Inspection

Chapter 4

Multi-Functional Placer

STM1-S Maintenance Handbook

4-6

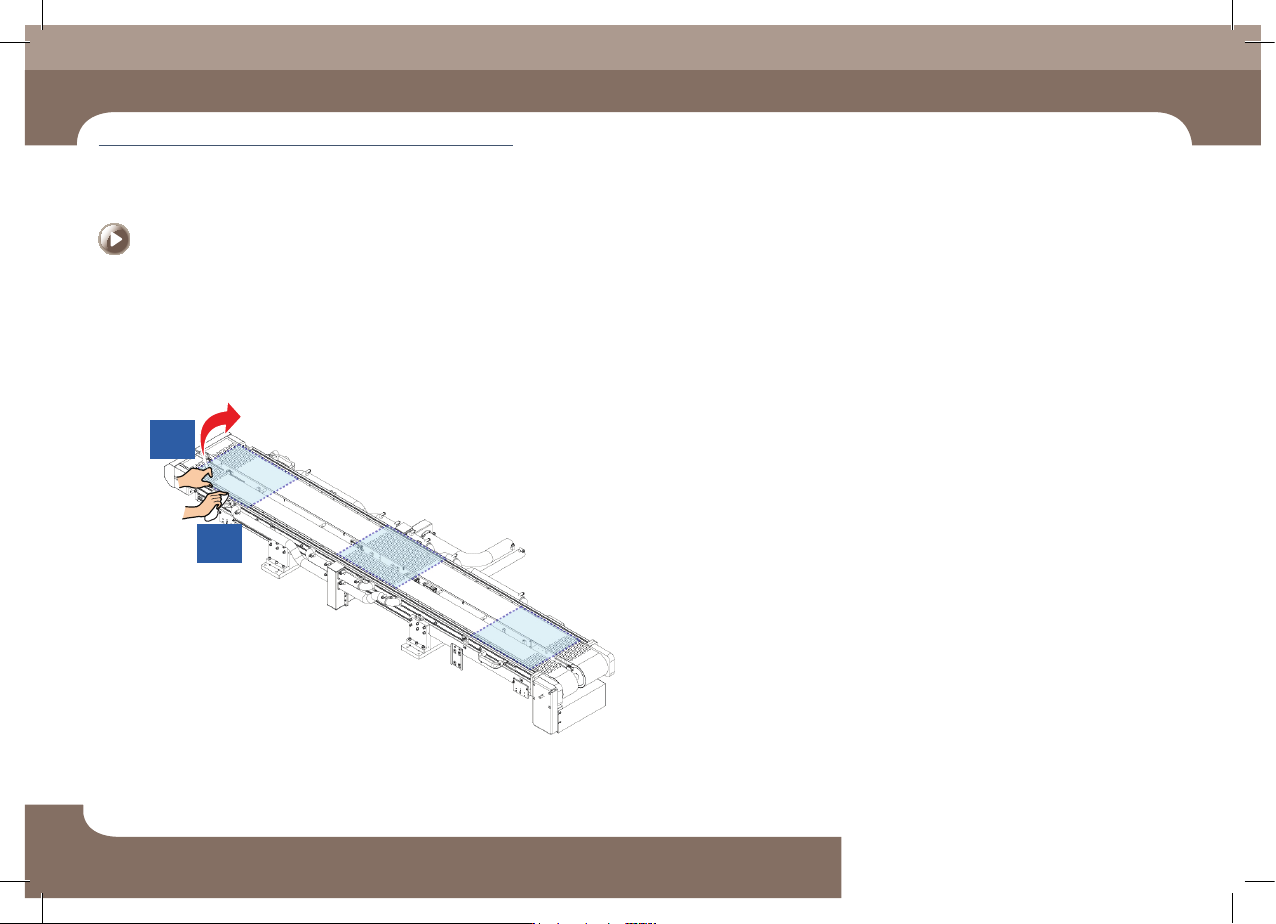

Cleaning the conveyor chamber

Weekly Inspection

Step 4.

After the handler stops, a door will open.

Step 5.

While holding the belt up, clean the Chamber floor with

a cloth.

Weekly Inspection

Chapter 4

Multi-Functional Placer

STM1-S Maintenance Handbook

4-7

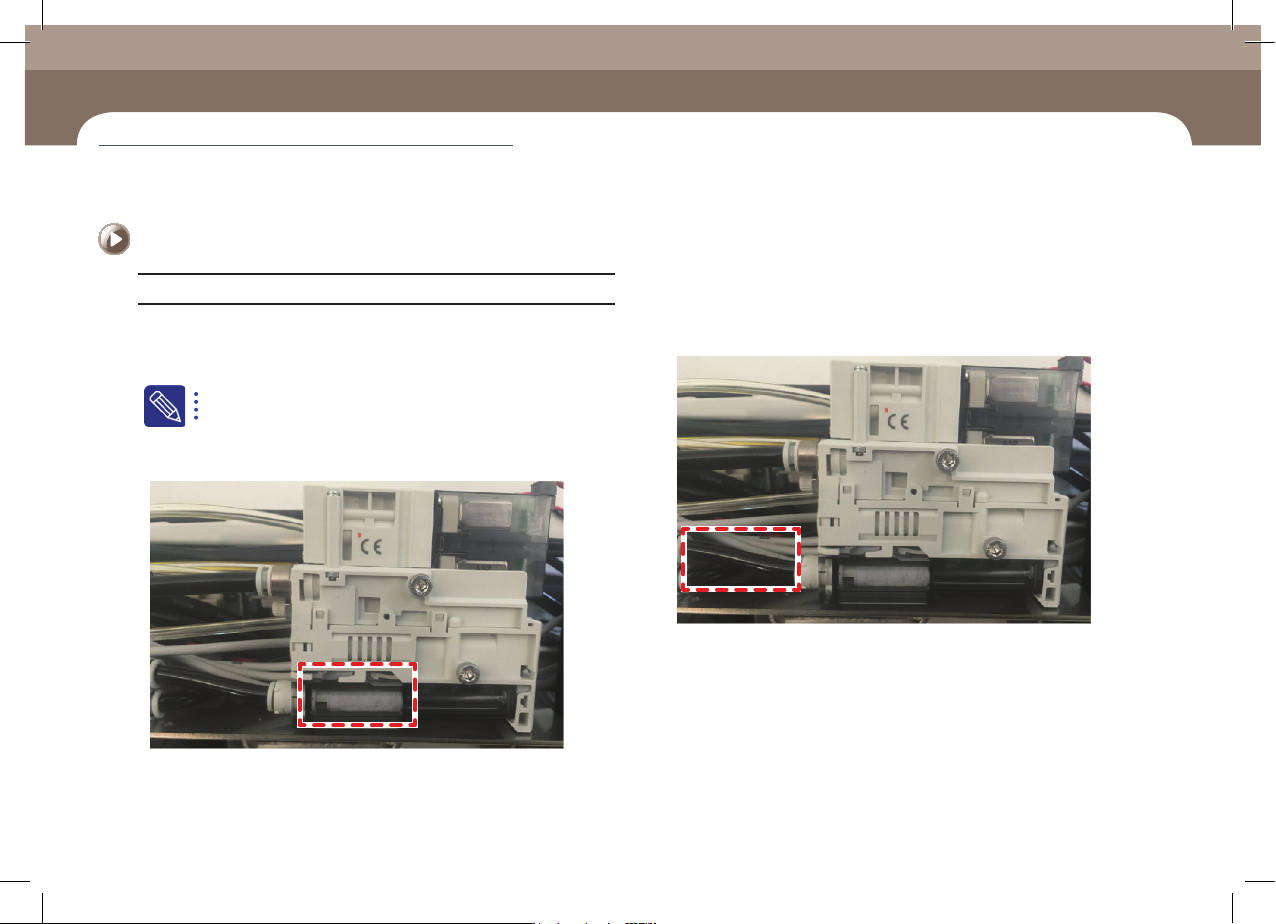

Replace the Detach vacuum ejector filter

Measures

Step 1.

Press the 'STOP' and 'RESET' buttons in order after

pressing the 'EMG' button on the OP panel to stop

operation.

For more details, refer to "How to perform emergency stop" on page

1-2.

Step 2.

After the Detach door is opened, check whether a filter

of the vacuum ejector is contaminated.

Step 3.

If a filter is contaminated, detach the tube that is

connected to the vacuum ejector.

Replace the Detach vacuum ejector filter

(Time required: 10min / No. W-4)

Weekly Inspection

Chapter 4

Multi-Functional Placer

STM1-S Maintenance Handbook

4-8

Replace the Detach vacuum ejector filter

Weekly Inspection

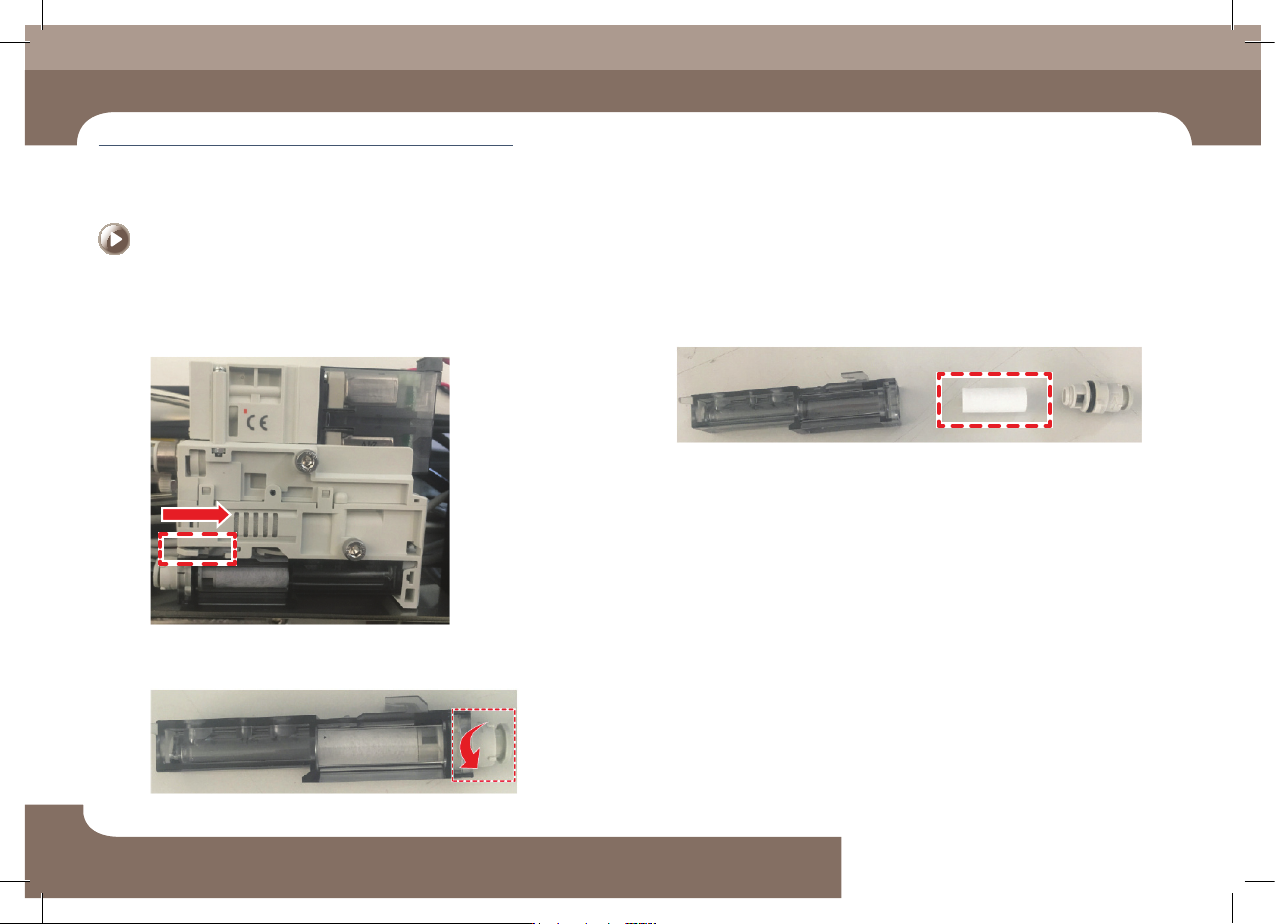

Step 4.

Push a lock button of the filter module, and separate the

filter module.

Step 5.

Rotate a port part of the filter module, and detach the

filter.

Step 6.

Replace the filter with a new one.
