Weekly Inspection
Chapter 4
Multi-Functional Placer
STM1-S Maintenance Handbook
4-7
Replace the Detach vacuum ejector filter
Measures
Step 1.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 2.
After the Detach door is opened, check whether a filter
of the vacuum ejector is contaminated.
Step 3.
If a filter is contaminated, detach the tube that is
connected to the vacuum ejector.
Replace the Detach vacuum ejector filter
(Time required: 10min / No. W-4)
Weekly Inspection
Chapter 4
Multi-Functional Placer
STM1-S Maintenance Handbook
4-8
Replace the Detach vacuum ejector filter
Weekly Inspection
Step 4.
Push a lock button of the filter module, and separate the
filter module.
Step 5.
Rotate a port part of the filter module, and detach the
filter.
Step 6.
Replace the filter with a new one.
Monthly Inspection
Chapter 5
Multi-Functional Placer
STM1-S Maintenance Handbook
5-1

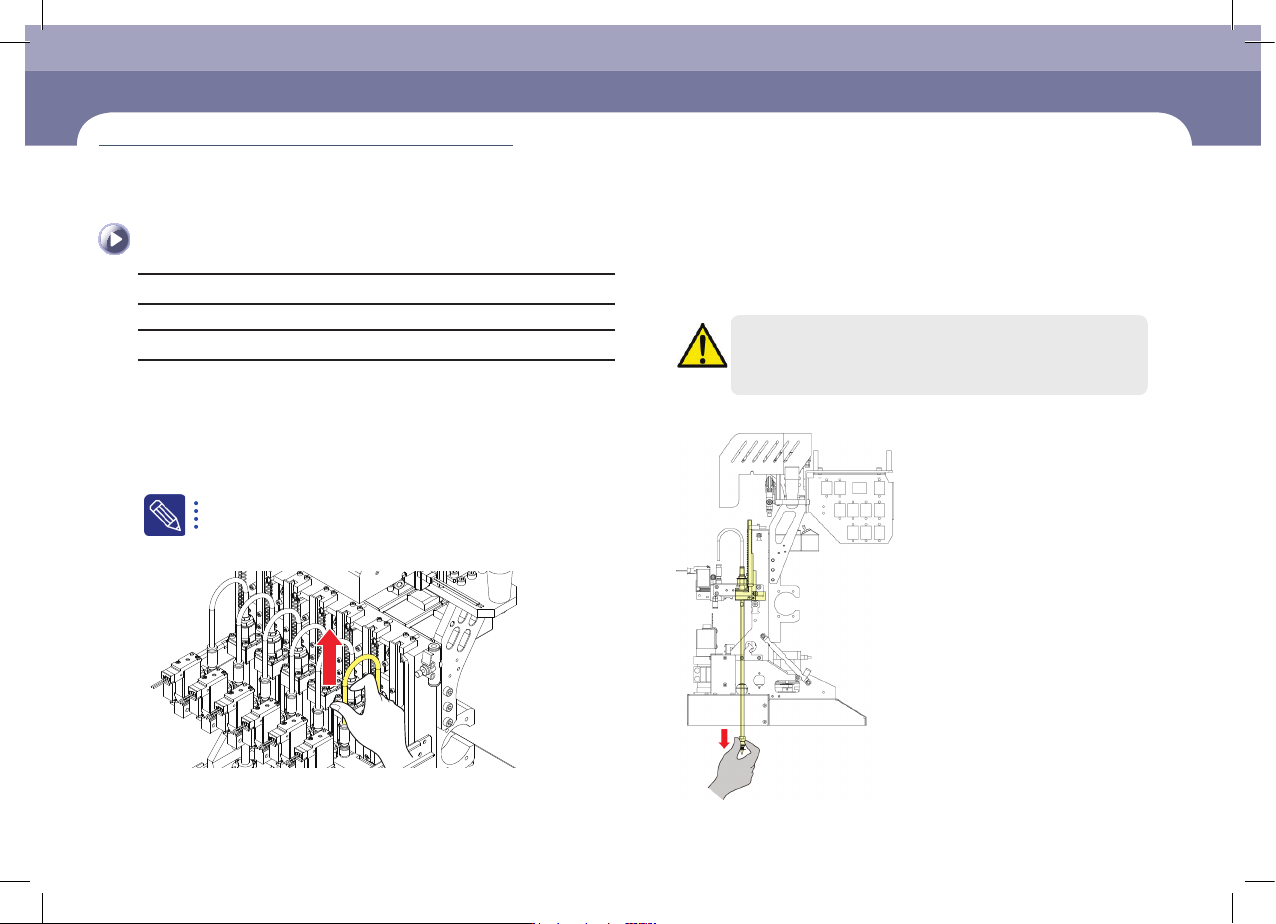

Cleaning the Head Spindle
Tool for Maintenance
Cloth, air gun
Measures
Step 1.
Move the X Frame to front by referring to "Forward
movement of the X-frame" on page 1-3.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.
Remove the tube from the Vacuum Filter
Caution
Check the assembled state of the Vacuum Filter inspection or after
the exchange after the Filter and the Tube.
Step 4.
Remove the nozzle
Cleaning the Head Spindle
(Time required: 30min / No. M-1)
Chapter 5
Monthly Inspection
