Cleaning The Ionizer Nozzle
Yearly Inspection and Appendix
Step 3.
Using a separate jig, turn the nozzle counterclockwise
and replace it by turning it clockwise
Ionizer Nozzle
Corresponding fixture
Ionizer Nozzle
Caution
If the power supply is not cut off, an electric shock may occur due
to the high voltage of the ionizer.
Yearly Inspection and Appendix
Chapter 6
Multi-Functional Placer
STM1-S Maintenance Handbook
6-3
Replacing the Fuse
Replacing the Fuse
Tool for Maintenance
(+) driver
Measures
Step 1.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 2.
Turn off the power supply to the machinet
For more details, refer to "How to turn off the power supply" on
page 1-1.
Step 3.
Separate Ring blower from the equipment.
(Time required: 15min / No. E-1)
Step 4.
Remove the rear cover of the machine using a crosshead
screwdriver.
Yearly Inspection and Appendix
Chapter 6
Multi-Functional Placer
STM1-S Maintenance Handbook
6-4
Replacing the Fuse
Yearly Inspection and Appendix

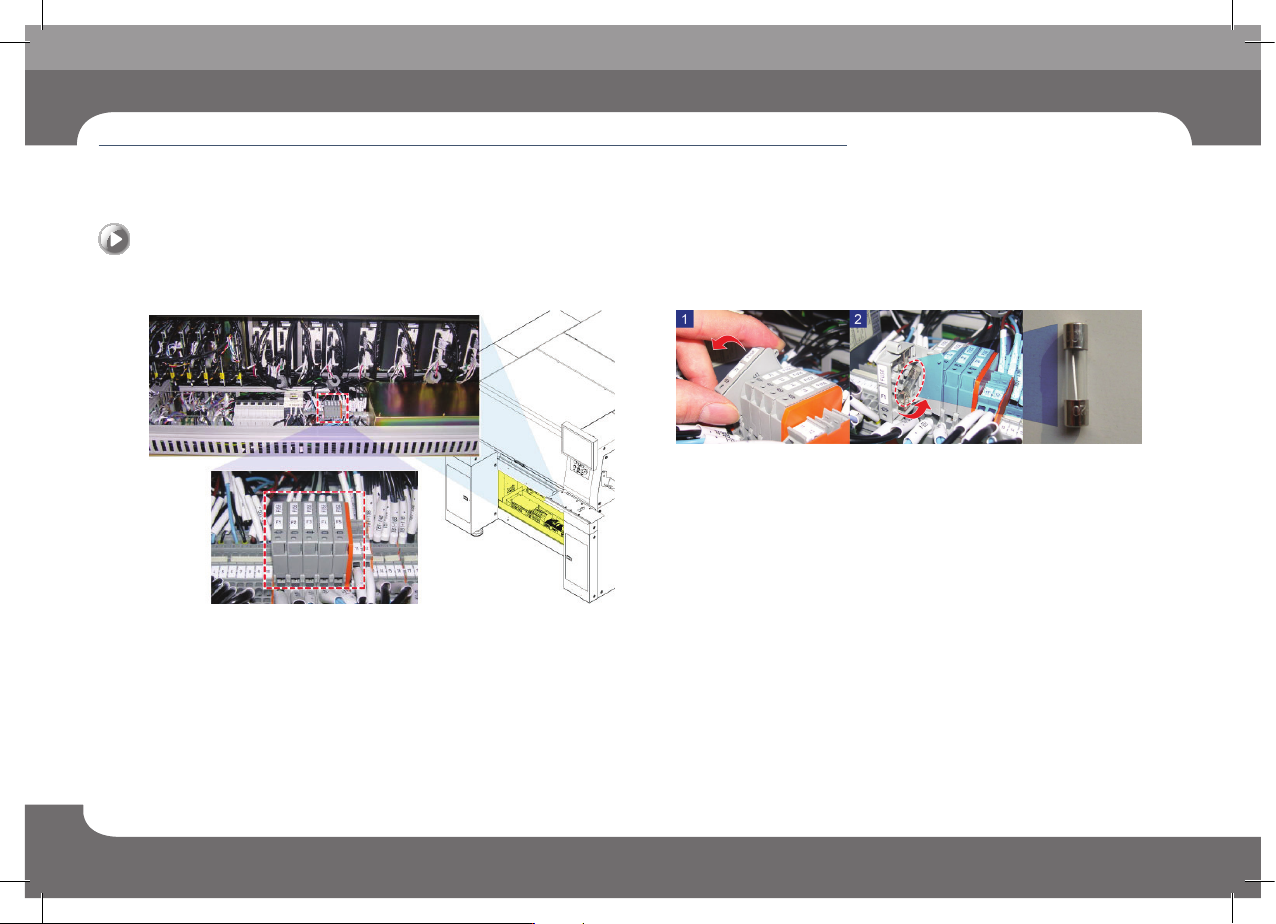

Step 5.
Check the position of the fuse inside the terminal block.
Step 6.
Remove the fuse and replace it with a new one.
