Yearly Inspection and Appendix
Chapter 6
Multi-Functional Placer
STM1-S Maintenance Handbook
6-5
Replace the Ring blower fuse
Replace the Ring blower fuse
Tool for Maintenance
(+) driver, Fuse (200V / 2A)
Measures
Step 1.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 2.
Turn off the power supply to the machinet
For more details, refer to "How to turn off the power supply" on
page 1-1.

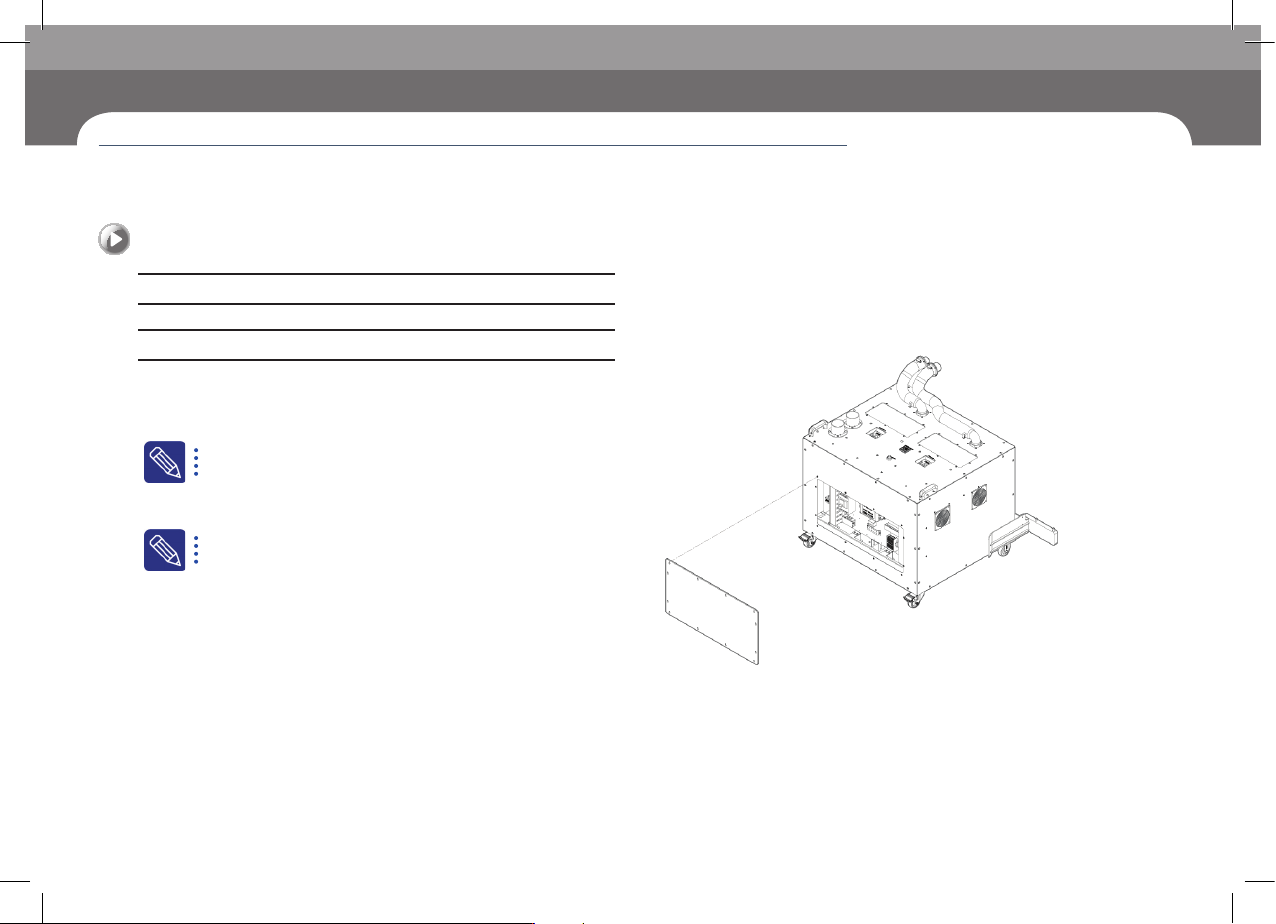

Step 3.
Use a (+) screwdriver to remove the Ring blower cover
at the back of the equipment.
(Time required: 15min / No. E-2)
Yearly Inspection and Appendix
Chapter 6
Multi-Functional Placer
STM1-S Maintenance Handbook
6-6
Replace the Ring blower fuse
Yearly Inspection and Appendix

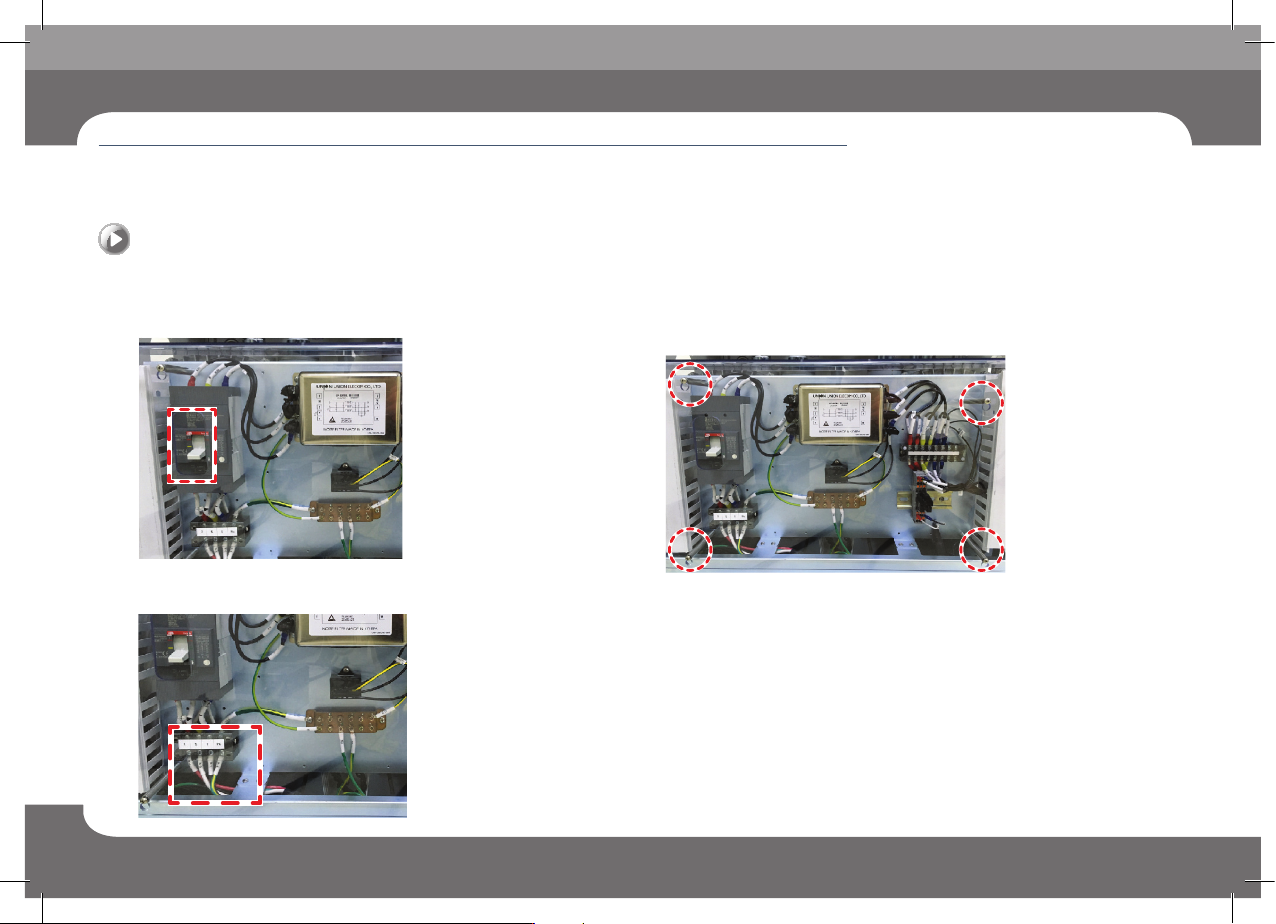

Step 4.
Shut off the power supply to the MCCB.
Step 5.
Shut off the power supply to the main power source
cable that is connected to MCCB.
Step 6.
Use a (+) screwdriver to remove the protection cover
from the power panel.
Yearly Inspection and Appendix
Chapter 6
Multi-Functional Placer
STM1-S Maintenance Handbook
6-7
Replace the Ring blower fuse

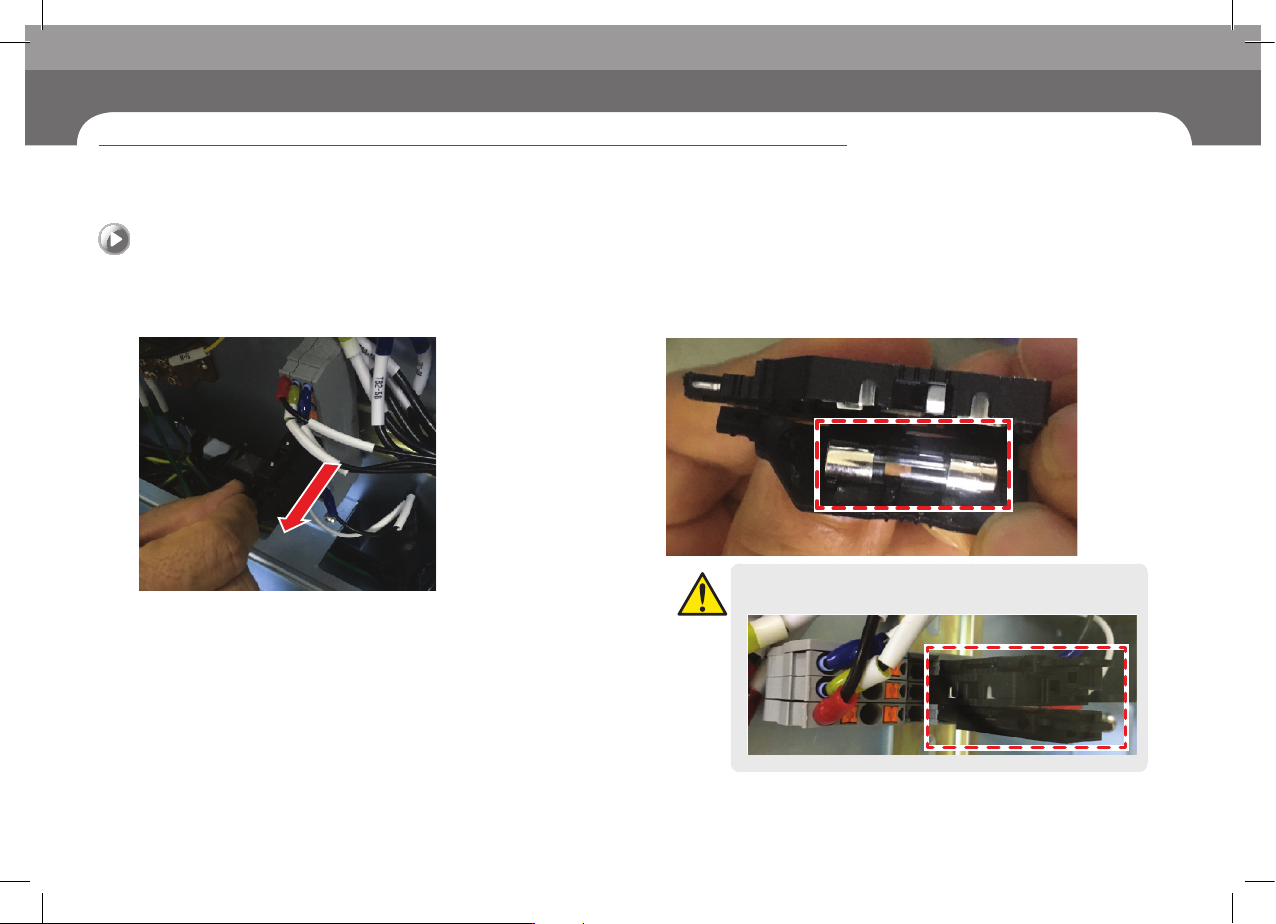

Step 7.
Pull the Fuse case to detach.
Step 8.
Replace the fuse with a new one.
Caution
When assembling the Fuse case, be careful to ensure the polarity
is correct.
