Please SELECT the type of devi ce to be added . ( 請選擇新增 2D 零件型式 ) Pr ess EXIT to quit. ( 按 EXIT 離開 ) 選擇 QF P 零件時 Move the trackba ll pointer to the Area ( 移動軌跡球 , 按 SELECT 點選到 PC Whe r e the dev ice is to be ad ded…

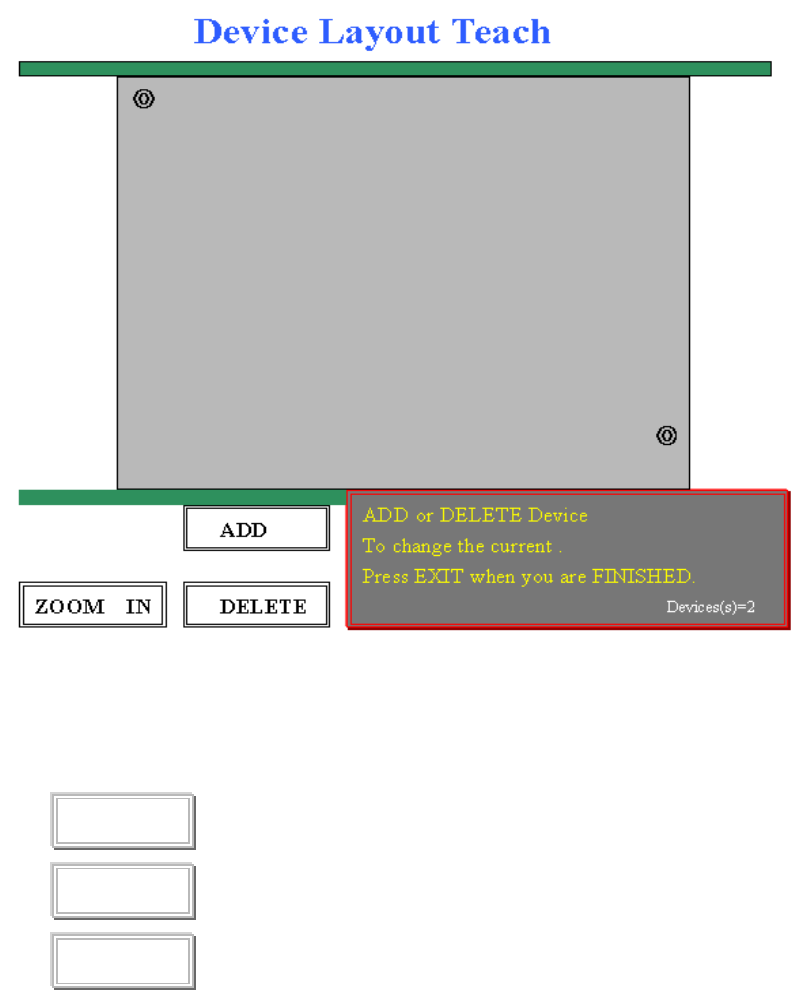

ADD or DELETE Device(新增或刪除,所指 2D 零件點位置或變更目前位置)

To change the current .

Press EXIT when you are FINISHED. (當你已完成 Device Layout 按 EXIT)

增加一個 2D 檢查點

刪除一個 2D 檢查點

將點選到位置放大與縮小

你按 ADD 之後，出現下列訊息視窗：

ADD

DELETE

ZOOM IN

锡膏印刷机 www.smt11.cn

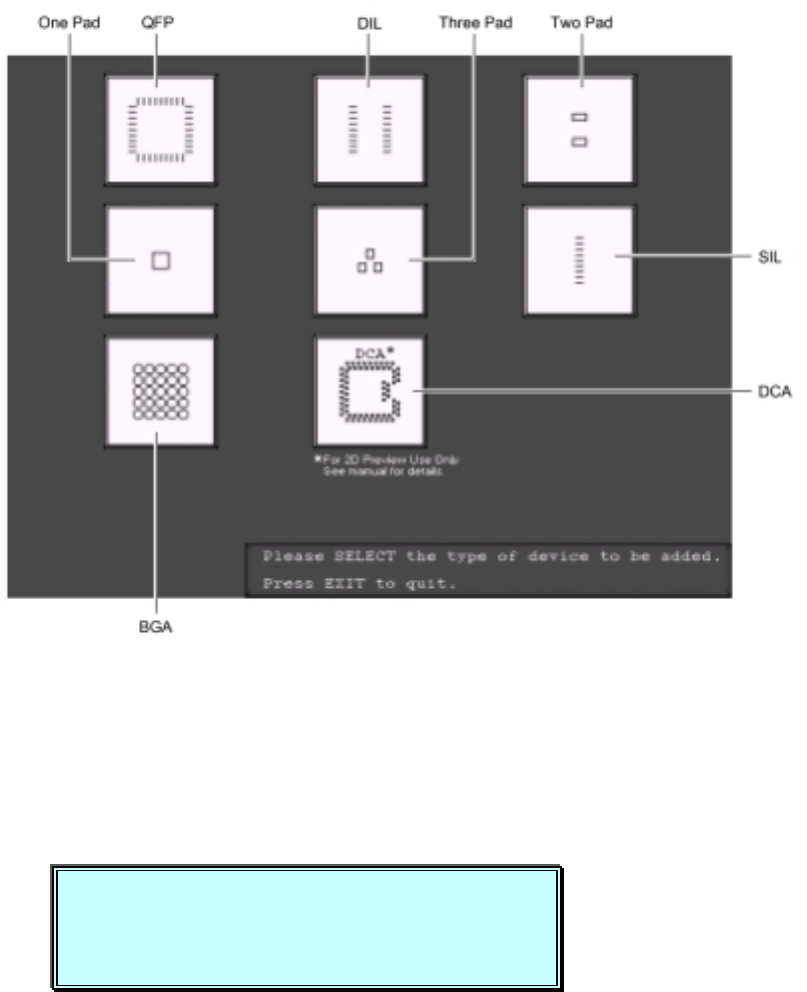

Please SELECT the type of device to be added . (請選擇新增 2D 零件型式)

Press EXIT to quit. (按 EXIT 離開)

選擇 QFP 零件時

Move the trackball pointer to the Area(移動軌跡球,按 SELECT 點選到 PC

Where the device is to be added and 板上 QFP 零件位置)

Press SELECT

按 SELECT 之後,出現下列訊息視窗畫面

Move the trackball pointer to the Area

Where the device is to be added and

Press SELECT

锡膏印刷机 www.smt11.cn

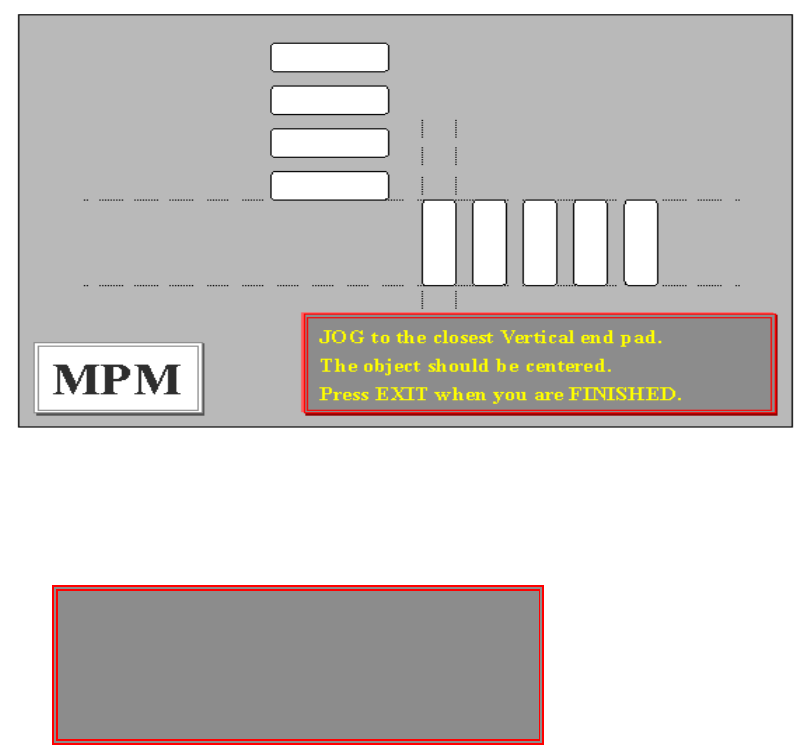

JOG to the closest Vertical end pad. (移動虛線,選擇 QFP 第一點垂直

The object should be centered. PAD 點)

Press when you are FINISHED. (按 EXIT 完成)

Please DEFINE the END pad of this device. (將 PAD 點前後框起來)

Press NEXT to alternate between POSITION(按 NEXT 調整框位置、尺寸)

Adjust mode and size adjust mode.

Press EXIT when you are FINISHED. (按 EXIT 完成)

※ 按 EXIT 之後,影像視覺系統自動搜尋 QFP

4.Teach ID 做辨識鋼板身分

※ 當有兩片一樣機種鋼板,一種為有IC 零件,而另一種無 IC 零件,先做辨識鋼板

身分以防放錯料。

Please DEFINE the END pad of this device.

Press NEXT to alternate between POSITION

Adjust mode and size adjust mode.

Press EXIT when you are FINISHED.
